0A39

0A39 - satellite radio

Open circuit in satellite antenna

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable not connected to satellite antenna
- Coaxial cable not connected to satellite radio
- Coaxial cable faulty
- Satellite/terrestrial antenna faulty
- Satellite radio faulty

Affected pins

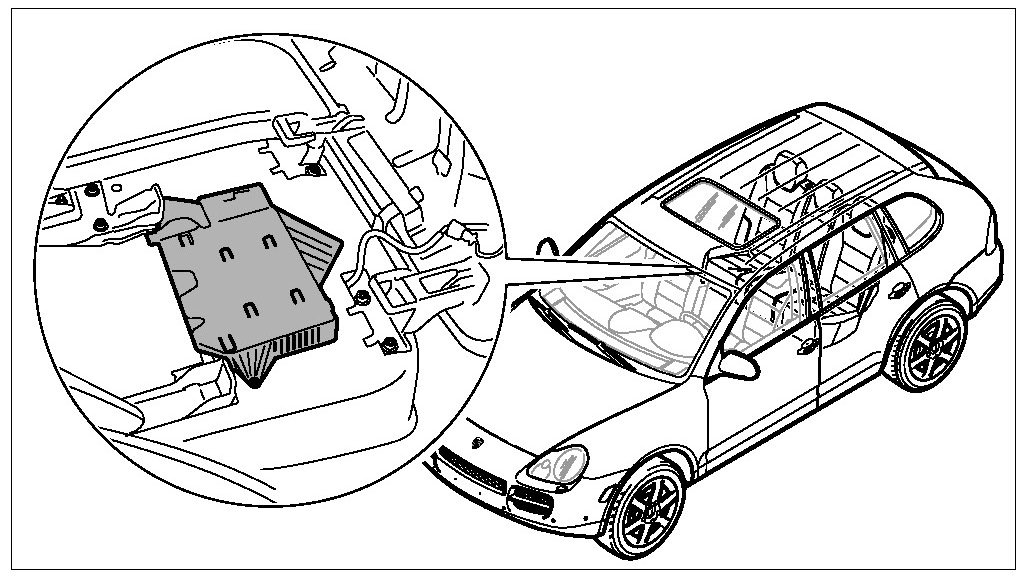

Satellite radio - green antenna socket
