0A49

0A49 - satellite radio

Open circuit in terrestrial antenna

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable not connected to terrestrial antenna
- Coaxial cable not connected to satellite radio
- Coaxial cable faulty
- Satellite/terrestrial antenna faulty
- Satellite radio faulty

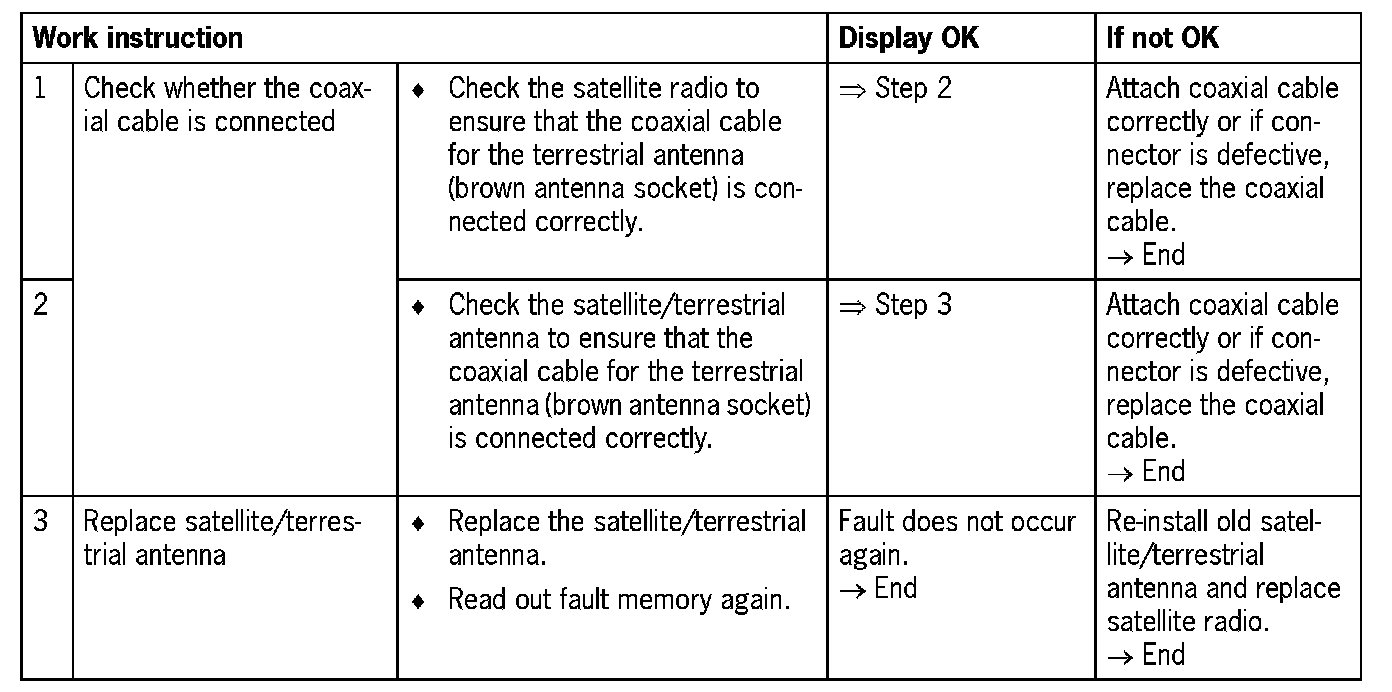

Affected pins
Satellite radio - brown antenna socket
