TV Tuner: 8010

8010 - TV tuner

Power supply - limit value not reached

Diagnostic conditions
- Ignition switched on
- PCM2 switched on

Possible cause of fault
- Power supply of 9 V not reached for more than 30 seconds

Affected pins
Power supply - TV tuner plug, pin 2
Ground - TV tuner plug, pin 1

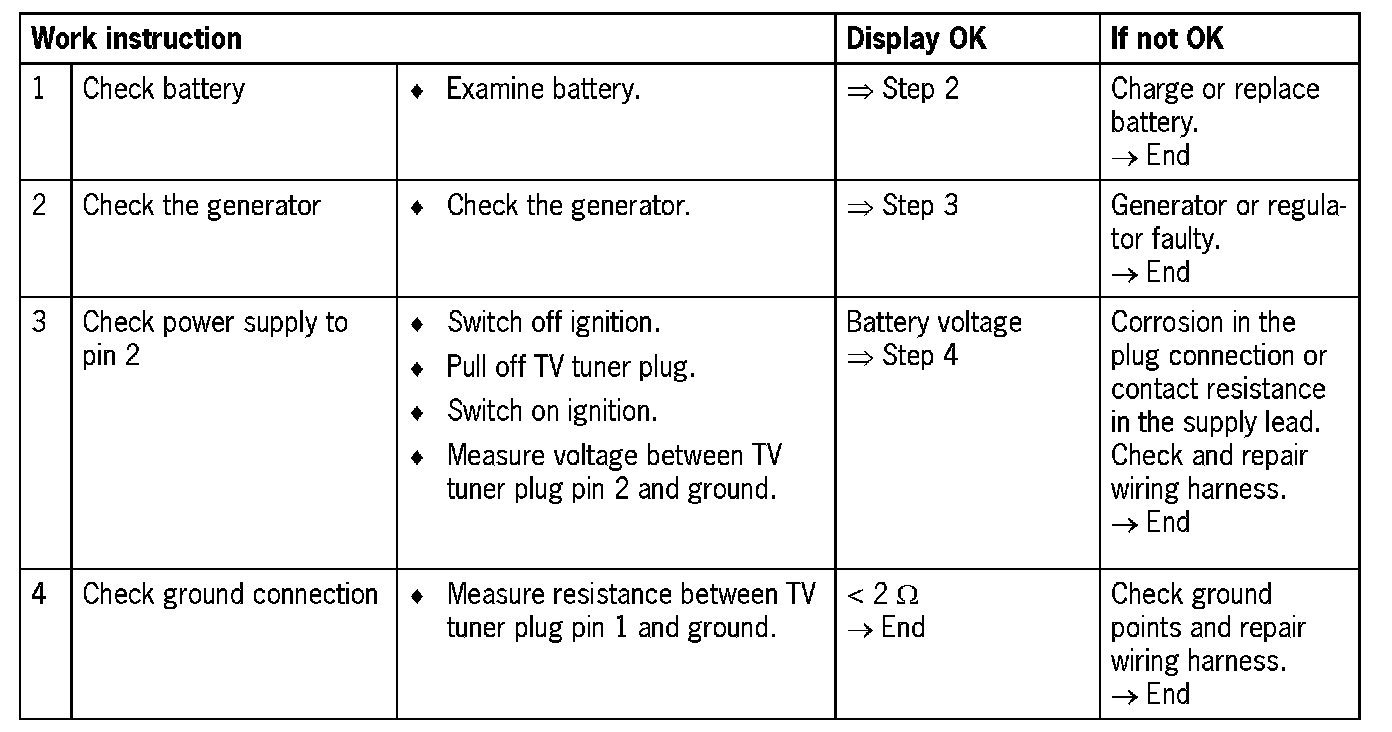

Diagnosis/troubleshooting
