TV Tuner: 8400
8400 - TV tunerTV tuner temperature
NOTE: The TV tuner has its own protection mechanism. If the temperature inside the vehicle is too high, the TV tuner switches off automatically. As a result, the TV function in the PSM2 cannot be used again until the temperature drops.
Diagnostic conditions
- Ignition on
- PCM2 on
Possible cause of fault
- Exterior and interior temperature very high
- Operation of heater
Affected pins
-

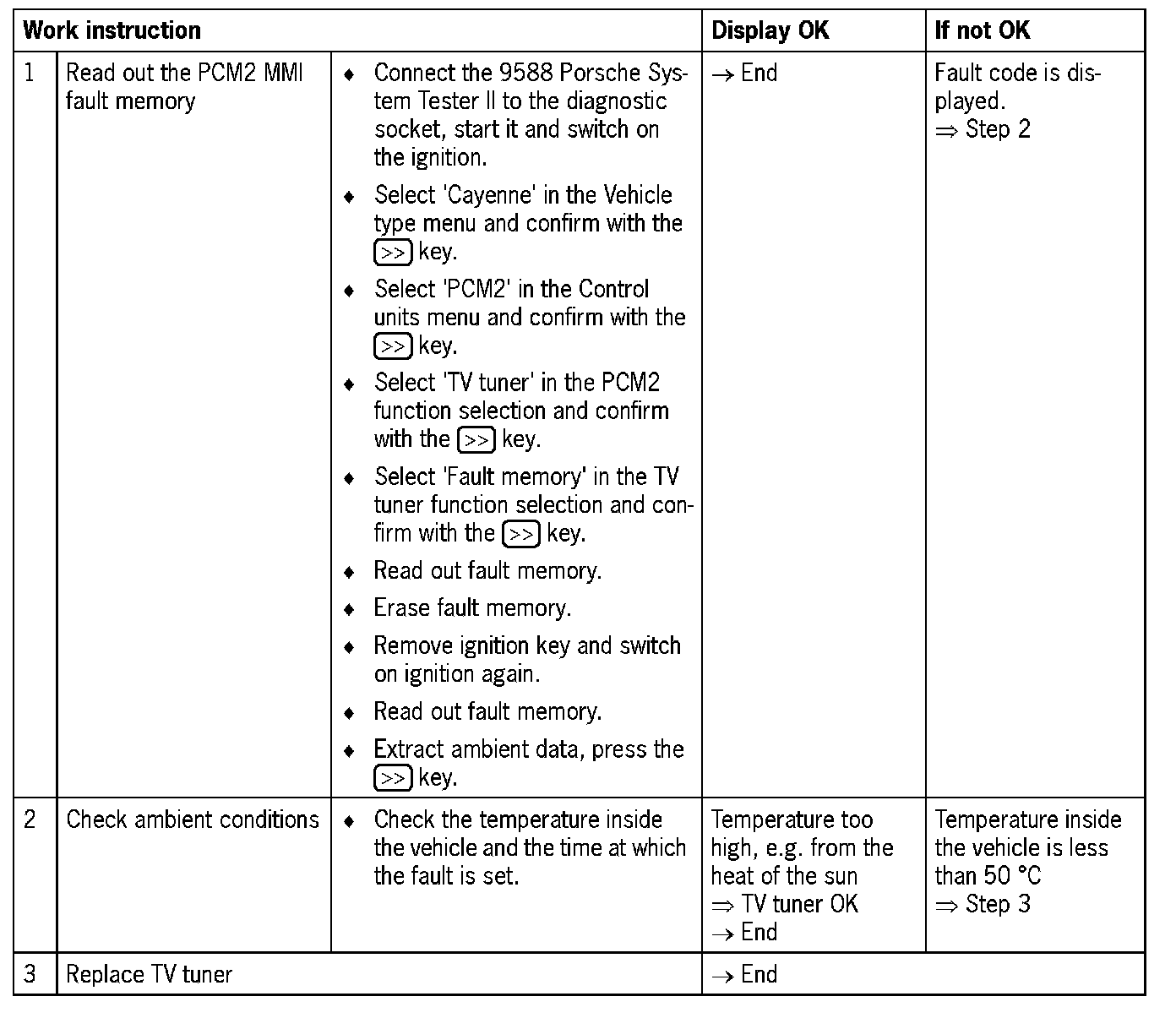

Diagnosis/troubleshooting
