TV Tuner: 8500

8500 - TV tuner

Antenna amplifier at right side window - short circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug.

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no. 4 (blue) faulty
- Antenna amplifier at right side window faulty
- TV tuner faulty

Affected pins
-

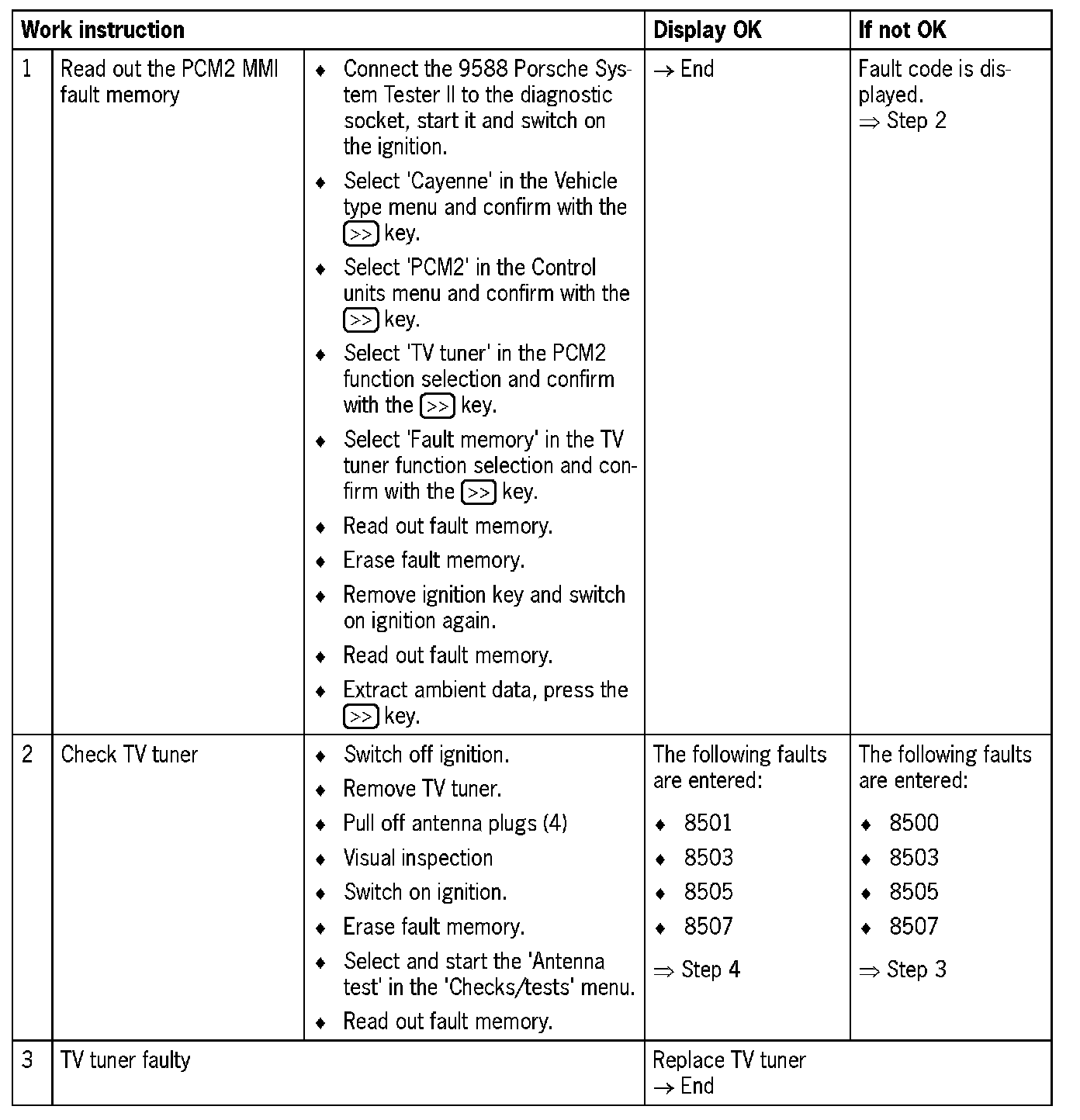

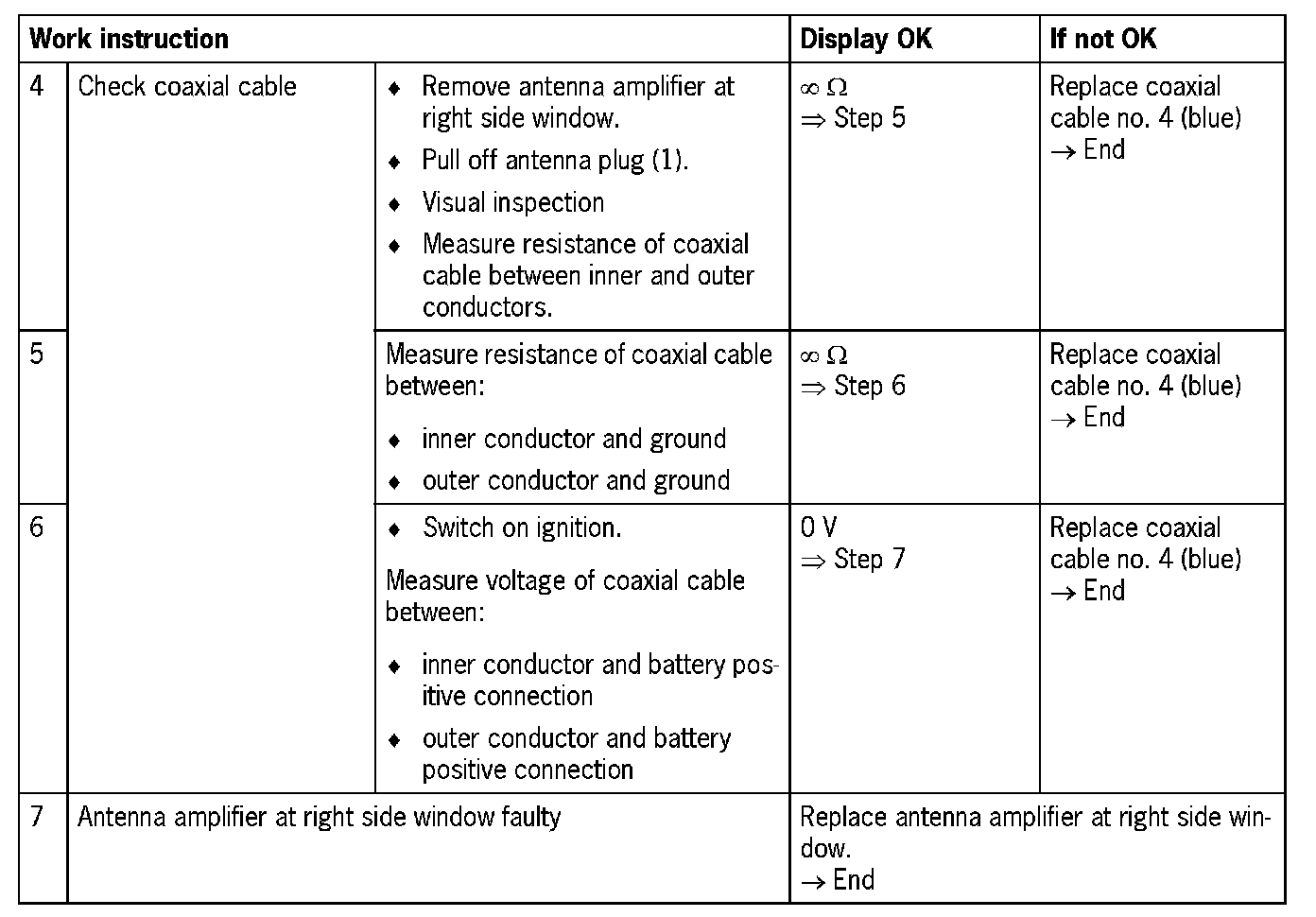

Diagnosis/troubleshooting
