TV Tuner: 8501

8501 - TV tuner

Antenna amplifier at right side window - open circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug.

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no. 4 (blue) not connected to TV tuner or antenna amplifier at right side window
- Coaxial cable no. 4 (blue) faulty
- Antenna amplifier at right side window faulty
- TV tuner faulty

Affected pins
-

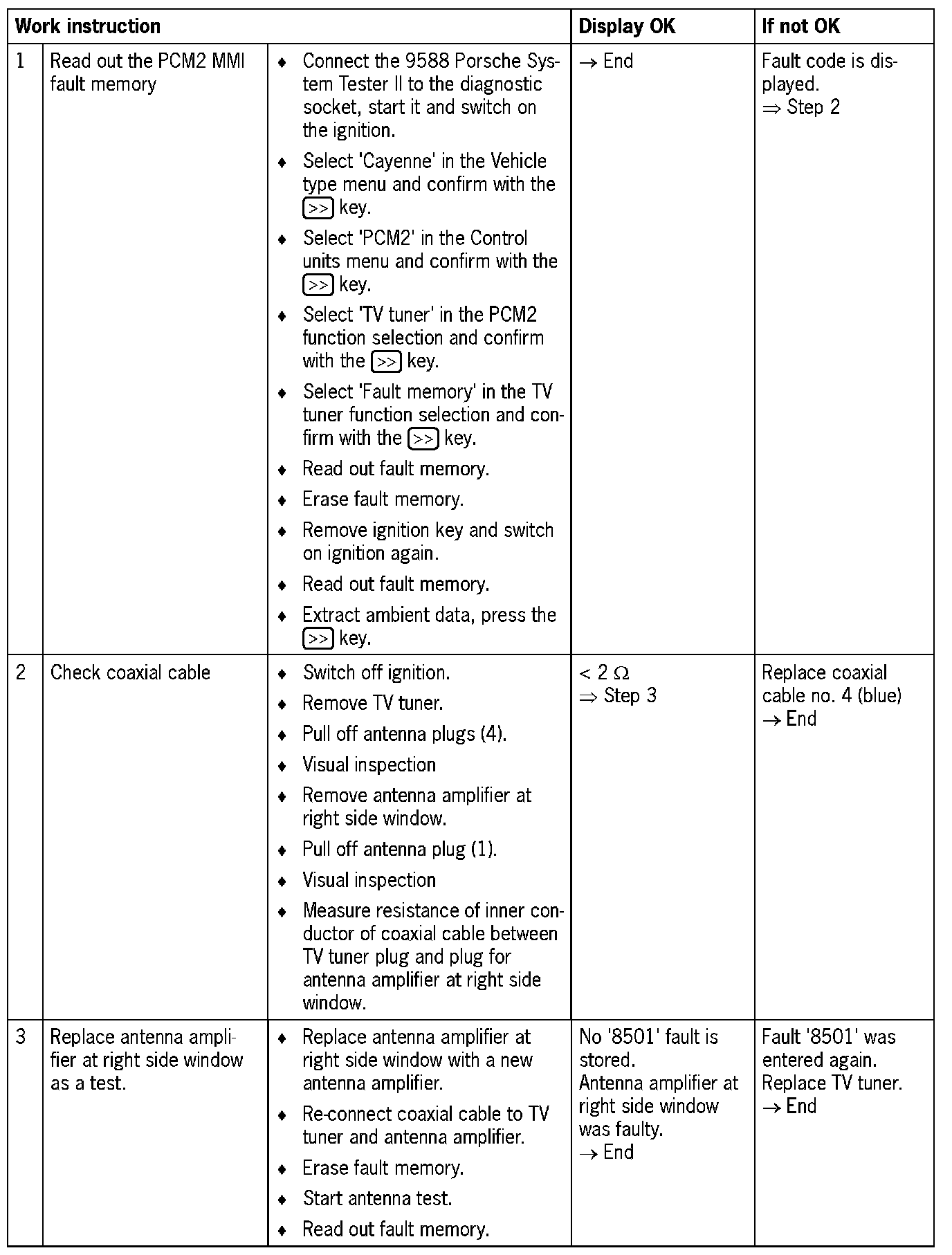

Diagnosis/troubleshooting
