TV Tuner: 8502

8502 - TV tuner

Antenna amplifier at outer rear window - short circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug.

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no. 3 (red) faulty
- Antenna amplifier at outer rear window faulty
- TV tuner faulty

Affected pins
-

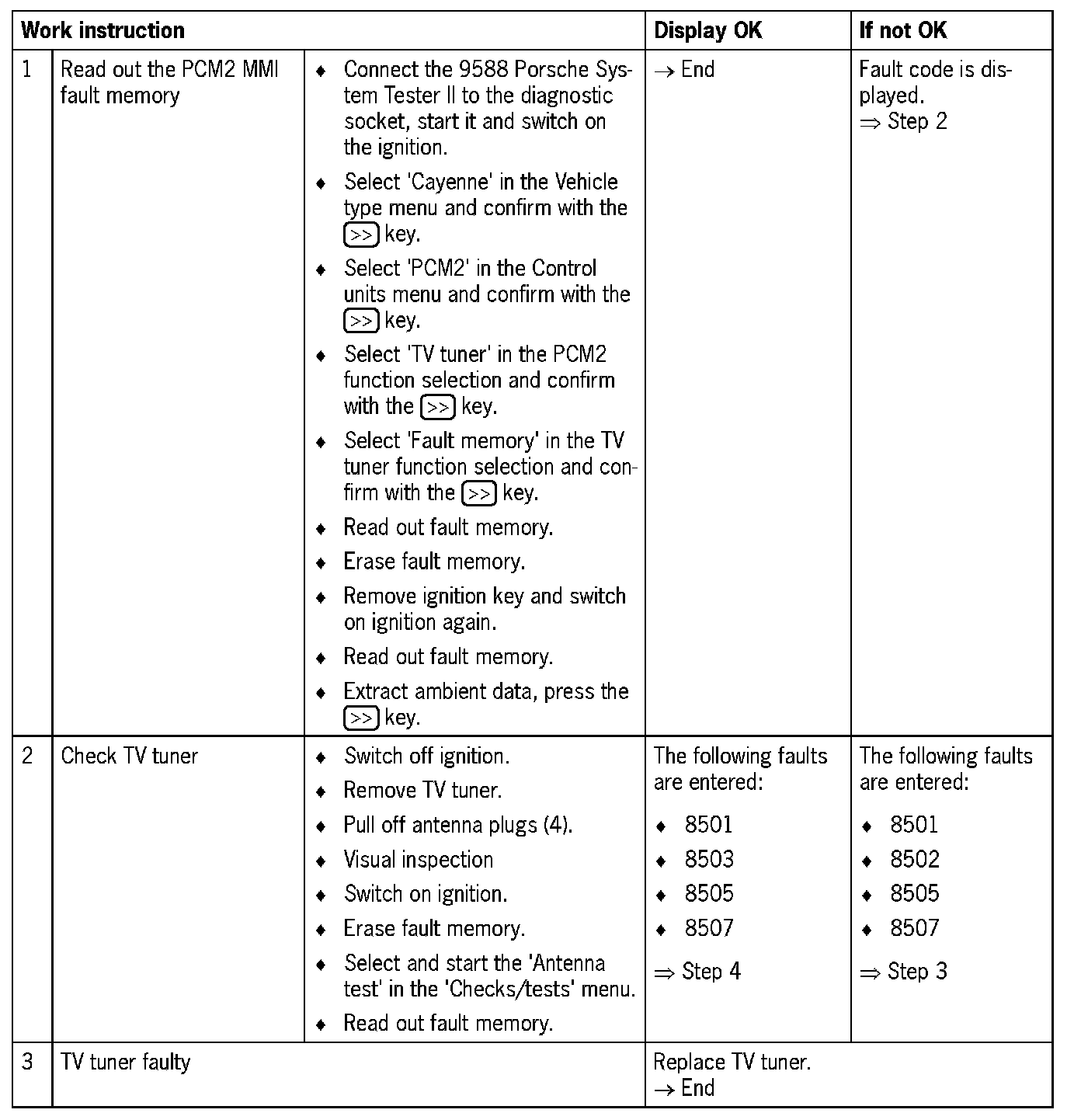

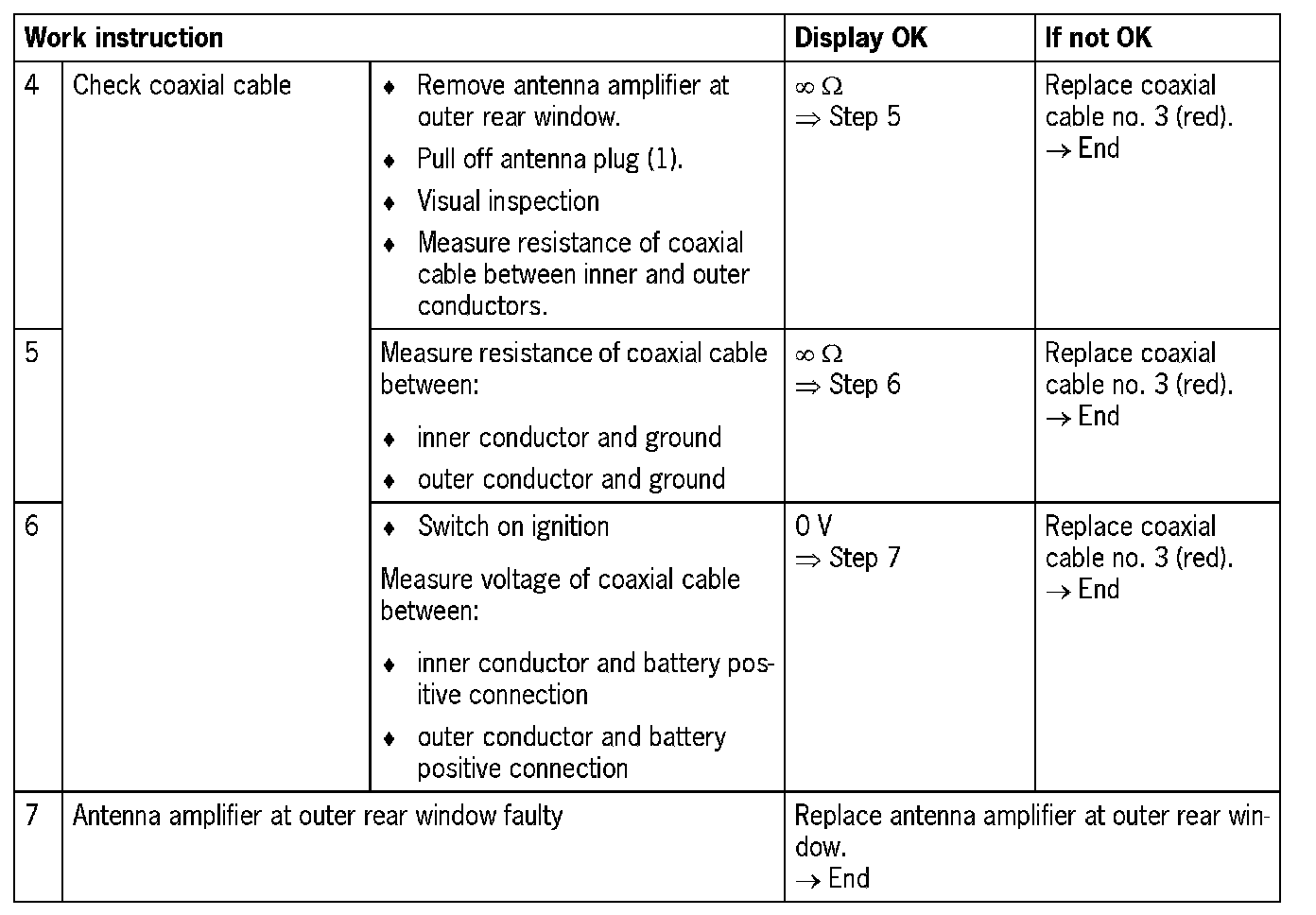

Diagnosis/troubleshooting
