TV Tuner: 8504

8504 - TV tuner

Antenna amplifier at centre rear window - short circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug.

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no. 2 (yellow) faulty
- Antenna amplifier at centre rear window faulty
- TV tuner faulty

Affected pins
-

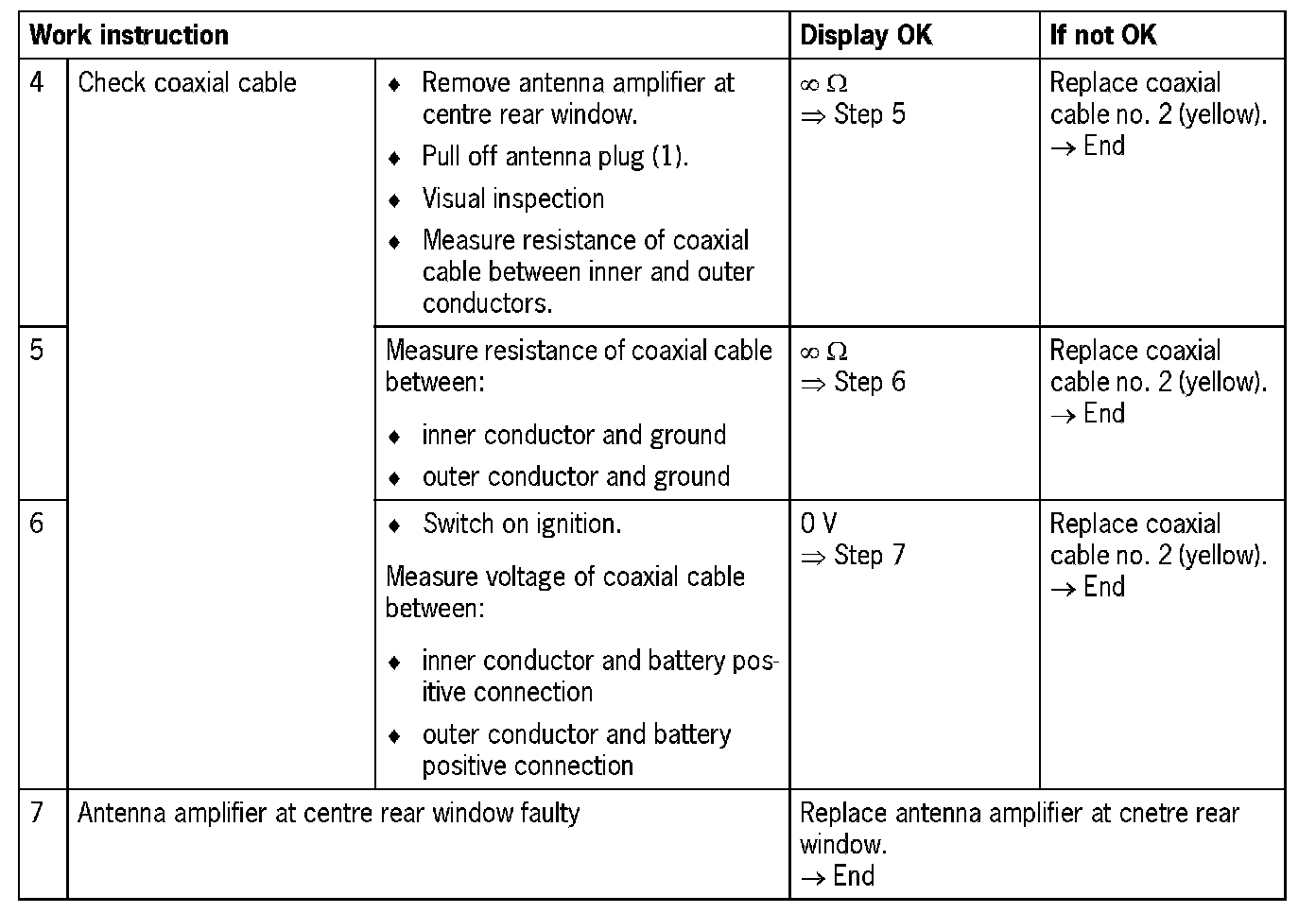

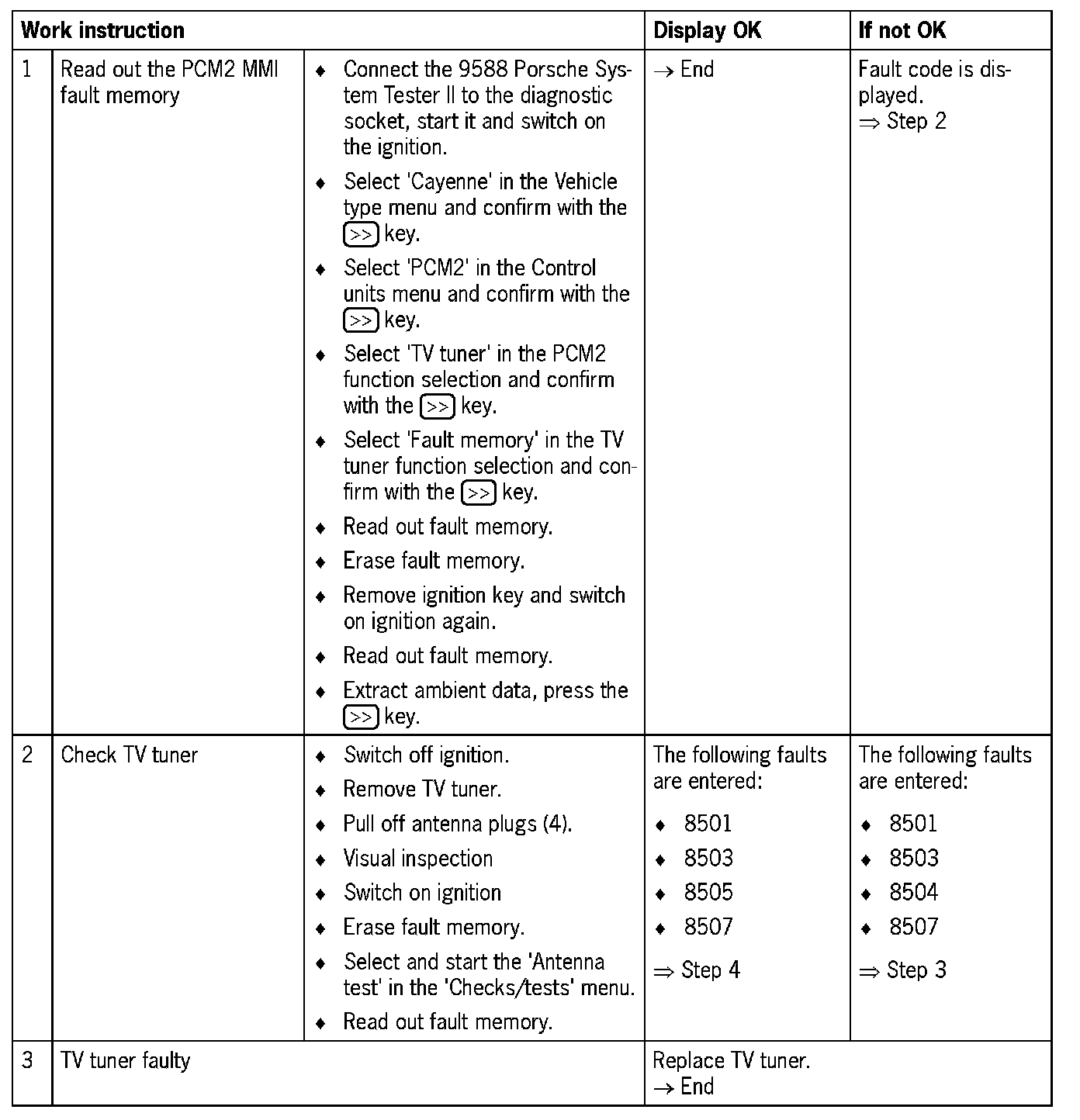

Diagnosis/troubleshooting
