TV Tuner: 8505

8505 - TV tuner

Antenna amplifier at centre rear window - open circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug.

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no. 2 (yellow) not connected to TV tuner or antenna amplifier at centre rear window
- Coaxial cable no. 2 (yellow) faulty
- Antenna amplifier at centre rear window faulty
- TV tuner faulty

Affected pins
-

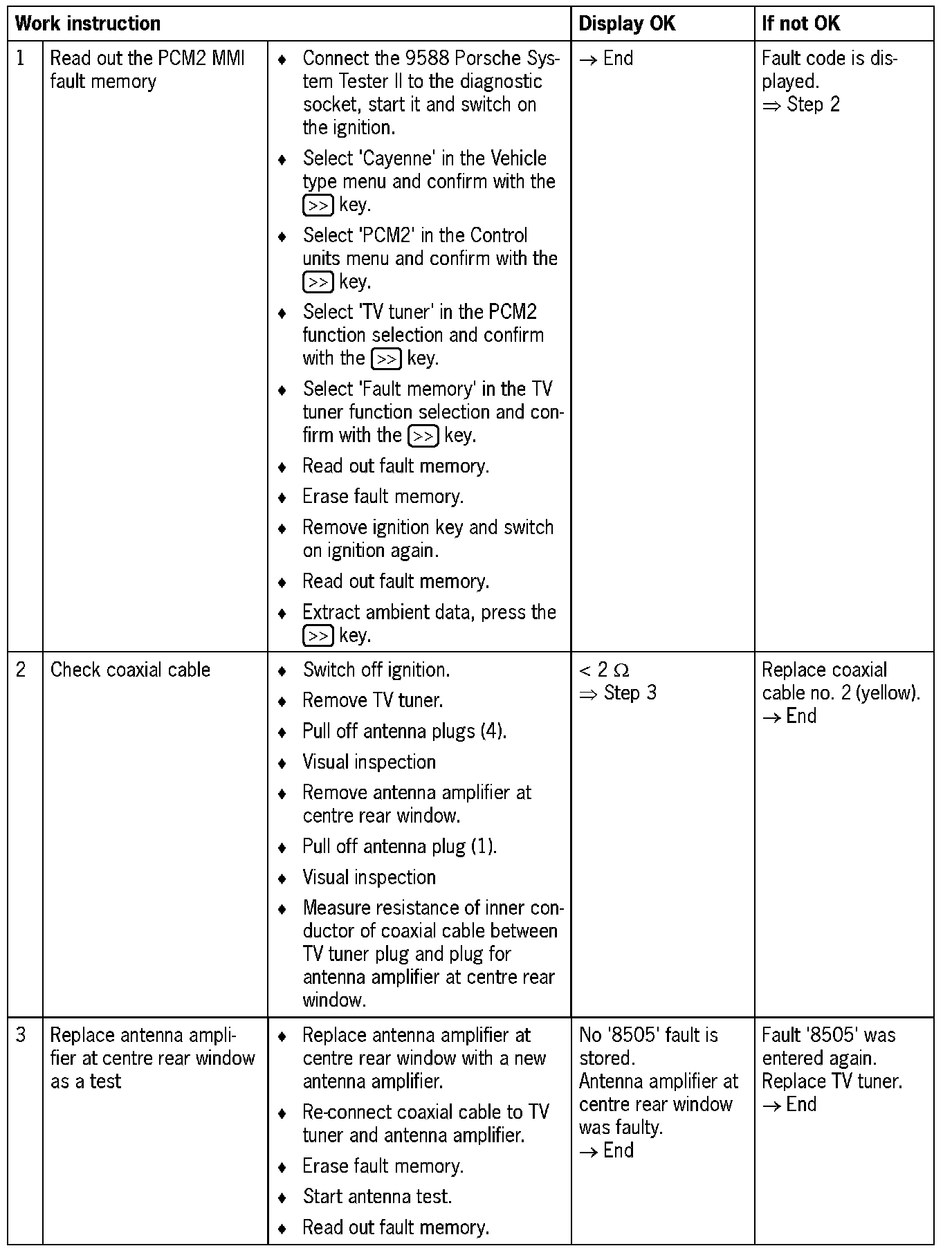

Diagnosis/troubleshooting
