TV Tuner: 8507

8507 - TV tuner

Antenna amplifier at left side window - open circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug.

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no. 1 (black) not connected to TV tuner or antenna amplifier at left side window
- Coaxial cable no. 1 (black) faulty
- Antenna amplifier at left side window faulty
- TV tuner faulty

Affected pins
-

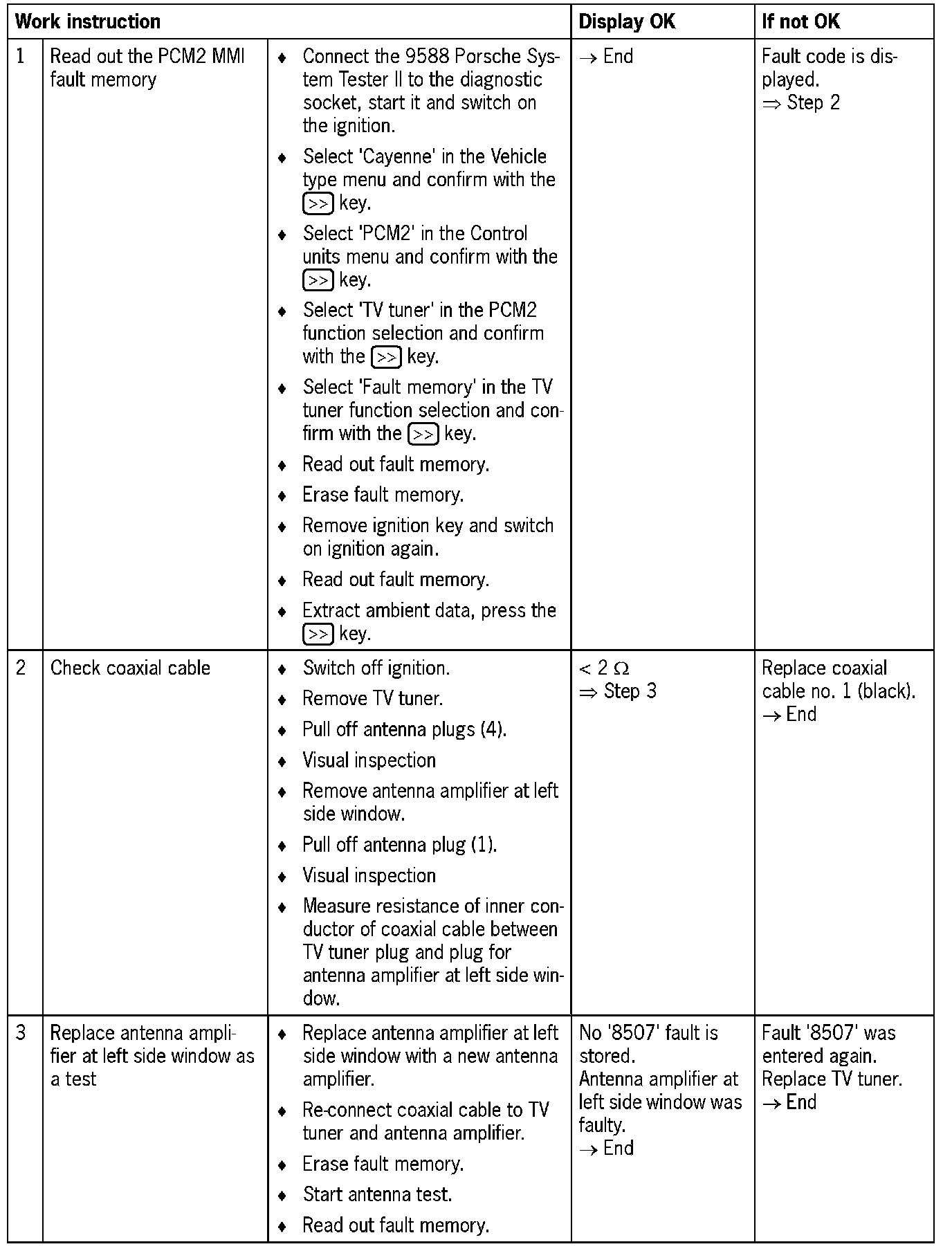

Diagnosis/troubleshooting
