Telephone/Telematics: 9604

9604 Telephone/telematics

GSM antenna fault

Diagnostic conditions
- Ignition on.
- PCM2 on.

Possible cause of fault
- Antenna lead faulty
- GSM antenna faulty

NOTE:
- The MOST optical waveguide is connected to the following control modules:
- PCM2
- Optional external amplifier (BOSE)
- CD changer optional
- Telephone/telematics (only in conjunction with PCM2)

Affected pin
Telephone control module, plug B, pin 1

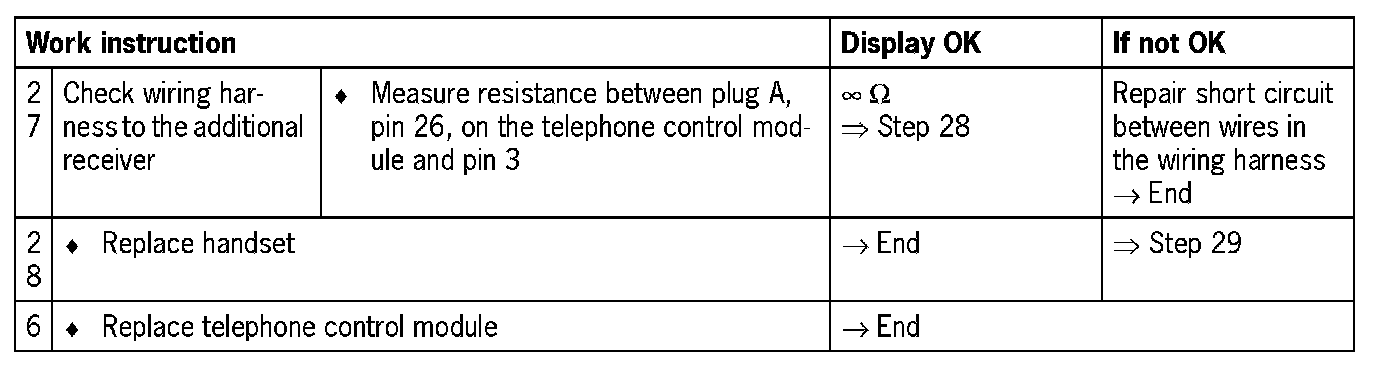

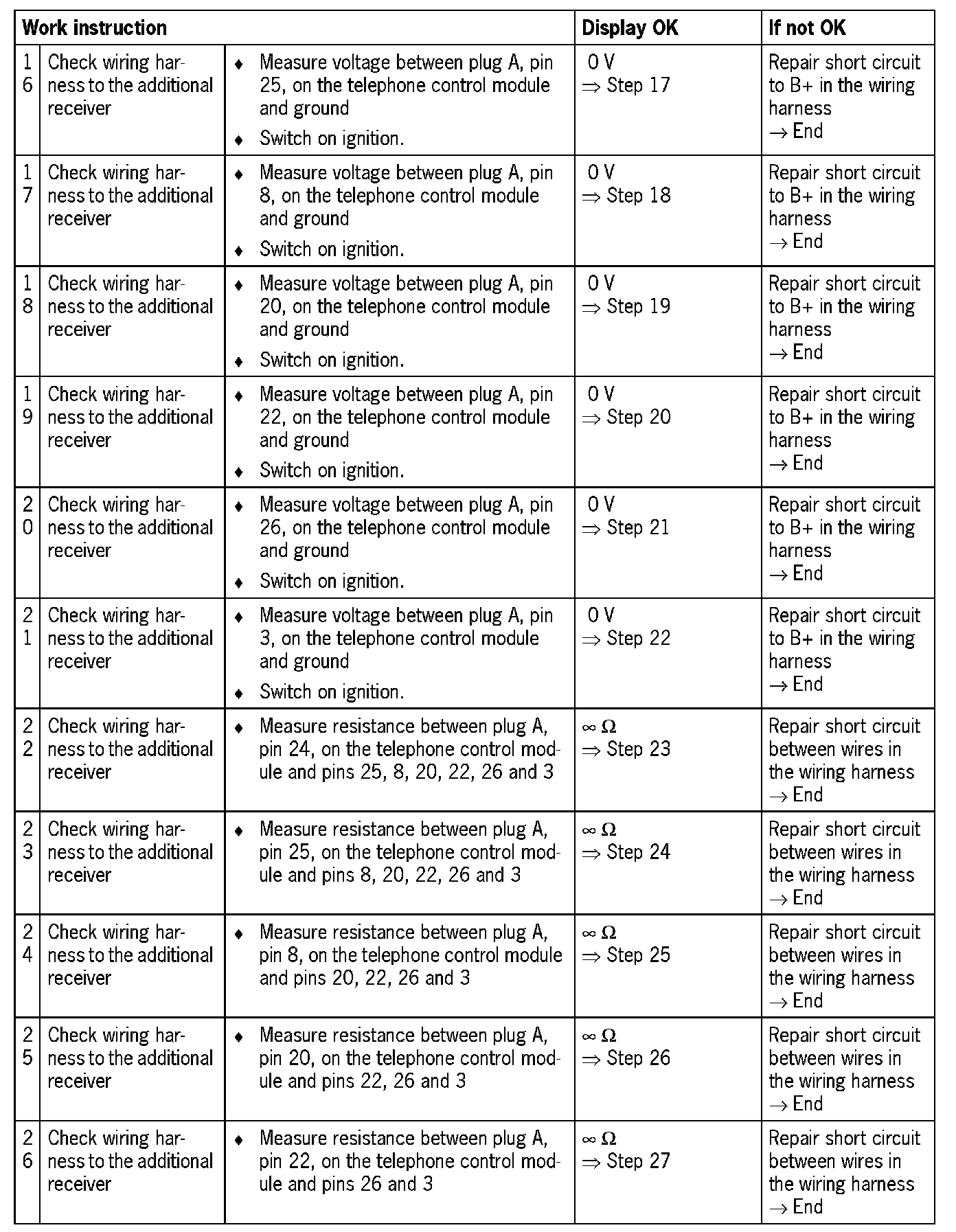

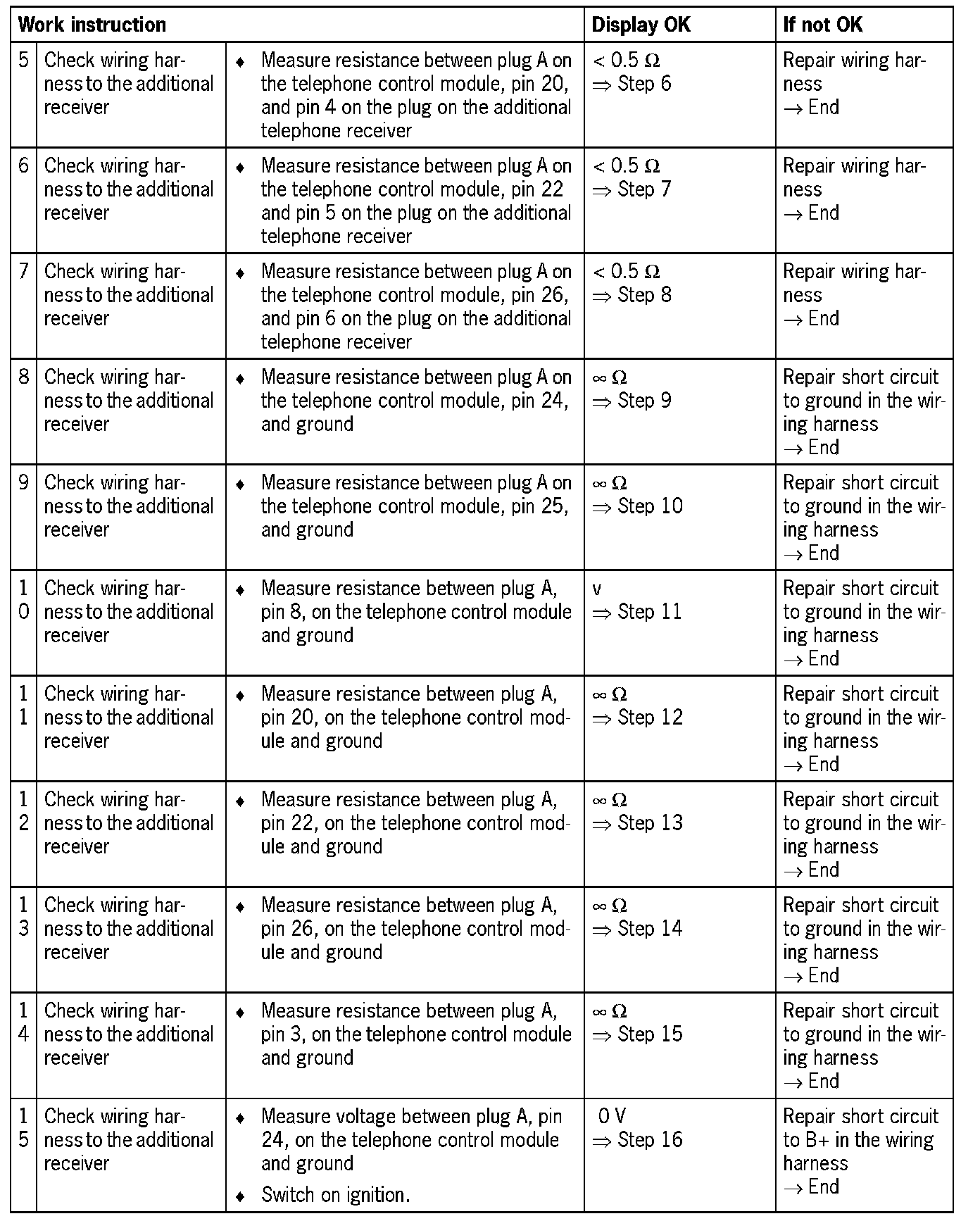

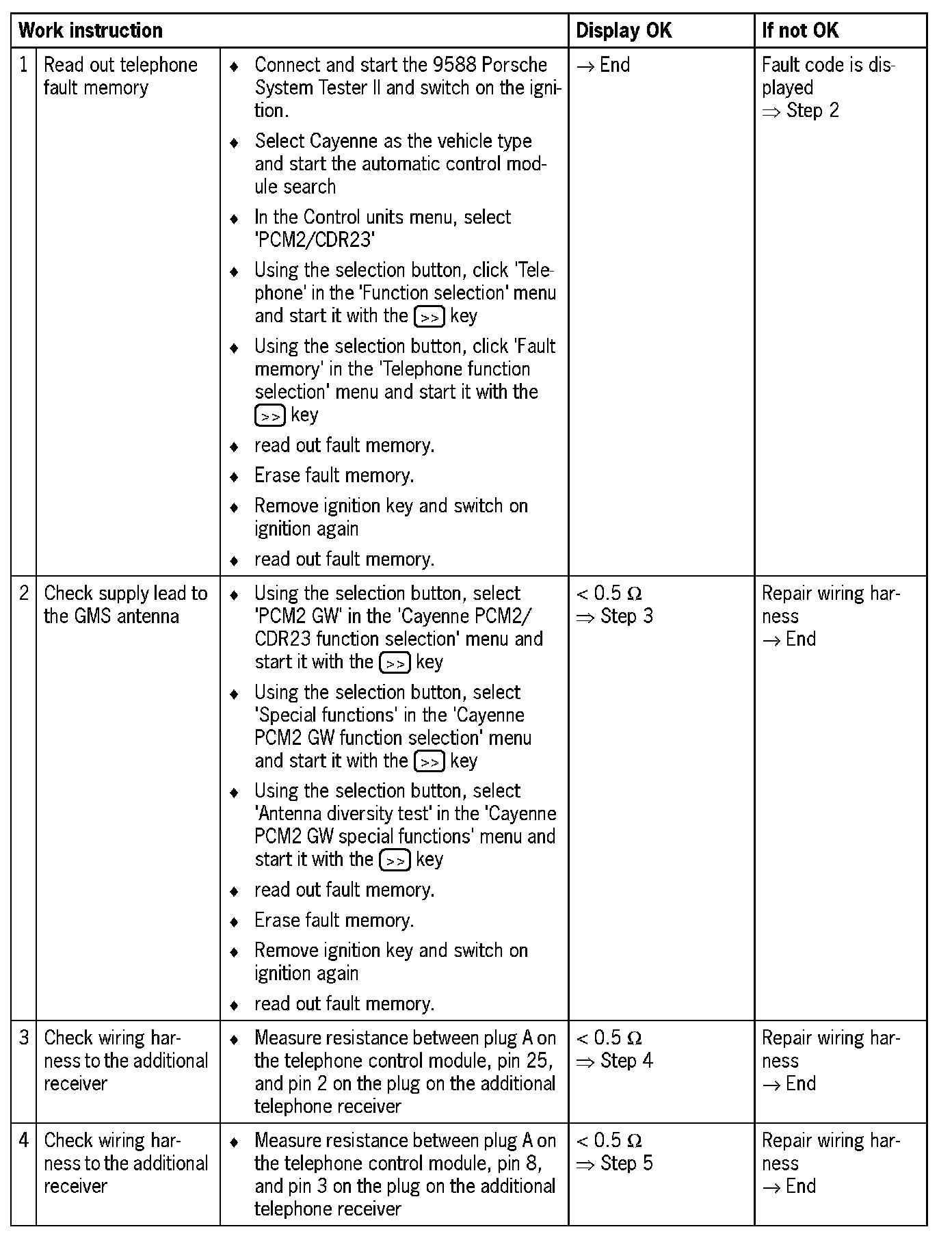

Diagnosis/troubleshooting
