Telephone/Telematics: 9605
9605 Telephone/telematicsControl module faulty
Diagnostic conditions
- Ignition on.
- PCM2 on.
Possible cause of fault
- Telephone control module faulty
NOTE:
- The MOST optical waveguide is connected to the following control modules:
- PCM2
- Optional external amplifier (BOSE)
- CD changer (optional)
- Telephone/telematics (only in conjunction with PCM2)
Affected pin
-

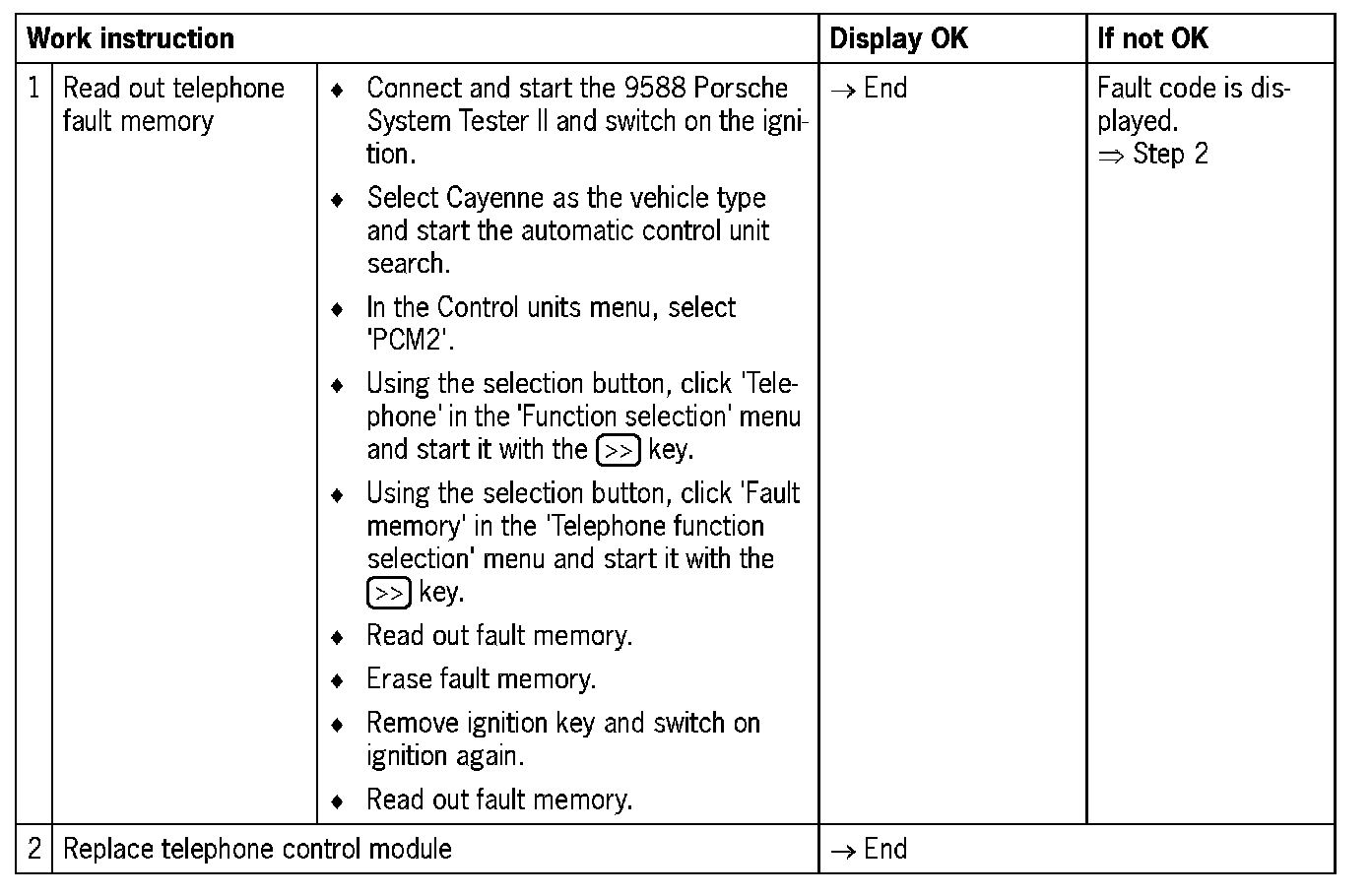

Diagnosis/troubleshooting
