Telephone/Telematics: 9607
9607 - Telephone/telematicsVoltage supply
Diagnostic conditions
- Ignition on
- Engine running
- PCM2 on
NOTE: The fault memory status (present/not present) is always updated when the engine is started.
Possible cause of fault
- Corrosion in plug connections
- Contact resistance
- Vehicle electrical system voltage less than 10.8 V for more than 30 seconds
- Vehicle electrical system voltage greater than 16 V for more than 30 seconds
- Battery faulty
- Generator faulty

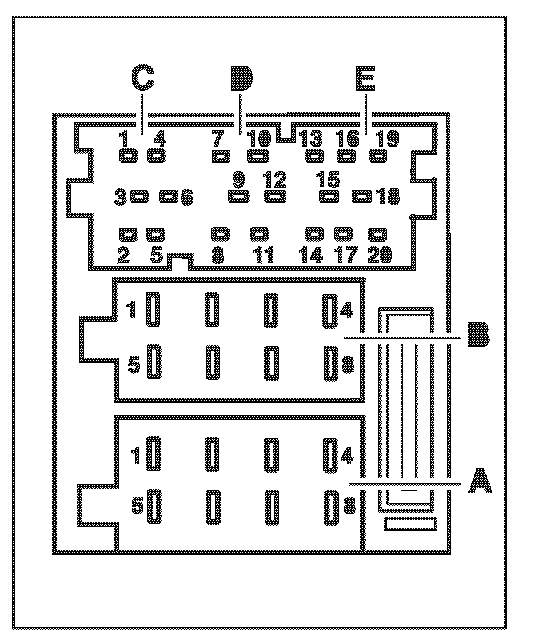

Affected pin
Power supply - telephone control module plug A, pin 12
Power supply - telephone control module plug A, pin 13
Ground connection - telephone control module plug A, pin 9
Diagnosis/troubleshooting - Battery voltage too low
Affected pins
PCM2 plug A, pin 4, pin 8

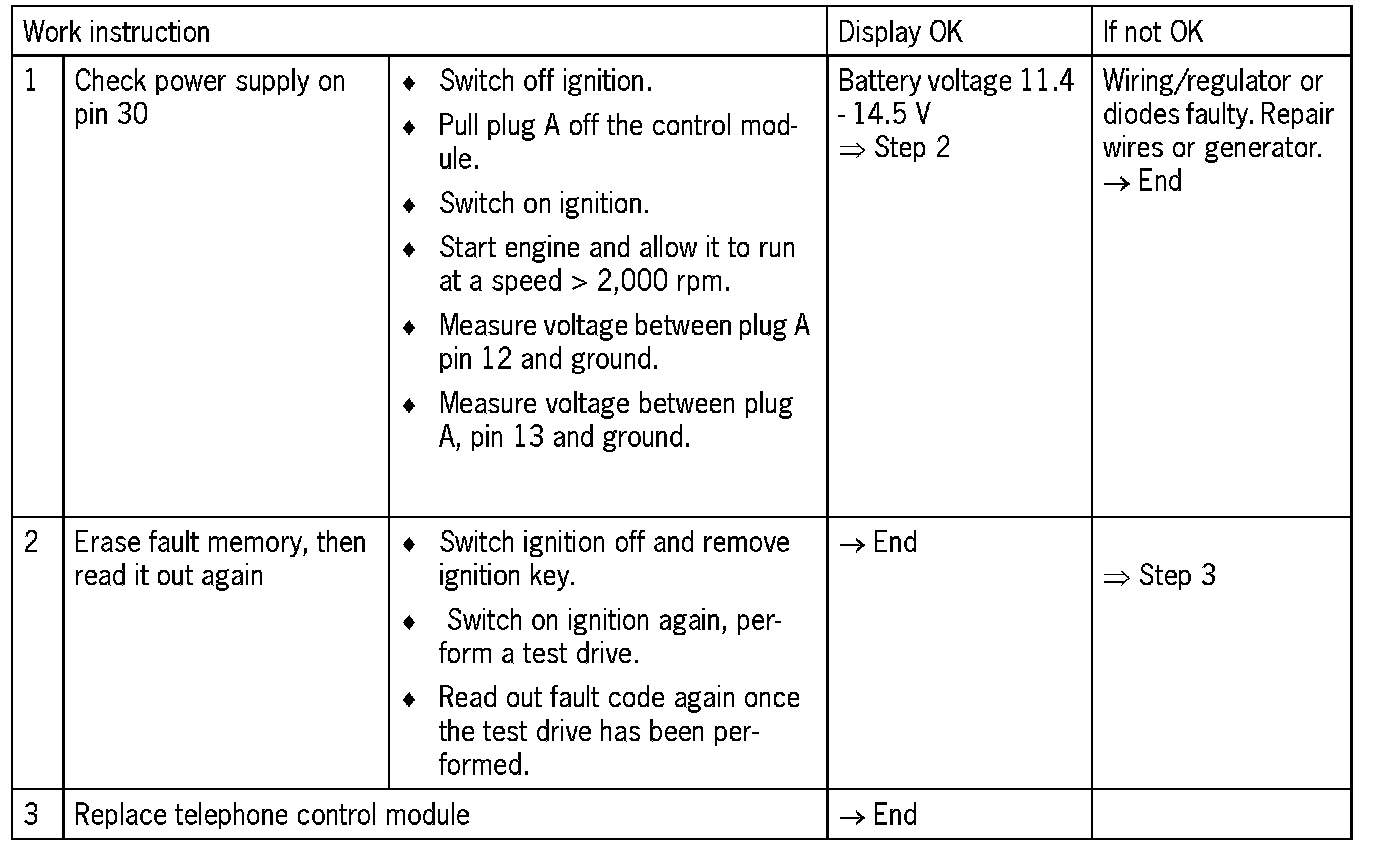

Diagnosis/troubleshooting - Battery voltage too high
