Telephone/Telematics: 9609

9609 - Telephone/telematics

Control module faulty

Diagnostic conditions
- Ignition on
- PCM2 on

Possible cause of fault
- Telephone control module faulty

NOTE:
- The MOST optical waveguide is connected to the following control modules:
- PCM2
- Optional external amplifier (BOSE)
- CD changer (optional)
- Telephone/telematics (only in conjunction with PCM2)

Affected pin
-

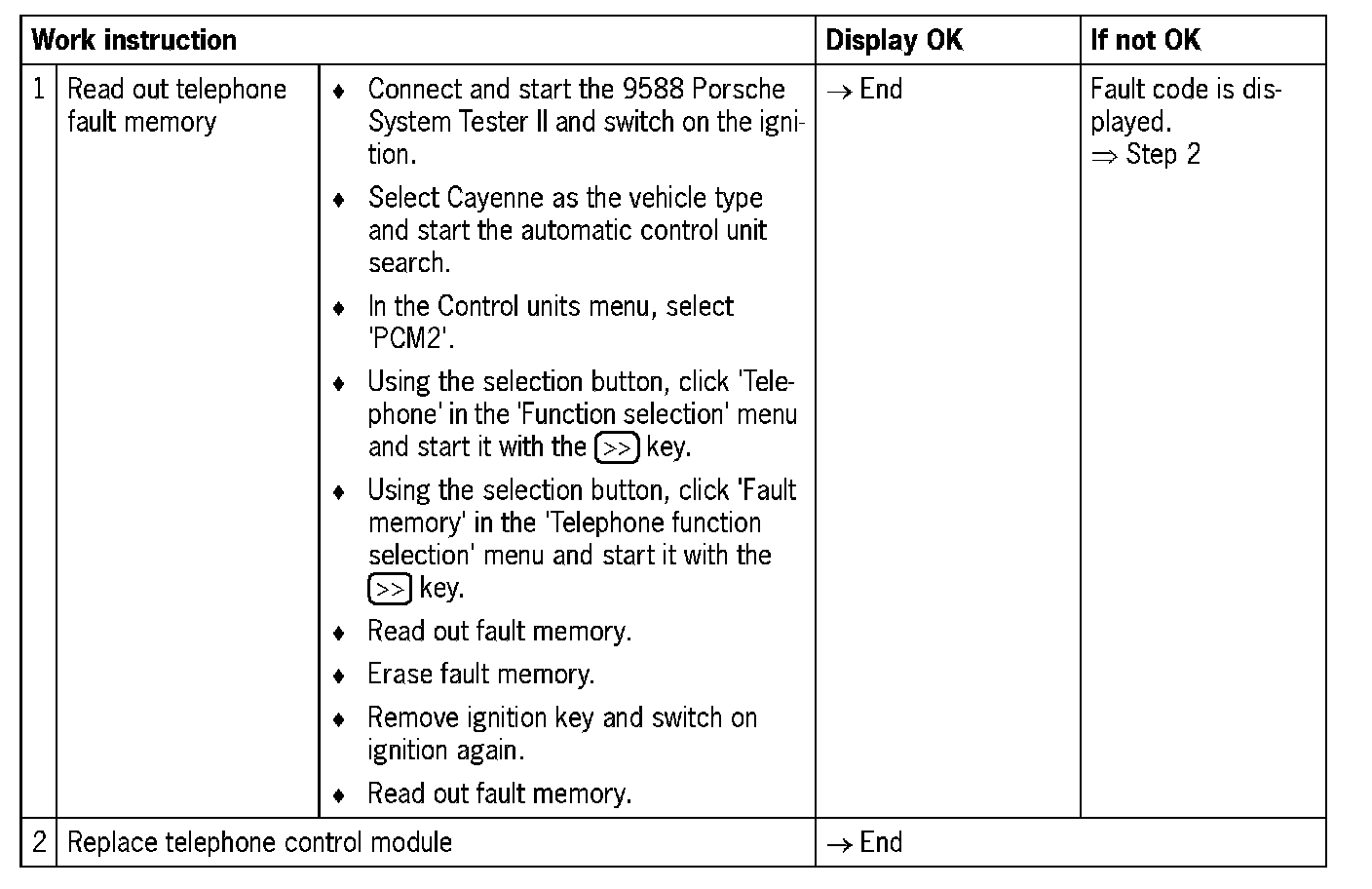

Diagnosis/troubleshooting
