P0017
P0017Position of exhaust camshaft vis-a-vis crankshaft - above limit value/below limit value
Diagnostic conditions
- Battery positive voltage between 10 V and 16 V
- Time after engine starts > 10 seconds
Possible cause of fault
- Timing set incorrectly
- Chain extended
- Exhaust camshaft adjuster loosened
- Rotor of exhaust camshaft sensor in incorrect position
- Exhaust camshaft sensor not installed correctly
Affected pins
-

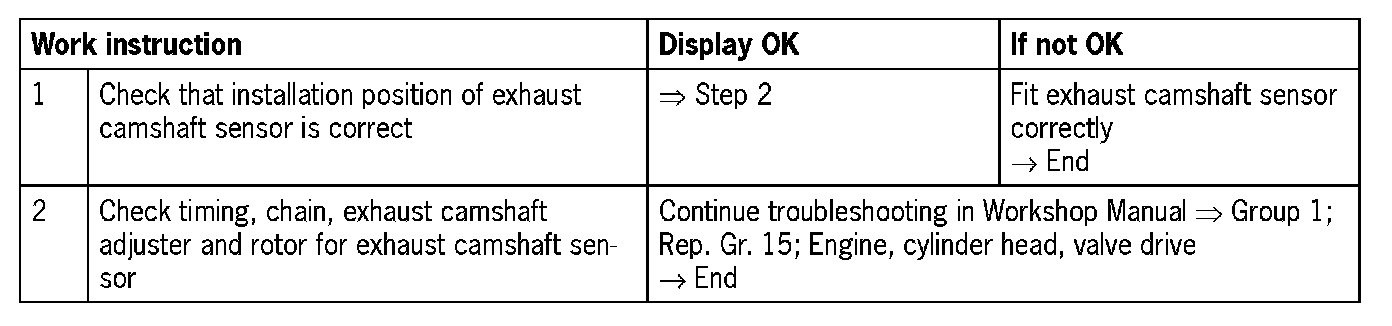

Diagnosis/troubleshooting
NOTE: Fault 'POO17 - below limit value/above limit value' is set if the specified adjustment range (±13.5 °NW) is not observed.
