P0118

P0118

Engine Temperature Sensor - Above Limit

Diagnosis conditions
- Ignition on

Possible fault cause
- Short circuit to ground in signal wire
- Engine temperature sensor faulty
- DME control module faulty

NOTE: This fault is stored if the engine temperature is detected at over 140 °C.

Affected terminals
DME control module connector B, pin 93, and engine temperature sensor, pin 1
DME control module connector B, pin 108, and engine temperature sensor, pin 2

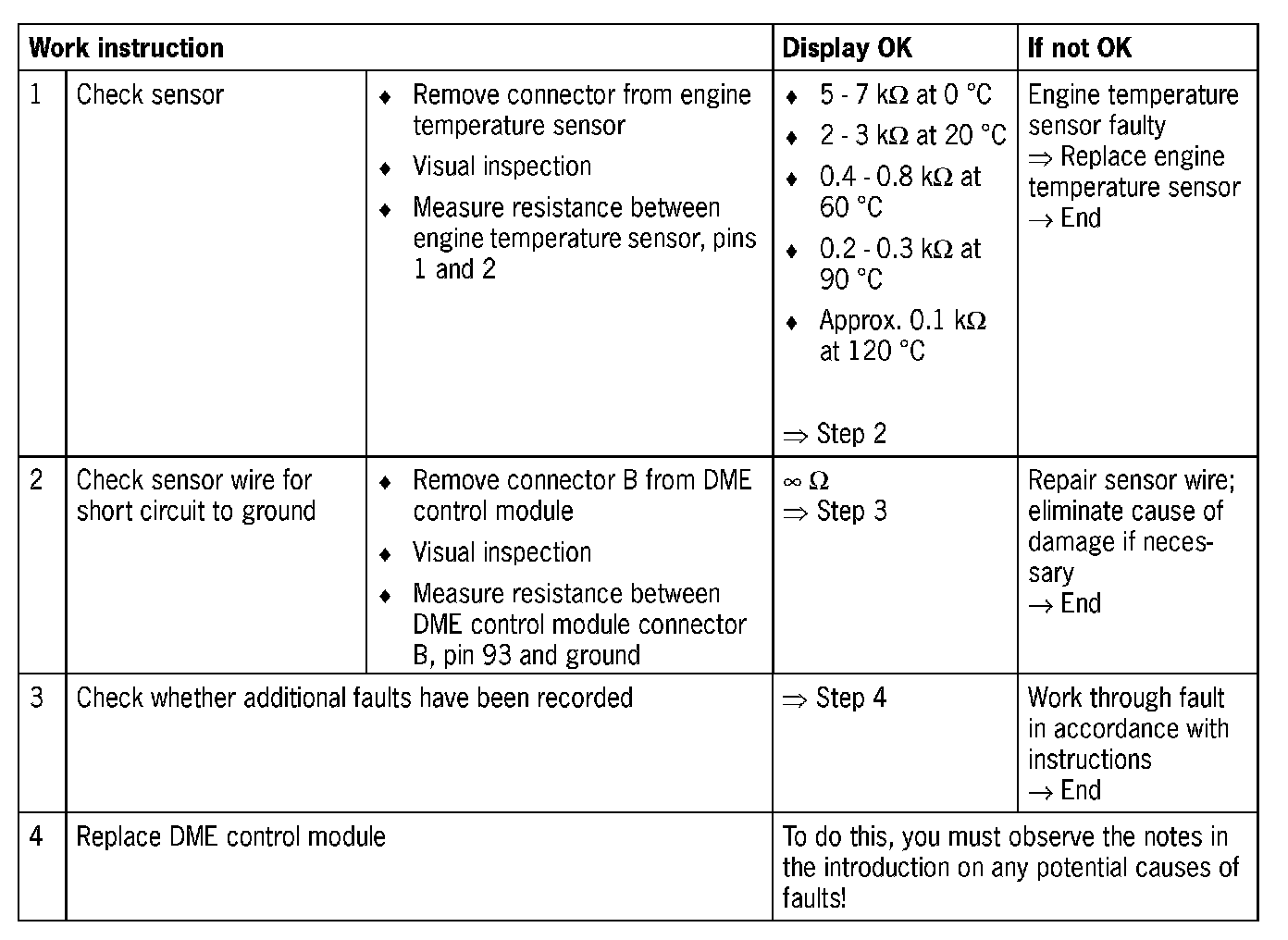

Diagnosis/troubleshooting
