P0134
P0134Oxygen sensor ahead of catalytic converter, bank 1 - pump voltage line - open circuit/above limit value/below limit value
Diagnostic conditions
- Battery positive voltage between 10 V and 16 V
- Time after the engine is started longer than 10 seconds
Possible cause of fault
- Electrical fault in pump voltage line
- Oxygen sensor faulty
- DME control module faulty
Affected terminals
DME control module connector A, pin 52, and oxygen sensor connector in front of catalytic converter, bank 1, pin 6

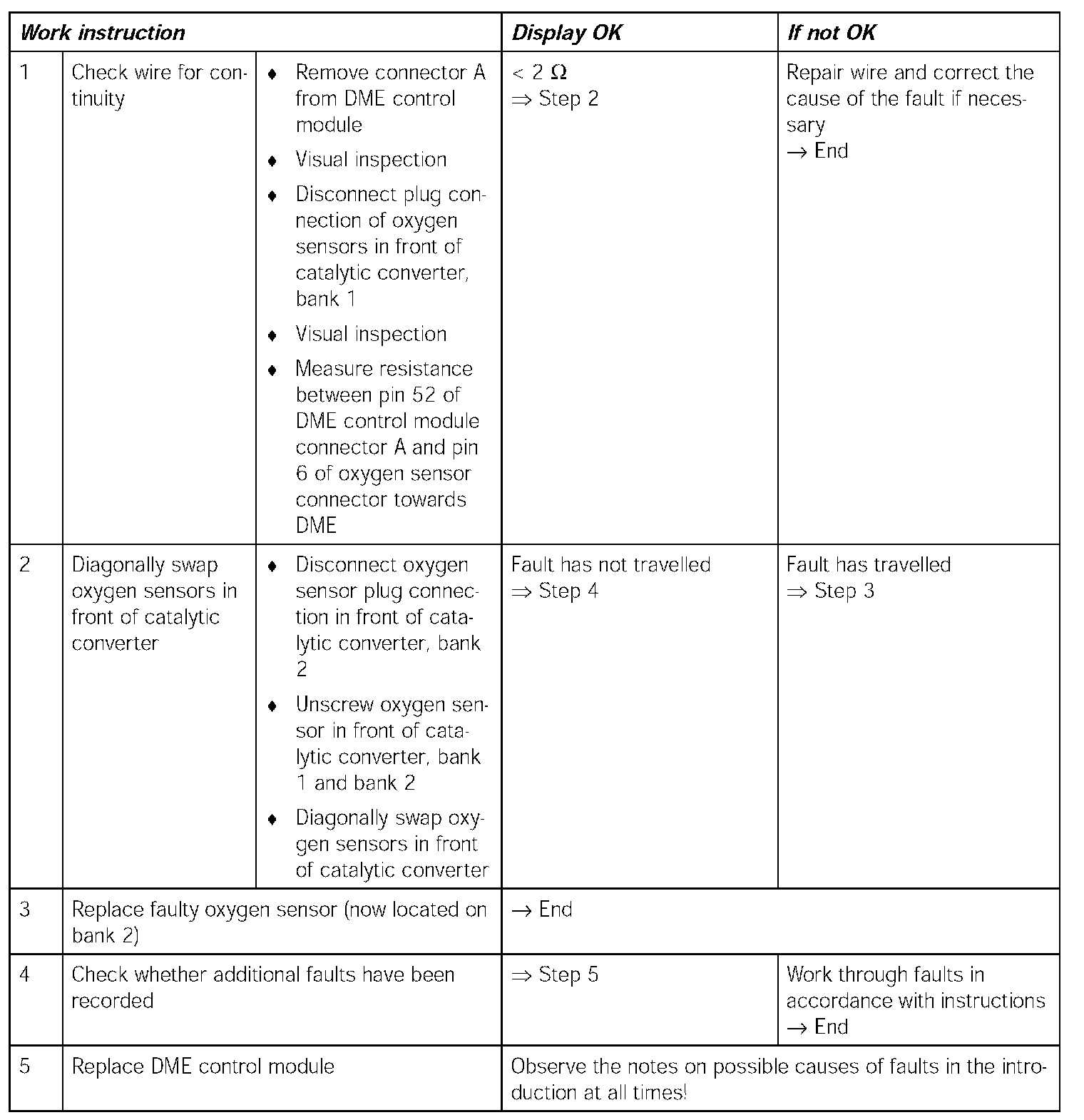

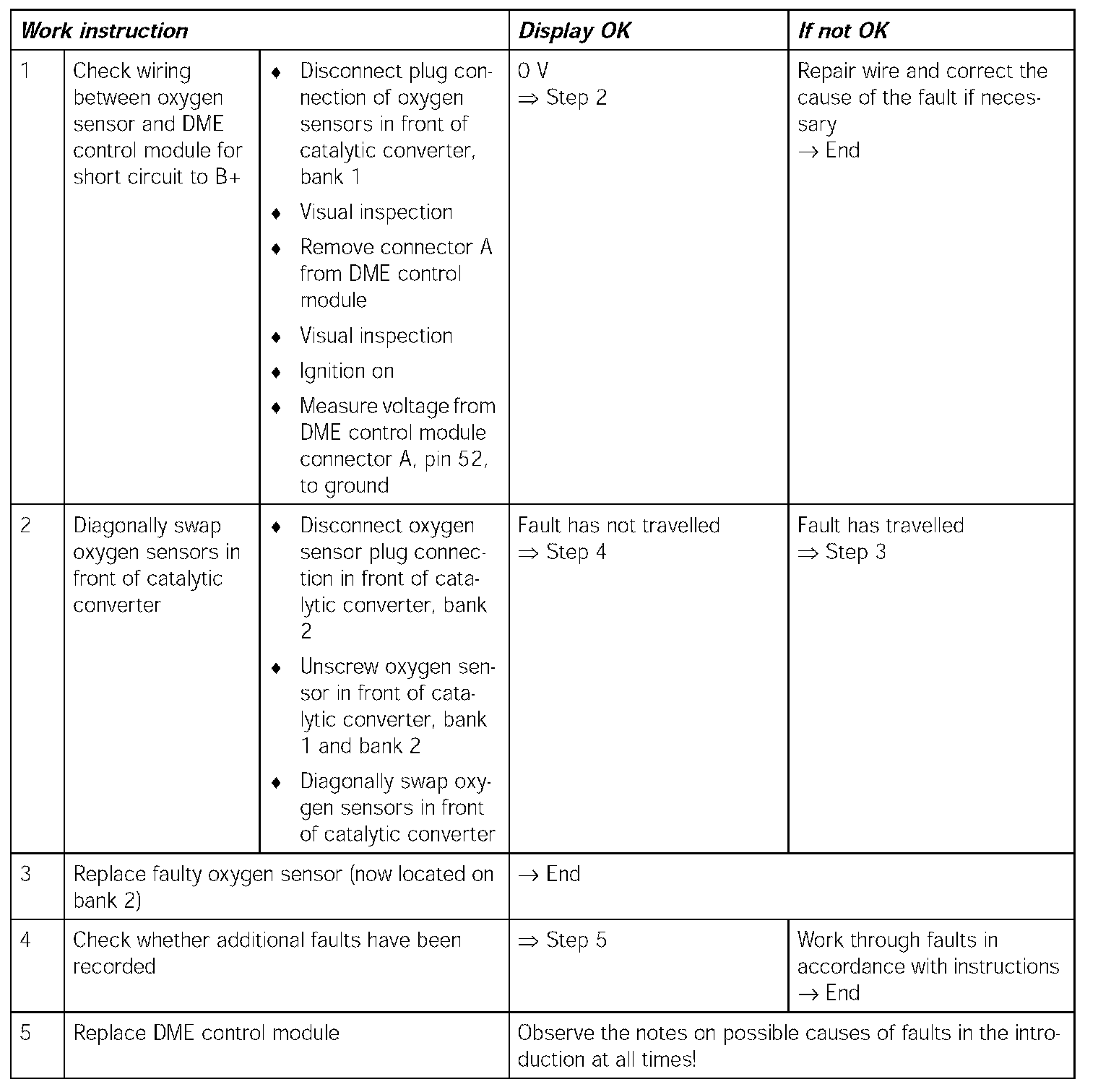

Diagnosis/troubleshooting
NOTE: Do not use contact spray on the oxygen sensor plug connections as this may cause irreparable damage to the wiring (contamination of the oxygen sensor via the reference air channel).
NOTE: Do not confuse oxygen sensor ahead of catalytic converter and oxygen sensor behind catalytic converter as this will cause implausible fault entries.

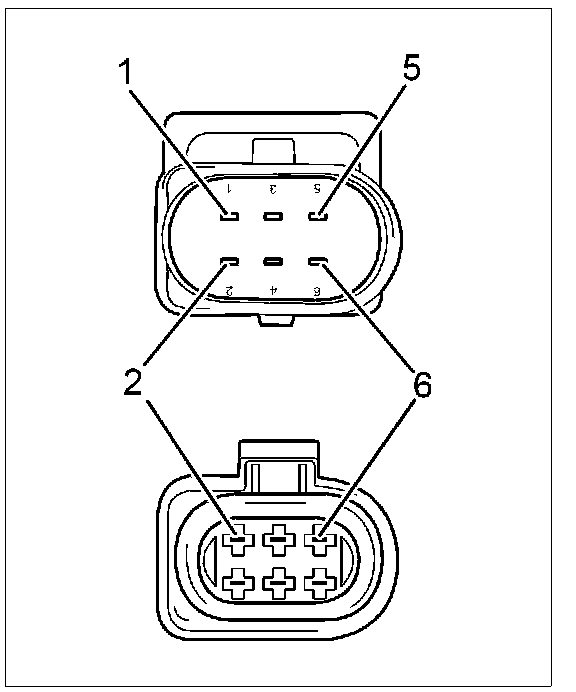

Distinguishing feature of both sensors:
Oxygen sensor in front of catalytic converter (LSU) has a six-pin connector
Oxygen sensor behind catalytic converter (LSF) has a four-pin connector

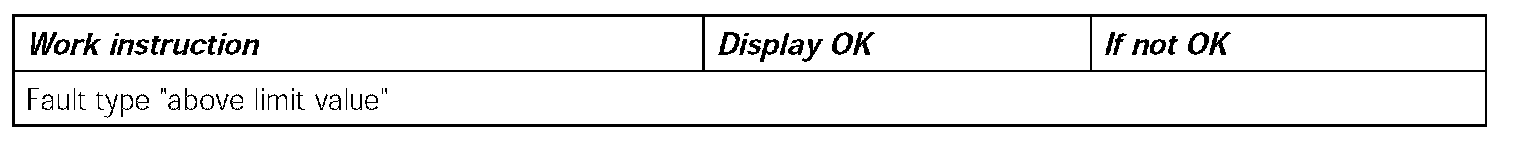

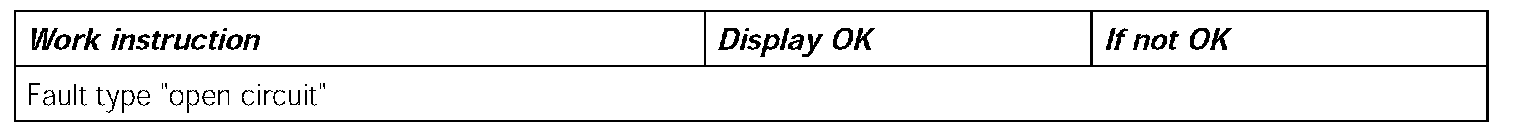

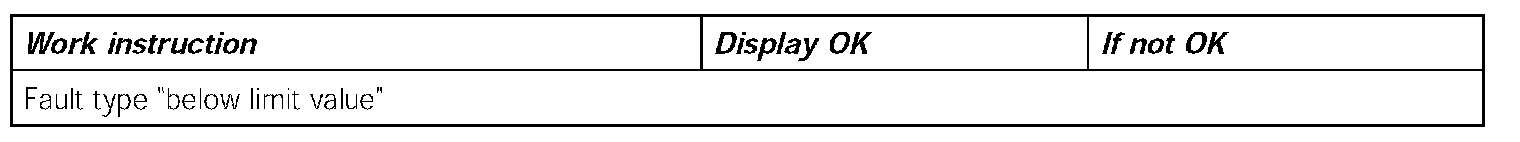

NOTE: When selecting the fault code table, note the fault type from the extended fault memory.
