P0335

P0335

Crankshaft sensor - open circuit

Diagnostic conditions
- Engine running

Possible cause of fault
- Corrosion in plug connections
- Open circuit
- Short circuit to B+ or ground
- Sensor faulty

Affected terminals
DME control module plug B, pin 82, and pin 3 of crankshaft sensor plug
DME control module plug B, pin 90, and pin 2 of crankshaft sensor plug
DME control module plug B, pin 108, and pin 1 of crankshaft sensor plug

NOTE: The crankshaft sensor also determines the reference mark.

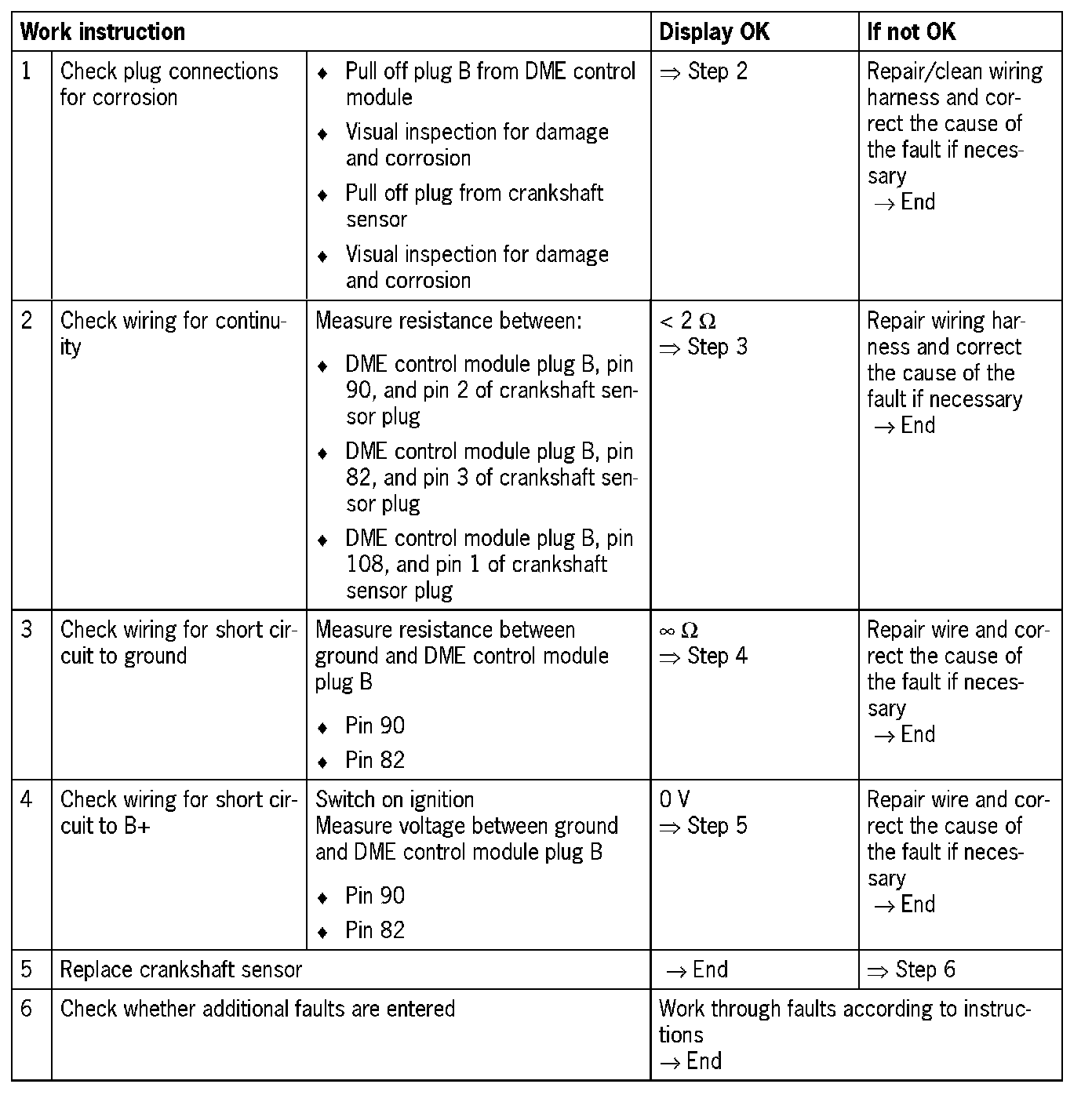

Diagnosis/troubleshooting
