P0338

P0338

Crankshaft sensor - 'one tooth too many'

Diagnostic conditions
- Engine running

Possible cause of fault
- Sensor installed incorrectly
- Sensor faulty

Affected terminals
-

NOTE: The crankshaft sensor also determines the reference mark.

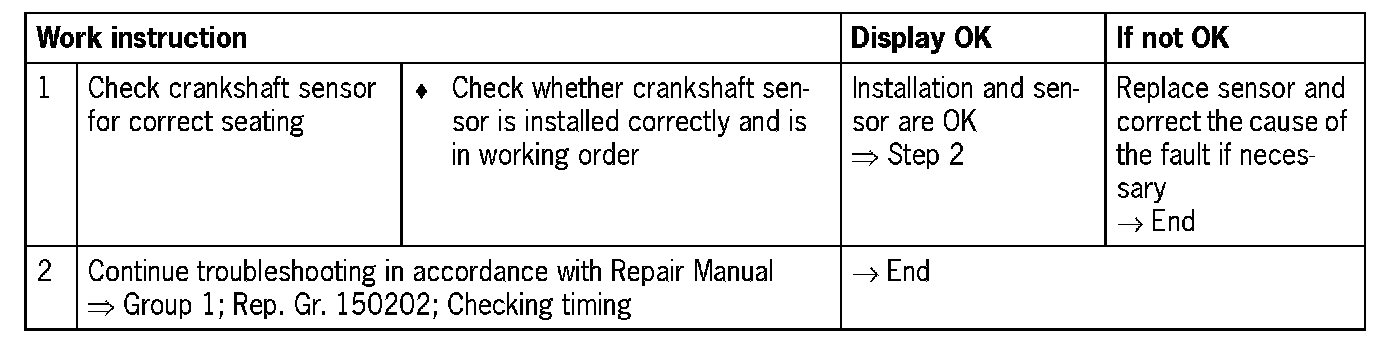

Diagnosis/troubleshooting
