P0342

P0342

Camshaft Position Sensor, Bank 1 - Below Limit

Diagnostic conditions
- Ignition on
- Battery voltage between 10 V and 16 V

Possible cause of fault
- Short circuit to ground in signal wire
- Camshaft position sensor, bank 1 faulty
- DME control module faulty

Affected pins
DME control module connector B, pin 98, and camshaft position sensor connector, bank 1, pin 3
DME control module connector B, pin 86, and camshaft position sensor connector, bank 1, pin 2
DME control module connector B, pin 108, and camshaft position sensor connector, bank 1, pin 1

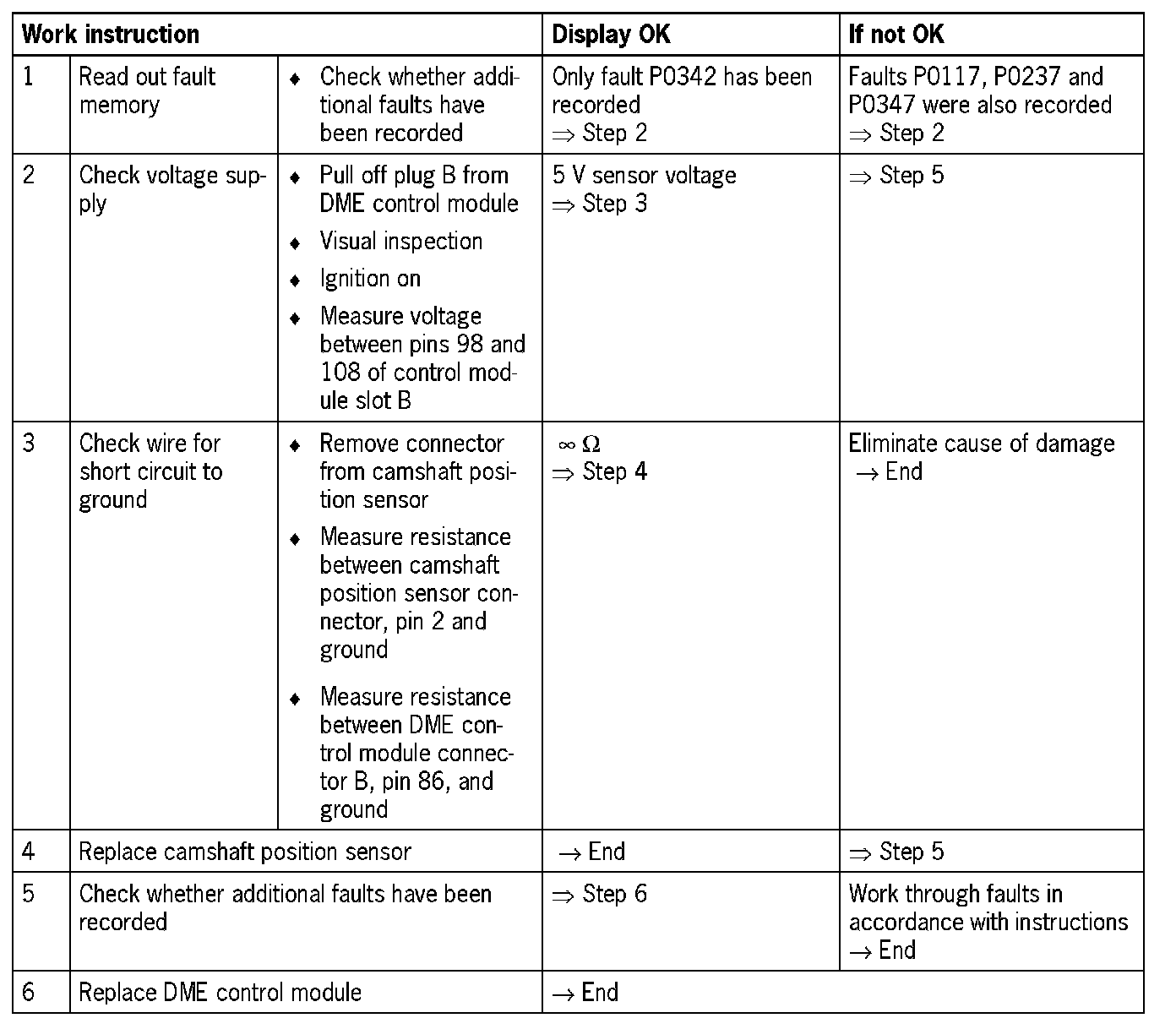

Diagnosis/troubleshooting
