P0348

P0348

Camshaft Position Sensor, Bank 2 - Above Limit

Diagnostic conditions
- Ignition on
- Battery positive voltage between 10 V and 16 V

Possible cause of fault
- Short circuit to B+ in signal wire
- Open circuit in signal wire
- Camshaft position sensor faulty
- DME control module faulty

Affected pins
DME control module connector B, pin 98, and camshaft position sensor connector, bank 2, pin 3
DME control module connector B, pin 87, and camshaft position sensor connector, bank 2, pin 2
DME control module connector B, pin 108, and camshaft position sensor connector, bank 2, pin 1

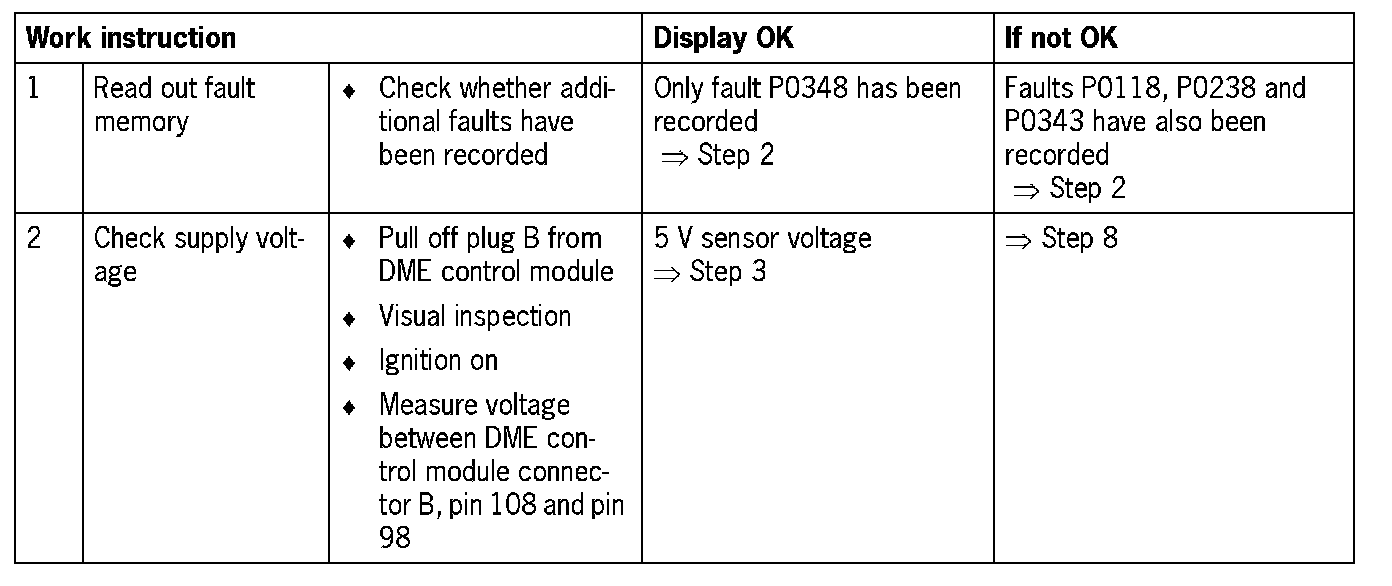

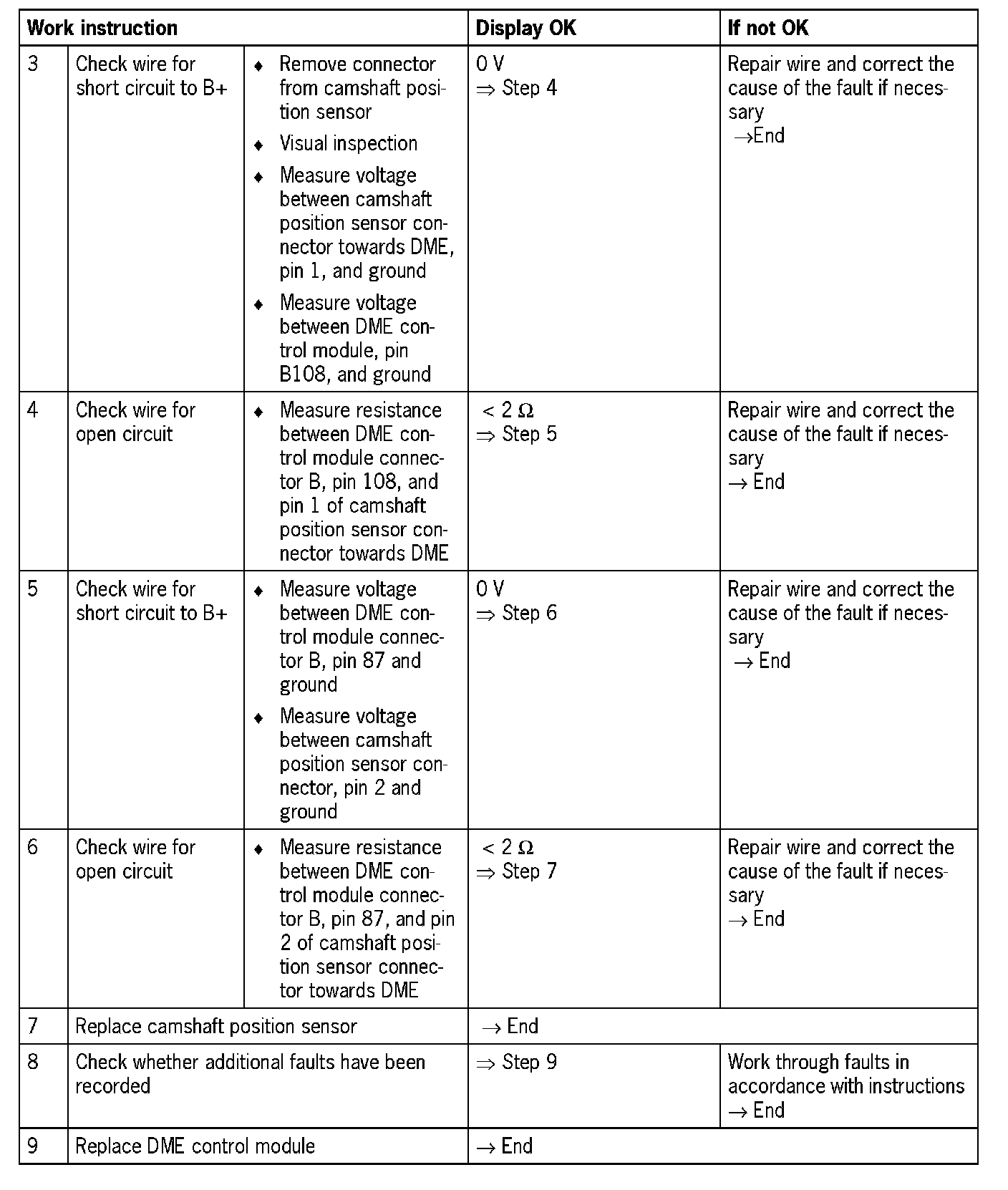

Diagnosis/troubleshooting
