P0507

P0507

Idle Air Control at Stop - Above Limit

Diagnostic conditions
- Engine running
- Vehicle stationary
- Engine without load
- Engine temperature greater than 60 °C
- Intake air temperature greater than -10 °C
- No fuel tank ventilation or tank ventilation diagnosis
- No secondary air diagnosis
- Correction factor, height > 0.75 (height under 2,450 m)
- No faults in speed signal, throttle position sensor, engine temperature, EVAP canister purge valve or tank ventilation system

Possible cause of fault
- Leaks in intake air system
- Leaks in crankcase ventilation
- Throttle adjusting unit faulty

Affected terminals
-

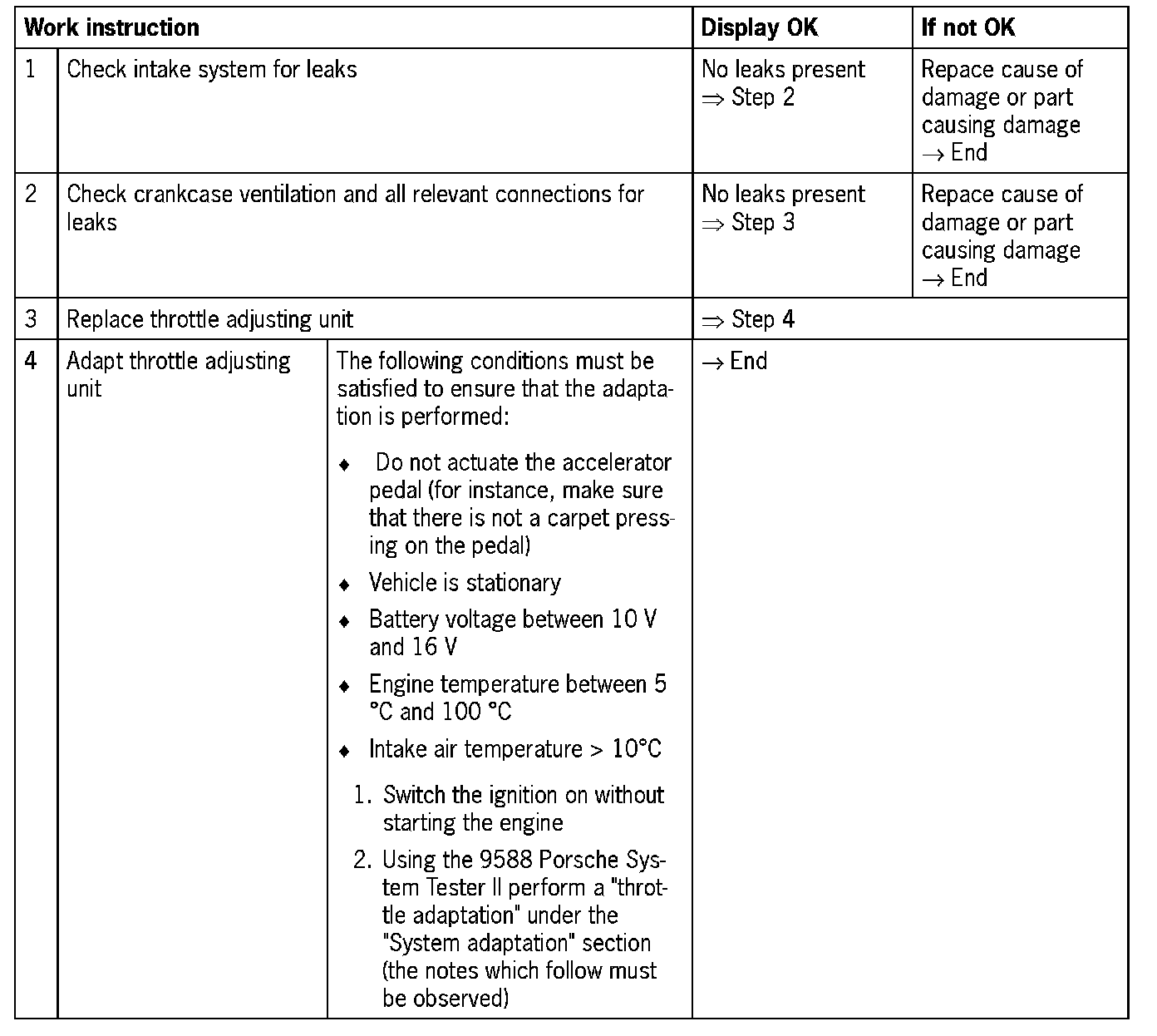

Diagnosis/troubleshooting
