P0613
Fault code P0613Tiptronic control module/CAN drive OFF [TCM Processor]
Diagnostic conditions
- Ignition on
- Internal Tiptronic control module function test
Possible causes of fault
- 'Tiptronic control module faulty'
- 'No signal/communication' - no communication with Tiptronic control module via CAN drive
Affected pins
Pin 34 'CAN drive (low)'
Pin 46 'CAN drive (high)'

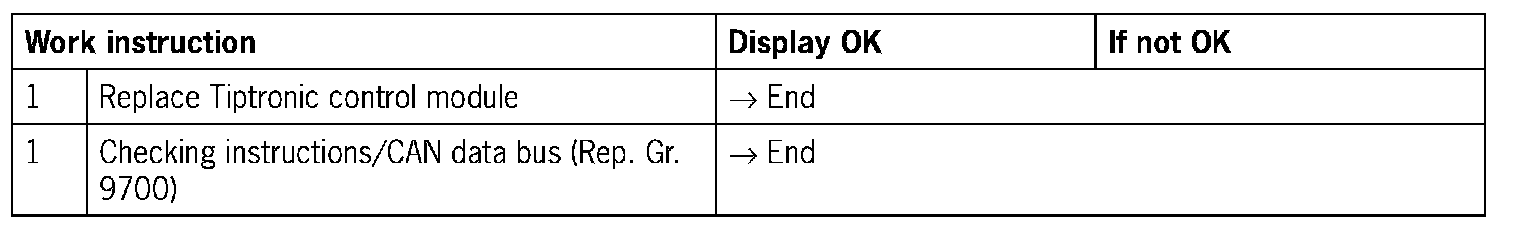

Diagnosis/troubleshooting G 0210
NOTE:
- Before replacing the control module, the ground connections, power supply and plug connections on the control module must be checked.
- When replacing the Tiptronic control module, observe the coding of the control module.
- After the test drive, read out the fault memory with the Porsche System Tester II No. 9588 again. Additional causes of faults that could damage the Tiptronic control module should be detected and remedied.
