P0662

P0662

Intake pipe switch-over driver - above limit value

Diagnostic conditions
- Battery positive voltage between 10 V and 16 V
- Time after engine starts > 10 seconds

Possible cause of fault
- Short circuit to B+ in control line
- Intake pipe switch-over valve faulty (short circuit)
- DME control module faulty

Affected pins
DME control module plug B, pin 114, and pin 2 of intake pipe switch-over valve

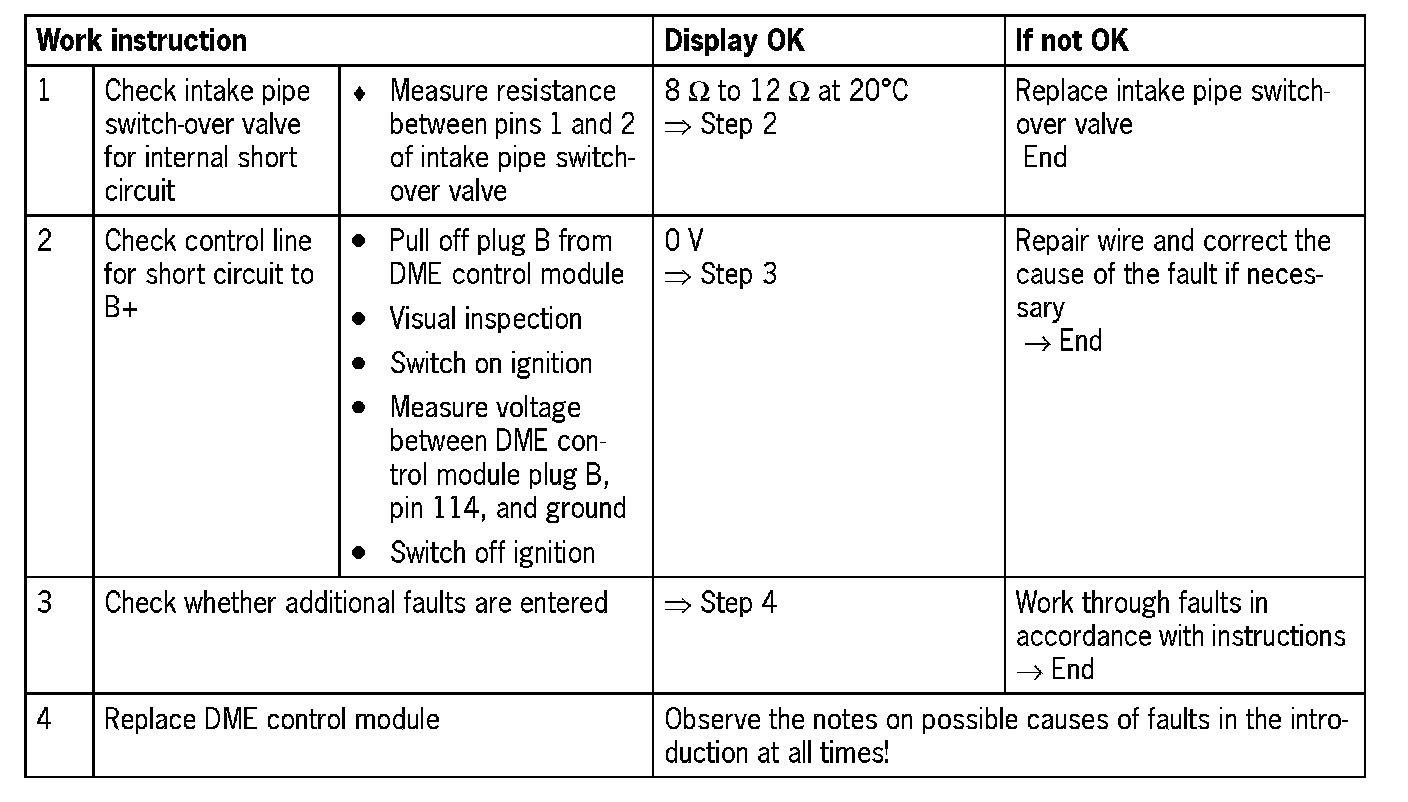

Diagnosis/troubleshooting

NOTE:
The wire for fuse F9 and pin 1 of the intake pipe switch-over valve plug is routed via pin 6 of connection KE 7.
