P1507
P1507Throttle Adjusting Unit, Gain Adjustment - Signal Implausible
Diagnostic conditions
- Ignition on (approx. 30 seconds)
- Vehicle is stationary
- Engine not running
- Engine temperature between 5 and 100 °C
- Intake air temperature greater than 5 °C
- Battery positive voltage greater than 10 V
- Pedal value less than 0.8 %
Possible cause of fault
- Adaptation not performed successfully
- DME control module faulty
Affected terminals
-

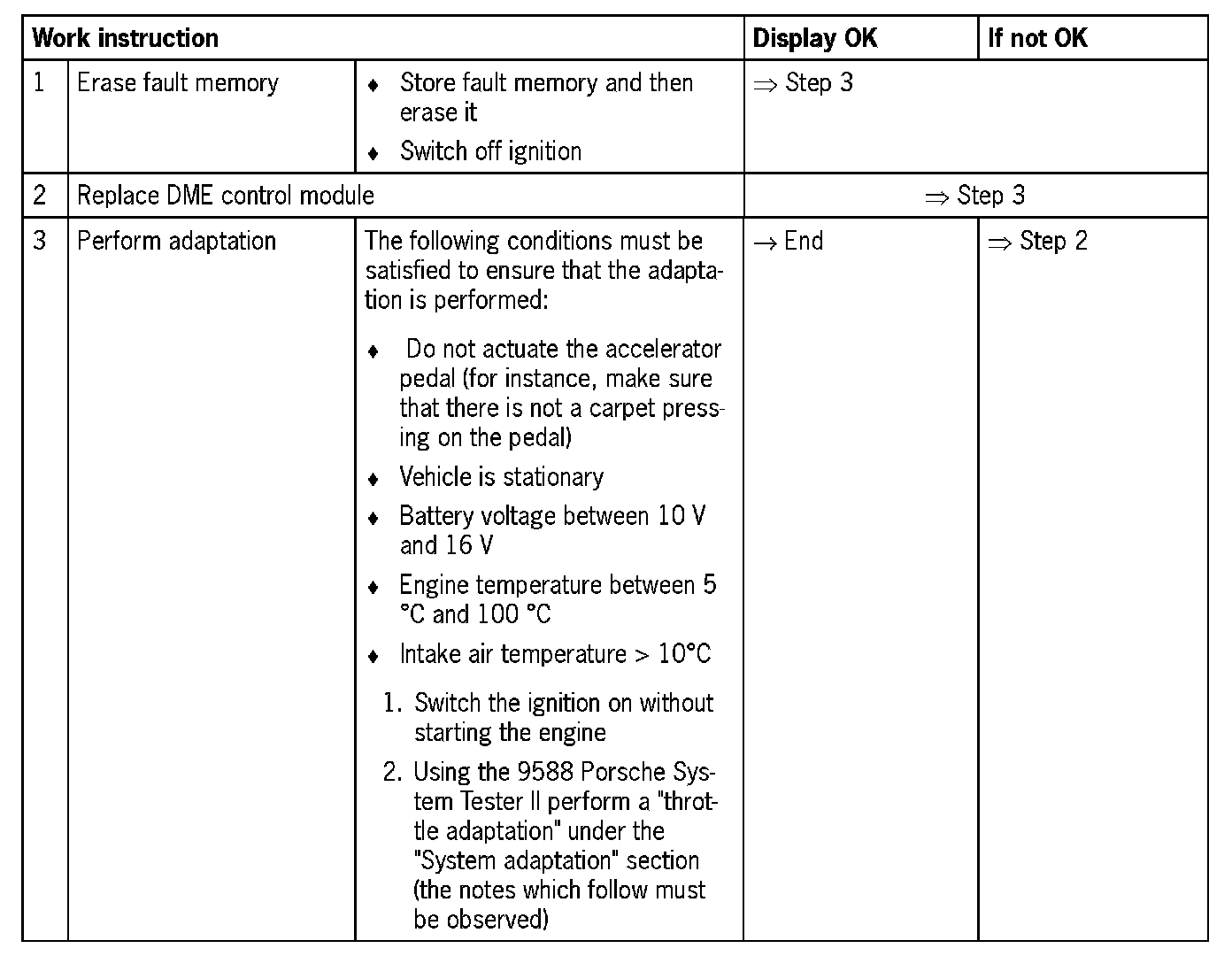

Diagnosis/troubleshooting
