P1511

P1511

Throttle Adjusting Unit: Abortion of Jest due to Negative Influence on Ambient Condition - Below Limit

Diagnostic conditions
- Ignition on (approx. 30 seconds)
- Vehicle is stationary
- Engine not running
- Engine temperature between 5 and 100 °C
- Intake air temperature greater than 5 °C
- Battery positive voltage greater than 10 V
- Pedal value less than 0.8 %

NOTE: This fault is only recorded if the adaptation was not performed correctly after the throttle adjusting unit or DME control module was replaced.

NOTE: When this fault occurs, the value from the accelerator module is limited to 30 % and the dynamic is reduced.

Possible cause of fault
- No adaptation performed

Affected terminals

-

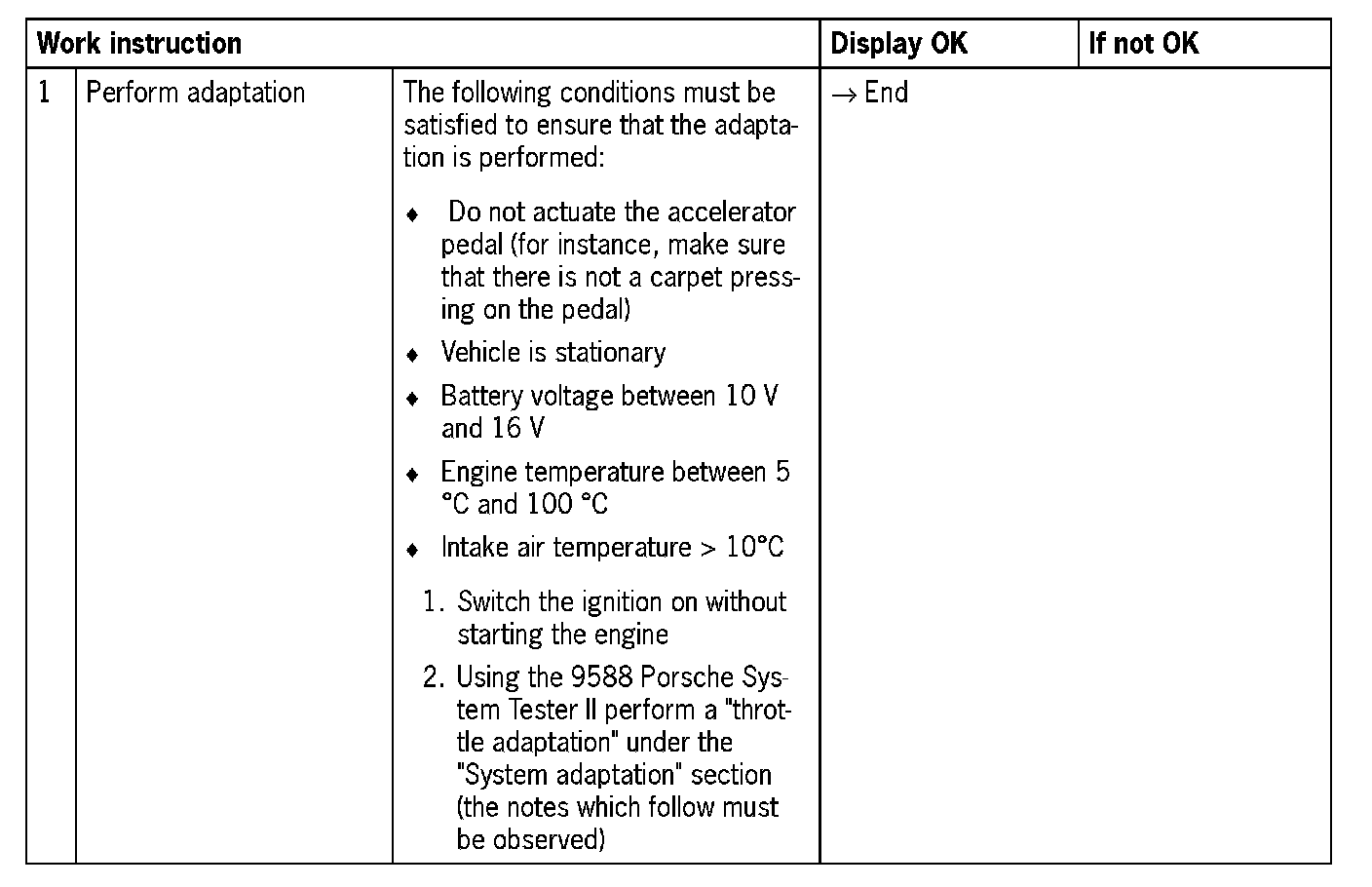

Diagnosis/troubleshooting
