P1616

P1616

CAN Timeout, Ignition Lock

Diagnosis conditions
- Battery positive voltage between 10 V and 16 V
- Ignition switched on
- Internal function test for DME control module

Possible fault cause
- No signals or faulty signals from ignition lock

Affected pin
DME control module connector A, pin 60, 'CAN - HIGH'
DME control module connector A, pin 58, 'CAN - LOW'

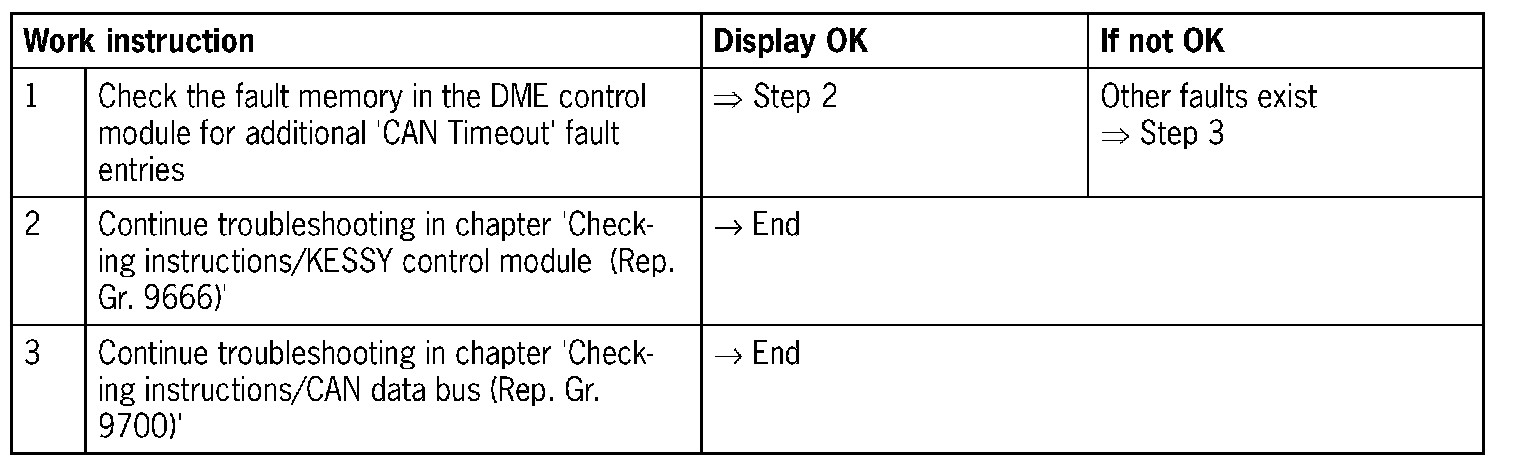

Diagnosis/troubleshooting

NOTE: If the received signal does not appear via the CAN data bus for multiple control modules, the CAN data bus must be checked for an open circuit and/or a short circuit. In this regard, see 'Checking instructions/CAN data bus'.

NOTE: The CAN message, 'CAN Timeout, Ignition Lock - No Signal', is sent by the KESSY control module if important 'ignition lock' signals are missing.

NOTE: If connector A is disconnected from the DME control module and the ignition is or was switched on, the 'DME Control Module TIMEOUT' fault is recorded in many control modules.

NOTE: If control module connector A was disconnected from the DME in the course of troubleshooting or if the voltage supply was interrupted elsewhere (battery, fuse), the throttle adjusting unit must be adapted.
