P1622
P1622CAN Timeout, Tiptronic - Signal Implausible
Diagnostic conditions
- Battery voltage between 10 V and 16 V
- Ignition switched on
- Internal function test for DME control module
Possible cause of fault
- No communication (no signal from control module)
Affected pins
DME control module connector A, pin 60, 'CAN - HIGH'
DME control module connector A, pin 58, 'CAN - LOW'

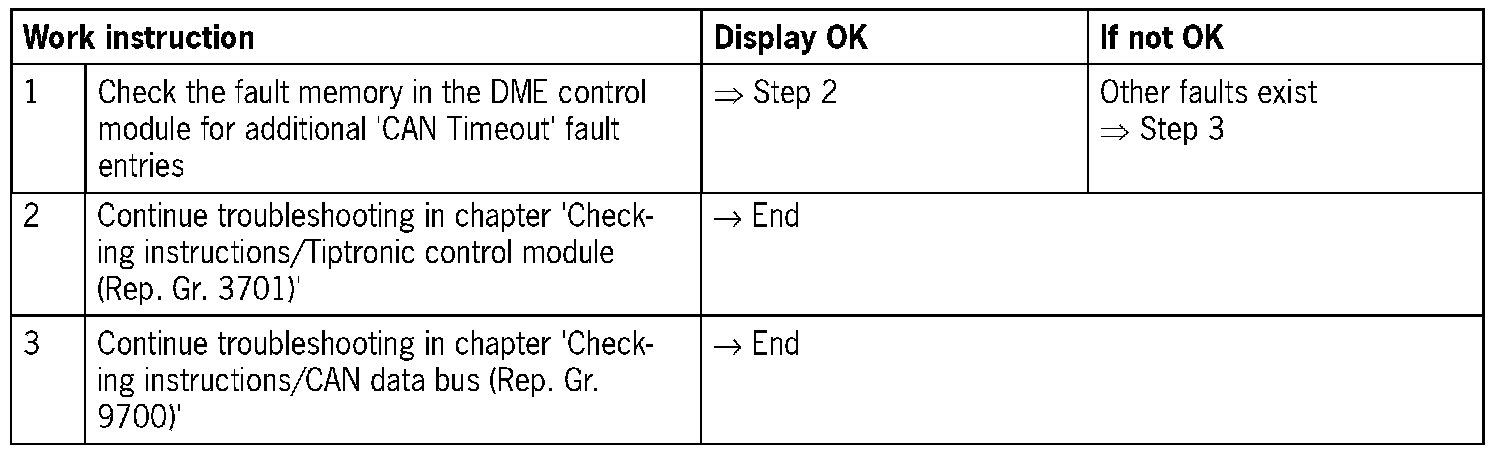

Diagnosis/troubleshooting
NOTE: If the received signal does not appear via the CAN data bus for multiple control modules, the CAN data bus must be checked for an open circuit and/or a short circuit. In this regard, see 'Checking instructions/CAN data bus'.
NOTE: If connector A is disconnected from the DME control module and the ignition is or was switched on, the 'DME Control Module Timeout' fault is recorded in many control modules.
NOTE: If control module connector A was disconnected from the DME in the course of troubleshooting or if the voltage supply was interrupted elsewhere (battery, fuse), the throttle adjusting unit must be adapted.
