P2135
P2135Throttle/Pedal Position Sensor/Switch "A" / "B" Voltage Correlation
Diagnostic conditions
- Ignition on (approx. 30 sec.)
- Battery positive voltage greater than 7 V
Possible cause of fault
- Accelerator module faulty
Affected terminals
-
NOTE:
- The system is in accelerator module standby mode
- This fault only occurs in connection with faults P0121, P0122, P0123, P0222, P0223.

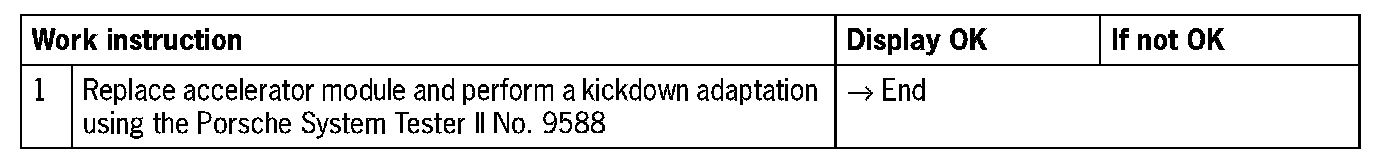

Diagnosis/troubleshooting
