Alarm Horn: Service and Repair

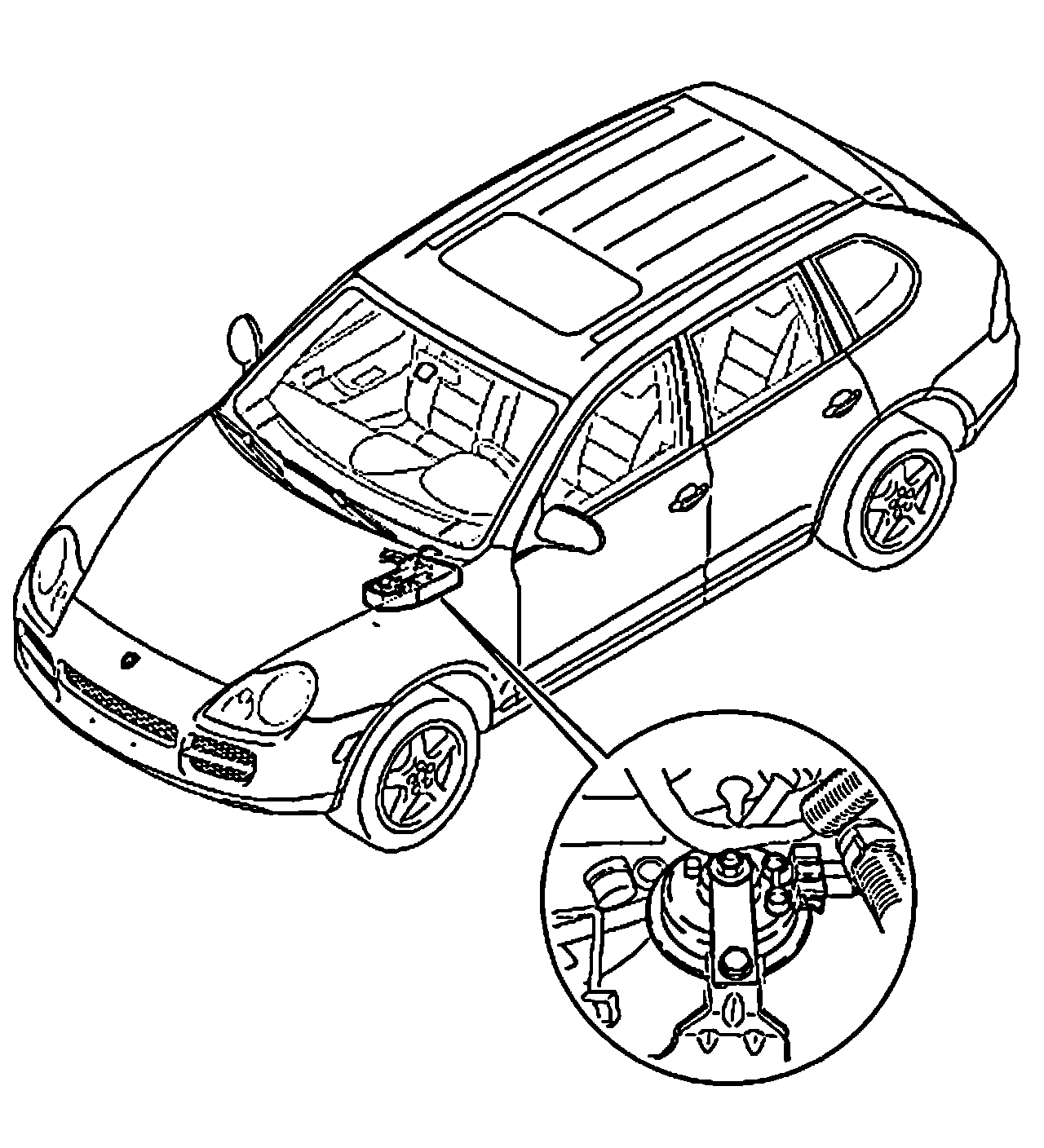

Removing And Installing The Alarm Siren







Removing The Alarm Siren
1. Release the relay carrier E-box plenum panel and put it aside.

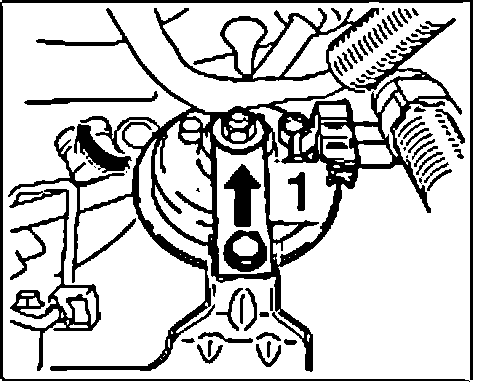

2. Unscrew fastening screw "1" and pull the horn aside and upwards "arrow".

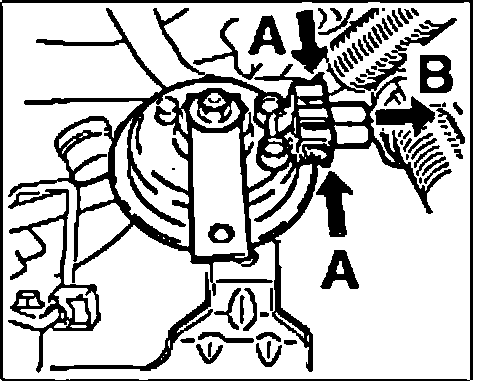

3. Unlock the connector "arrows A" and pull it out "arrow B".

Installing The Alarm Siren

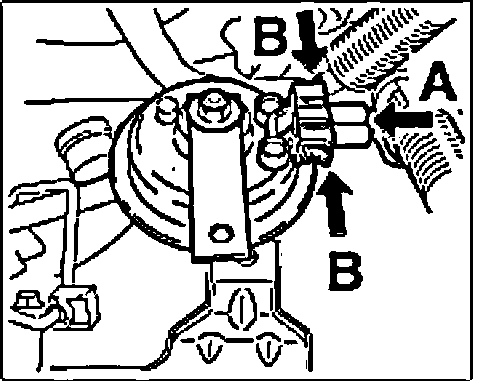

1. Connect the connector to the horn "arrow A" until the locking "B" engages audibly.

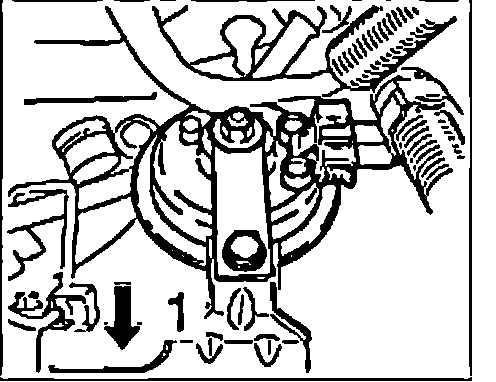

2. Tightly screw the horn to the holder using the fastening screw "1". Refer to 'Tightening torques'
3. Install the relay carrier E-box plenum panel.

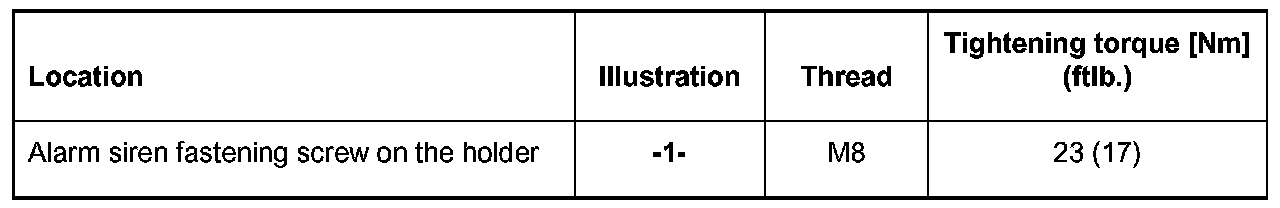

Tightening Torques
