Security Lamp/Indicator: Service and Repair

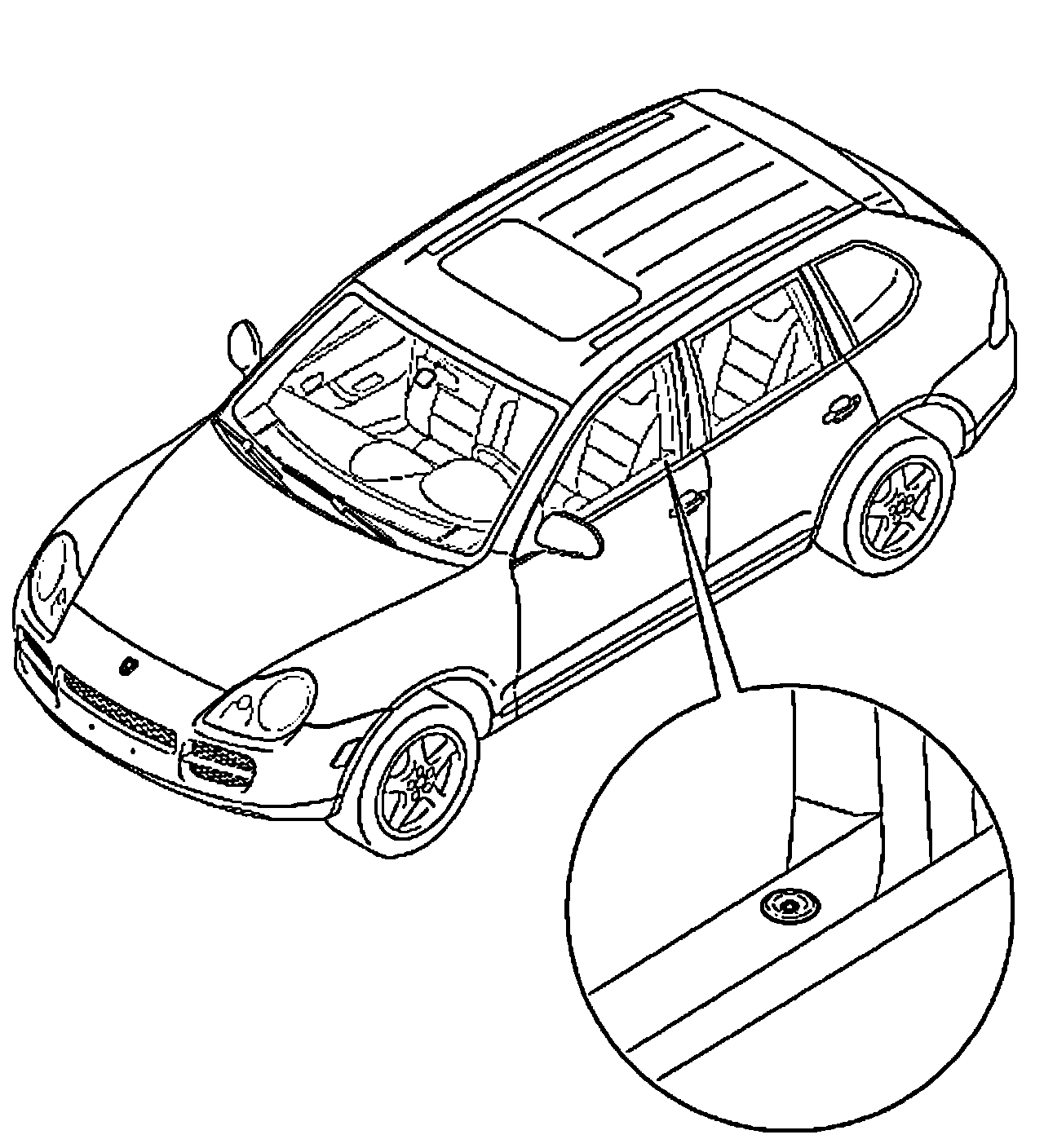

Removing And Installing Light-Emitting Diode For Alarm System







Removing Light-Emitting Diode For Alarm System
1. Remove door trim panel.

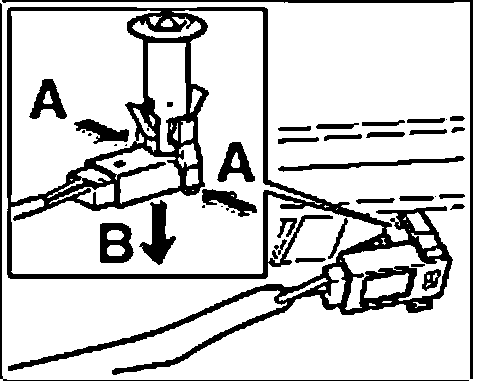

2. Release light-emitting diode "arrow A" and remove it in a downward direction "arrow B".

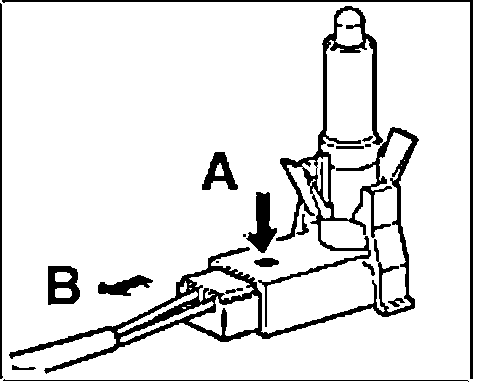

3. Release plug "arrow A" and pull it off "arrow B".

Installing Light-Emitting Diode For Alarm System

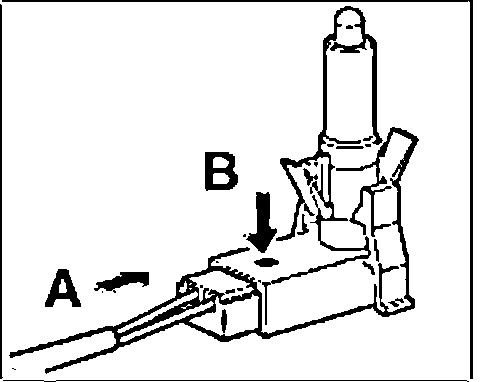

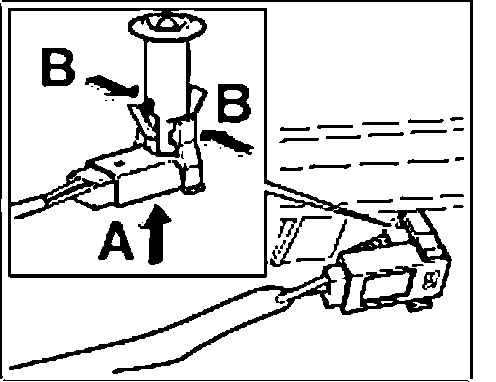

1. Connect the plug to the light-emitting diode "arrow A" until the locking tab "B" engages audibly.







2. Insert the light-emitting diode into the housing "arrow A" until the locking tabs engage audibly "arrow B".
3. Install door trim panel.
