Ultrasonic Sensor: Service and Repair

Removing And Installing Sensor For Passenger Compartment Monitoring

Removing The Sensor For Passenger Compartment Monitoring
Remove ignition key.

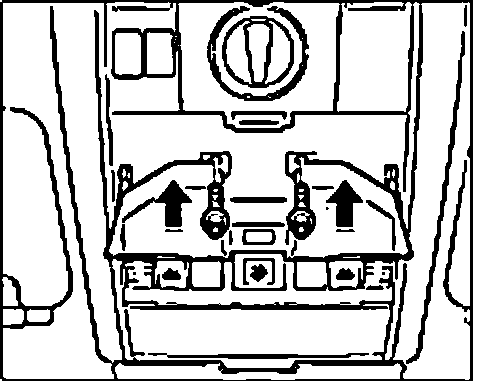

1. Removing cover for interior light. From the side of the windscreen, hold onto the center of the bulb cover and pull down the cover. Unclip the cover of the light unit and unscrew both fastening screws.
2. Open the glasses compartment, and unscrew both fastening screws.

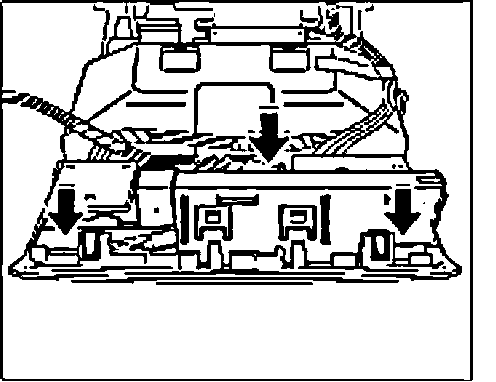

3. Detach the roof console around the sliding roof switch on the roof liner and allow it to hang down toward the front.

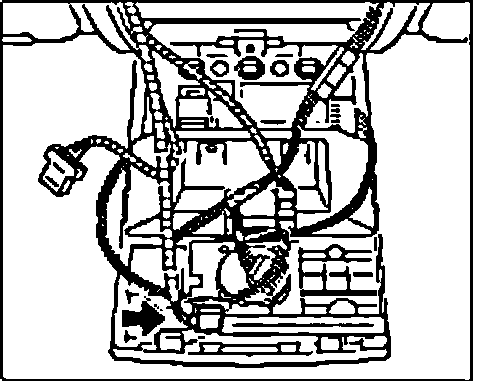

4. Press the electric connector "4" on the compartment sensor "a" and unplug.







5. Unclip the sensor from the frame of the roof console and remove it.

Installing The Sensor For Passenger Compartment Monitoring







1. Clip in the sensor in the frame of the roof console. Ensure a firm fit.







2. Connect the electrical connector "4", pressing on until it audibly clicks into place.

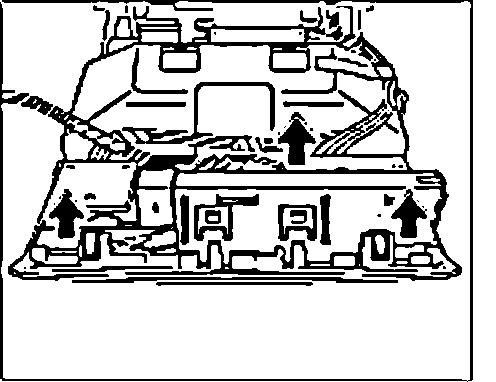

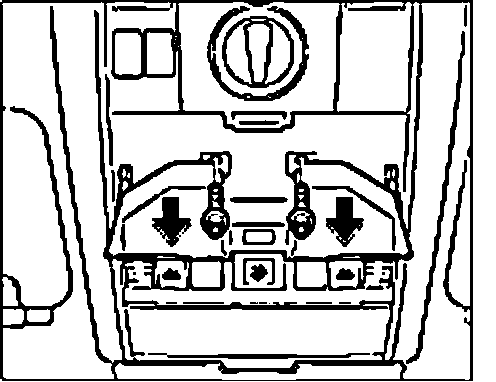

3. Fold up the roof console, clip it in the roof liner, and screw down using the four fastening screws. Close the glasses compartment and clip in the light unit cover.

NOTE: After replacing the passenger compartment sensor read out the fault memory from the central control unit for the comfort system (rear control unit) and erase.
