Cellular Phone Microphone: Service and Repair

Removing And Installing Microphone For The Telephone

NOTE:
- The microphone for the telephone is located in the roof console. In order to remove the microphone, the roof console must be completely removed.
- Remove the ignition key and switch off the radio.

Removing Microphone For Telephone







1. Removing cover for interior light. From the side of the windscreen, hold onto the center of the bulb cover and pull down the cover. Unclip the cover of the light unit and unscrew both fastening screws.

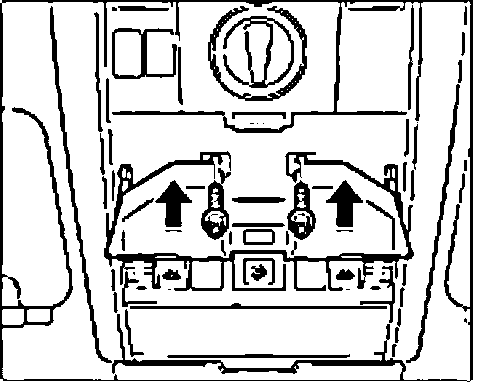

2. Open the glasses compartment, and unscrew both fastening screws.

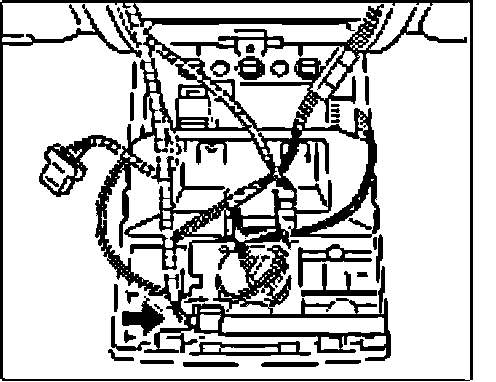

3. Detach the roof console around the sliding roof switch on the roof liner and allow it to hang down toward the front.







4. Press the electric connector "1" on the printed circuit board "a" and unplug.
5. Press the electric connector "2" on the control unit for the garage door opener "a" and unplug.
6. Disconnect the electrical plug "3".
7. Press the electric connector "4" on the compartment sensor "a" and unplug.
8. Disconnect the electrical plug "5".

NOTE: The number of plug connections can vary, depending on the vehicle equipment. Disconnect all plug connections for removing the roof console.

9. Detach the roof console and place it on a suitable surface to avoid scratches or other similar damage.

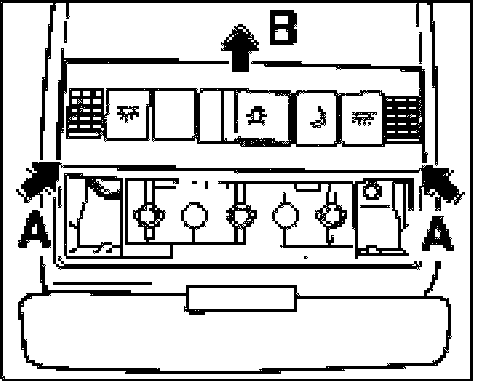

10. Carefully unclip the switch panel with your fingers on the left and right "A", then unclip it from the outside to the inside "B".

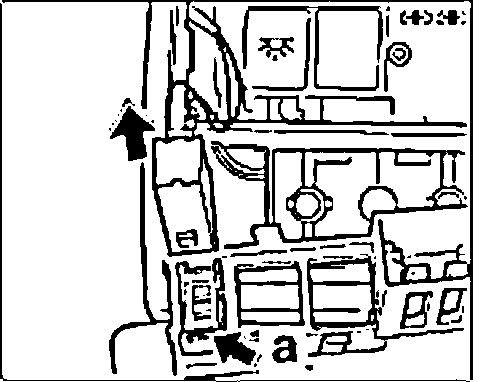

11. Turn switch panel around, pull the catch "a" forward and take out the microphone from the mounting point.

Installing Microphone For Telephone

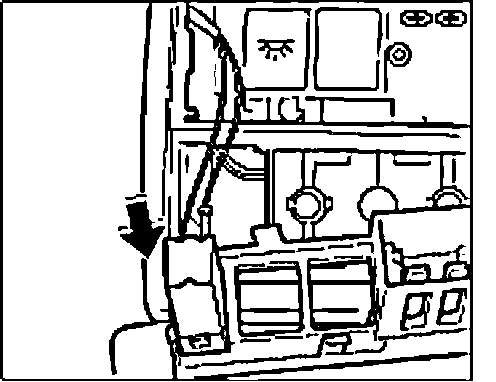

1. Insert the microphone in the switch panel and press down until the microphone engages.

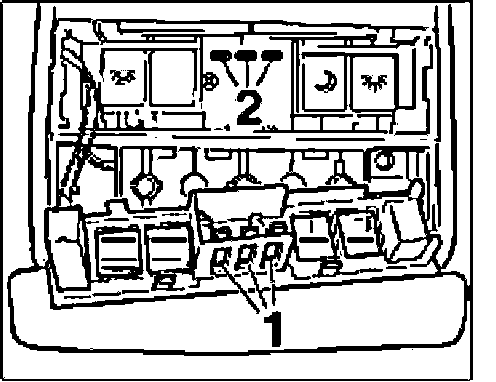

2. Insert the cover molding in the roof console and press on it carefully, making sure that the three pins "!" engage into the mounting point "2".

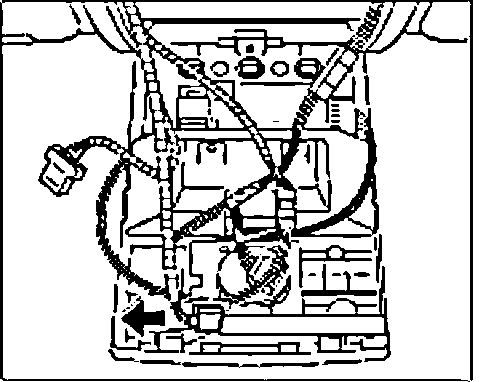

3. Engage the roof console on the roof liner and plug in all electrical plug connections "1, 2, 3, 4, 5" until the plugs audibly click into place.

NOTE: Observe the line routing, danger of pinching.

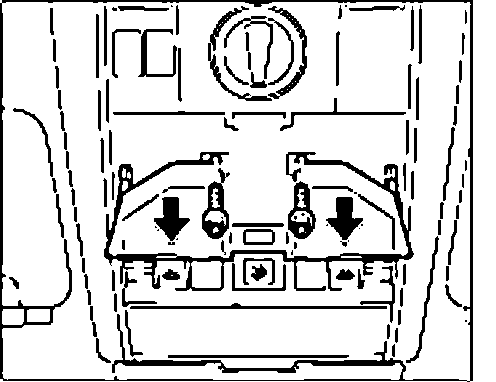

4. Fold up the roof console, clip it in the roof liner, and screw down using the four fastening screws. Close the glasses compartment and clip in the light unit cover.
5. Switch on ignition and check the proper function of the telephone microphone.
