Removing And Installing Display For ParkAssist

Removing And Installing Display For ParkAssist
The warning display for the front area is located on the dashboard.

The warning display for the rear area is located on the headliner in the rear.

The warning displays for the different monitoring areas (left and right) are each divided into 1 green, 4 yellow and 2 red LED segments.

NOTE: Switch off ignition and remove ignition key.

Removing Display For ParkAssist

Removing front display

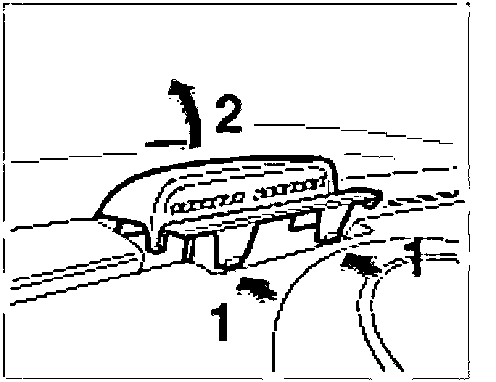

1. Lift cover on dashboard using plastic spatula "2" and unclip "1".

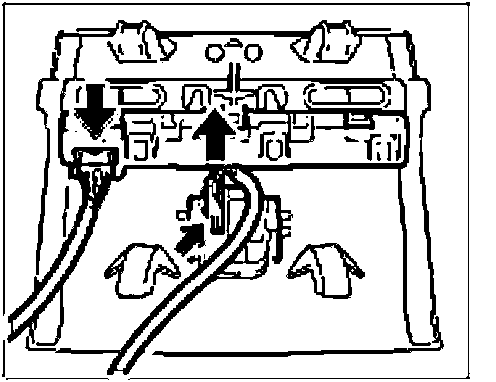

2. Disconnect plug connections for sun sensor and display field.

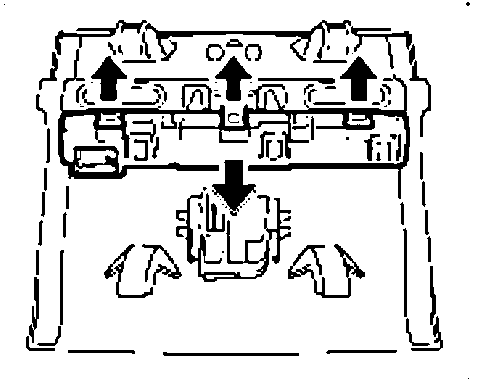

3. Lift the three cover retaining clips and remove display field.

Removing rear display

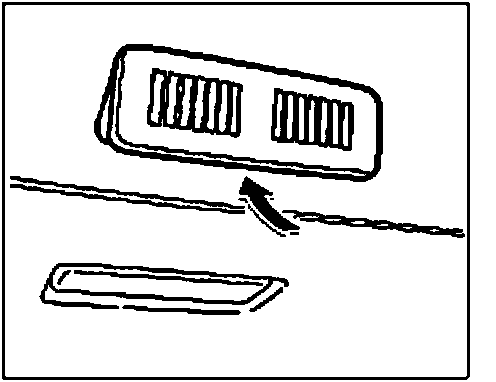

1. Carefully lift and unclip display field from headliner using a plastic spatula.

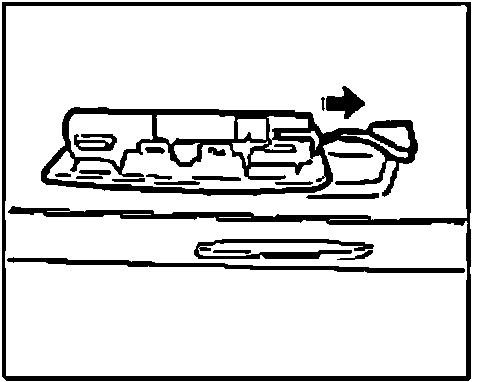

2. Disconnect electrical plug connection for display field.

Installing Display For ParkAssist

Installing front display

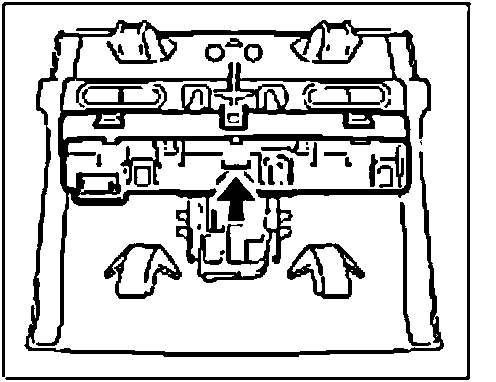

1. Insert display field into holder and fasten with the three retaining clips.

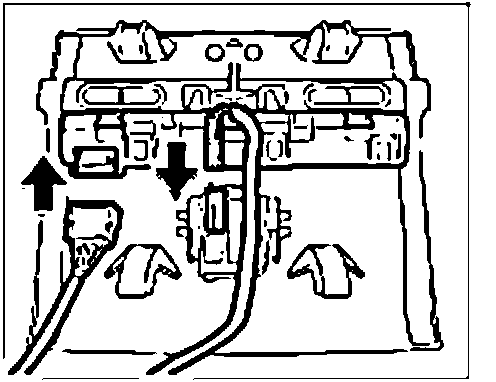

2. Connect plug connections for sun sensor and display field so that plugs are felt to engage.
3. Position cover "1" and clip into dashboard "2".

Installing rear display







1. Connect electrical plug connection for display field so that plug is felt to engage.

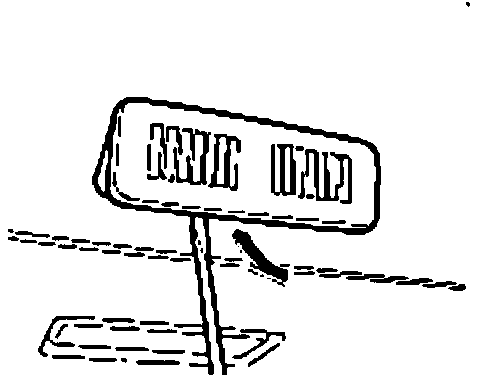

2. Position display on headliner and clip in.
