MMI Actuators

MMI Actuators

Drive links of the PCM2 can be activated with this menu item. This allows the function of the drive links to be assessed very quickly.

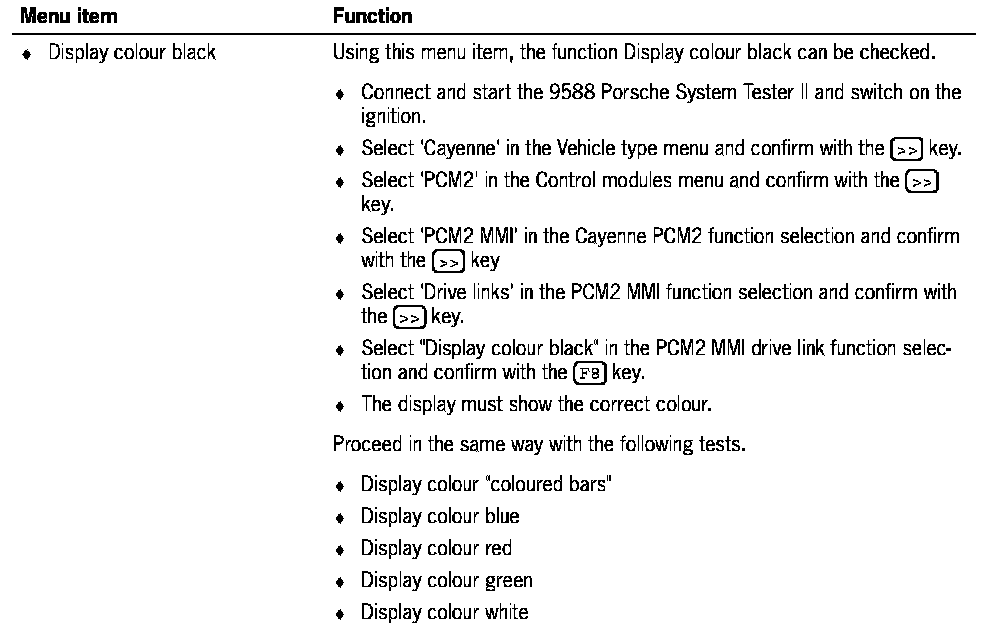

The following drive links can be activated with the 9588 Porsche System Tester II:
- Display colour black
- Display colour "coloured bars"
- Display colour blue
- Display colour red
- Display colour green
- Display colour white

NOTE: The activated drive link is automatically switched off after approximately 20 seconds.
