635719 Removing and Installing Rear Retaining Strip

Removing And Installing Rear Retaining Strip

Technical values







Preliminary work

1. Remove rear apron. Refer to Removing and installing rear apron

Removing rear retaining strip

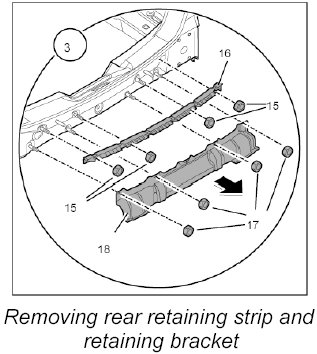

Removing rear retaining strip and retaining bracket

1. Remove rear retaining strip and retaining bracket.







1.1. Unscrew fastening nuts -15-.
1.2. Remove rear retaining strip -16-.
1.3. Unscrew fastening nuts -17-.
1.4. Remove retaining bracket -18-.

Installing rear retaining strip

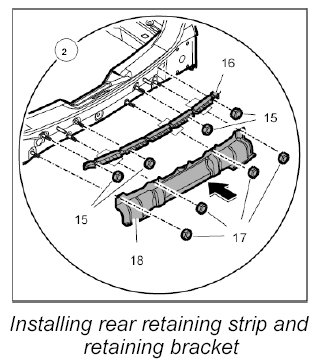

Installing rear retaining strip and retaining bracket

1. Install rear retaining strip and retaining bracket.







1.1. Position rear retaining strip -16-.
1.2. Screw in and tighten fastening nuts -15-. Tightening torque: 2 Nm (1.5 ftlb.) ± 0.5 Nm (±0.5 ftlb.)
1.3. Fit retaining bracket -18-.
1.4. Screw in fastening nuts -17-. Tightening torque: 2 Nm (1.5 ftlb.)+0.5 Nm (+0.5 ftlb.)

Subsequent work

1. Install rear apron. Refer to Removing and installing rear apron
