708519 Removing and Installing Rear Roof Lining


WM 708519 Removing and installing rear roof lining

Removing rear roof lining

Removing rear headliner









Information

In order to reduce the unclipping forces and thereby the risk of damage during removal, the process must take place at the accessible connection points using a suitable tool.

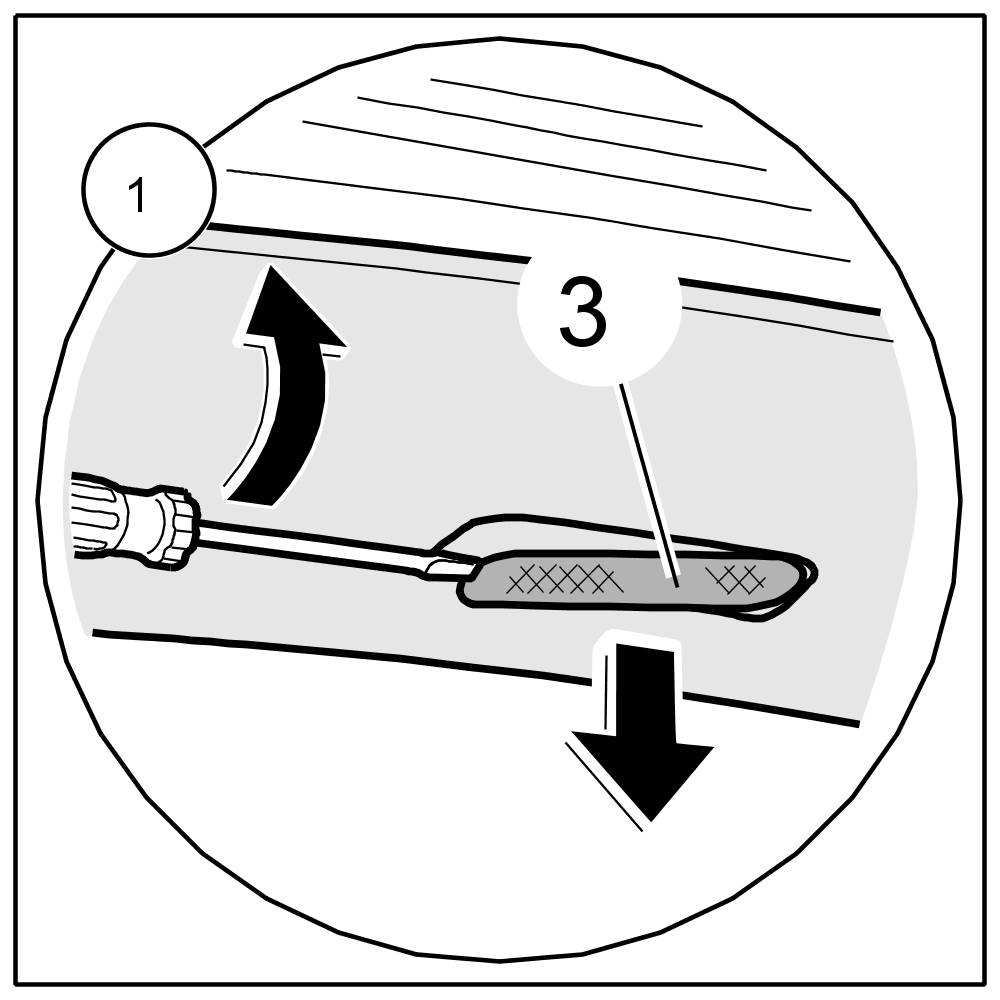

1. Unclip courtesy lights -3- on the headliner.

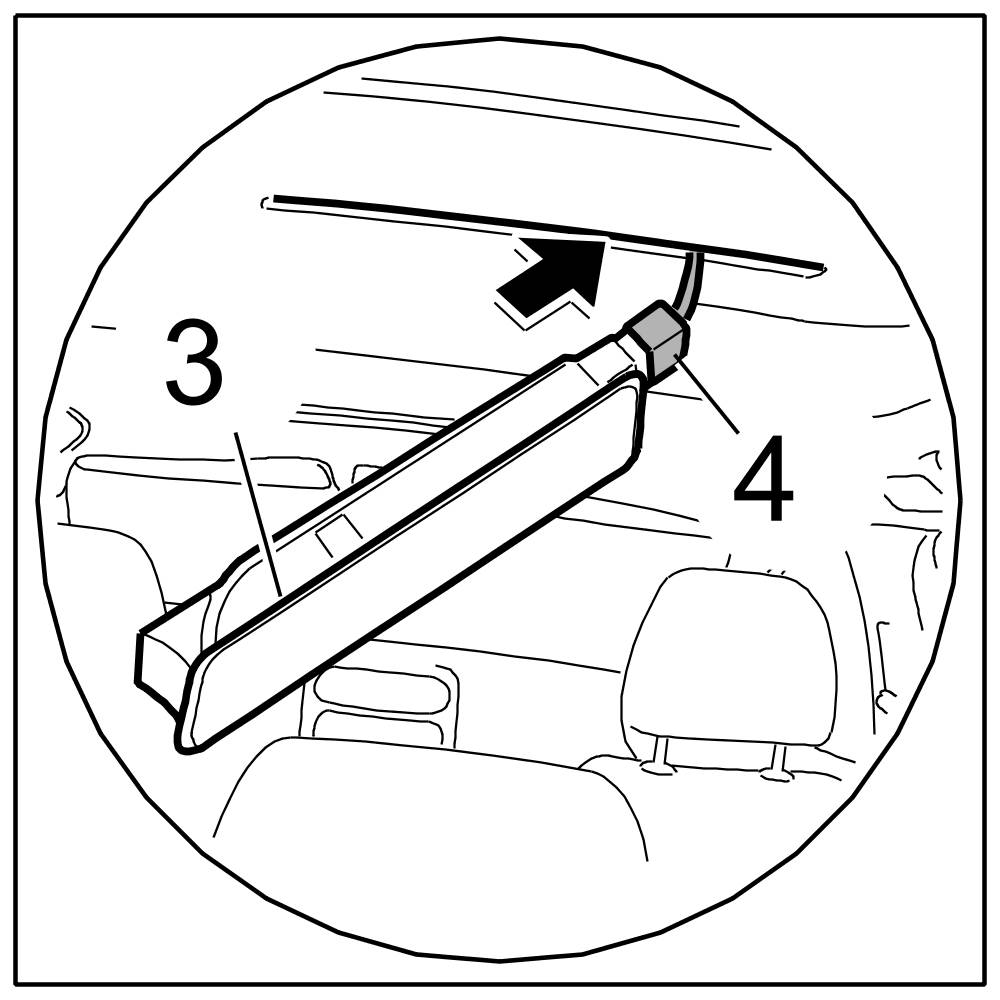

2. Pull off plug -4-.

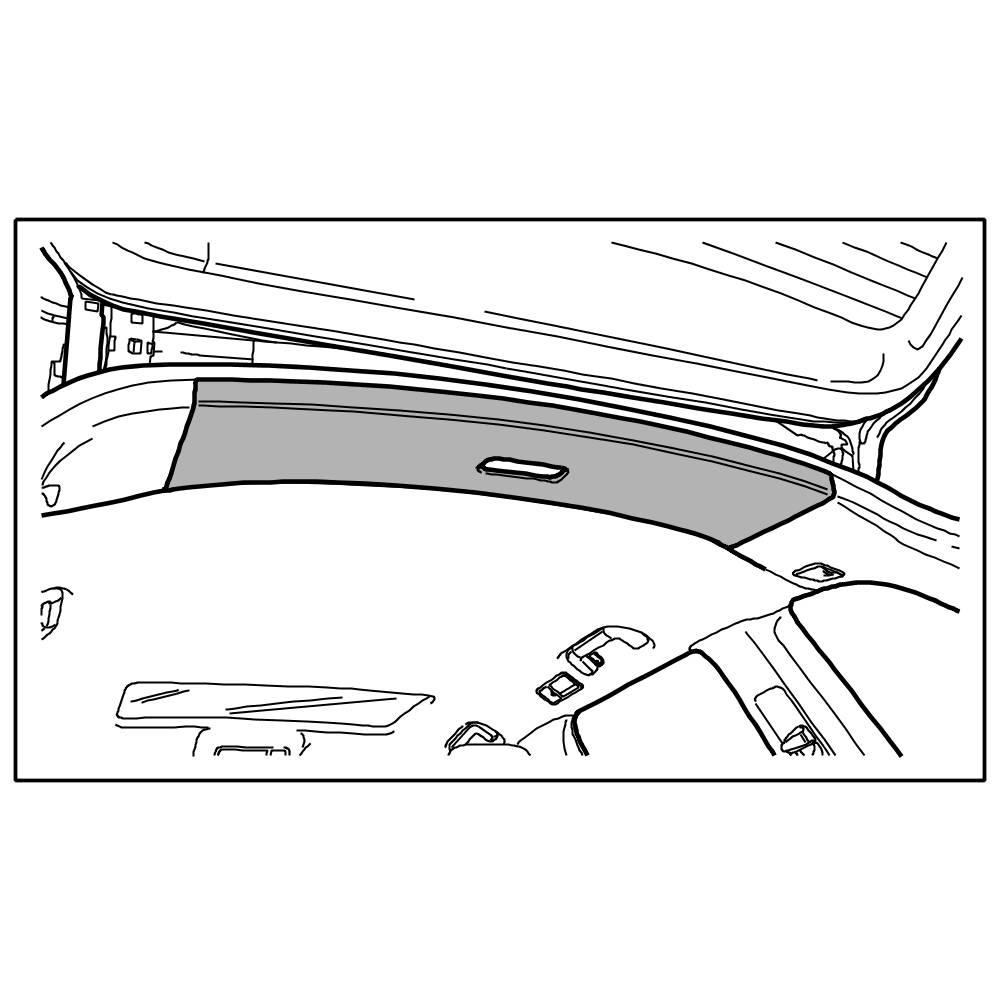

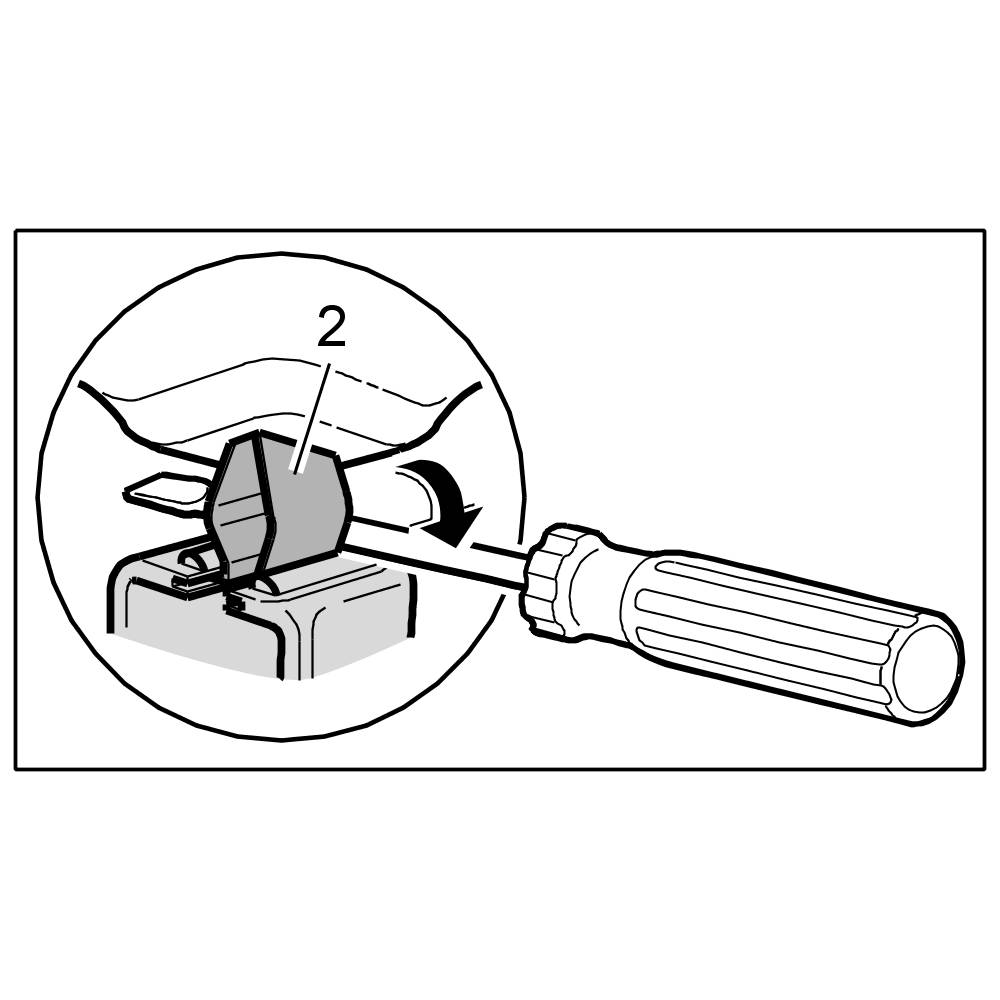

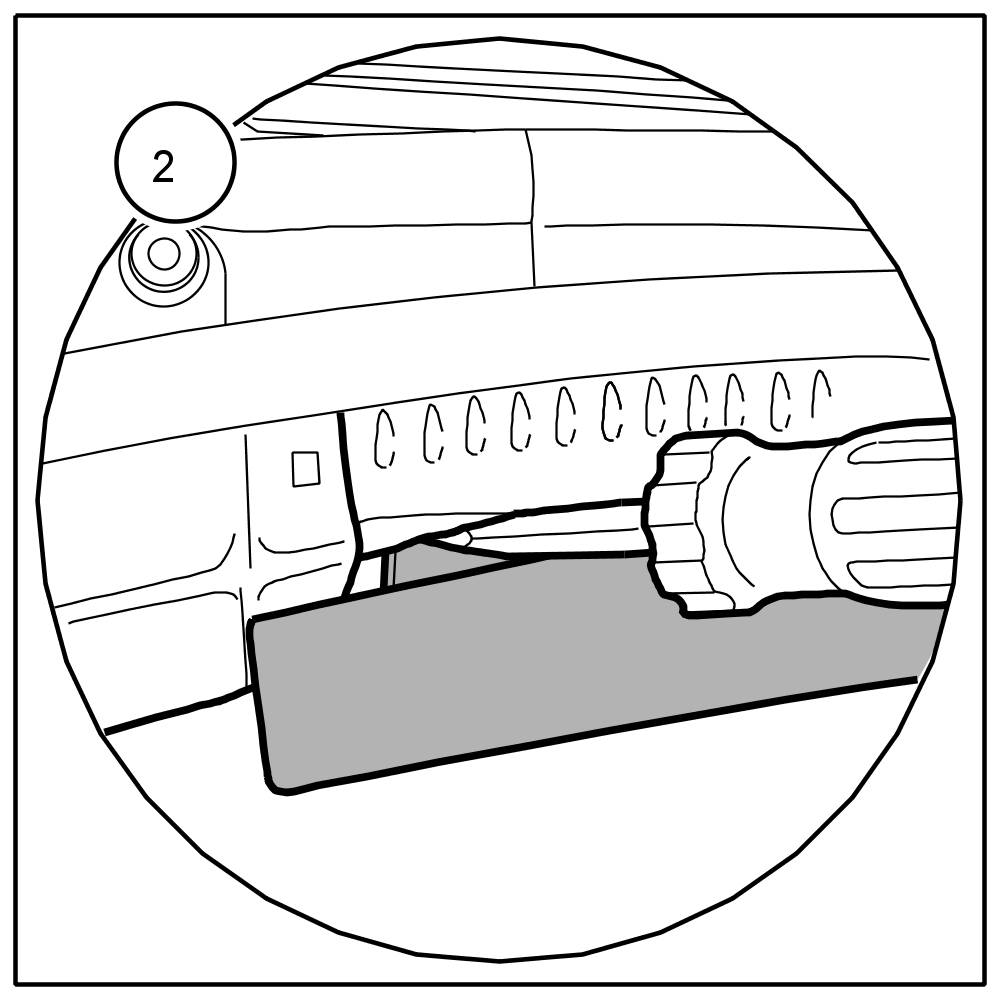

3. Unclip headliner at marked positions. To do so, lift the lining slightly at the rear and lever the clip connection -2- out using a screwdriver.









Installing rear roof lining

Installing rear headliner

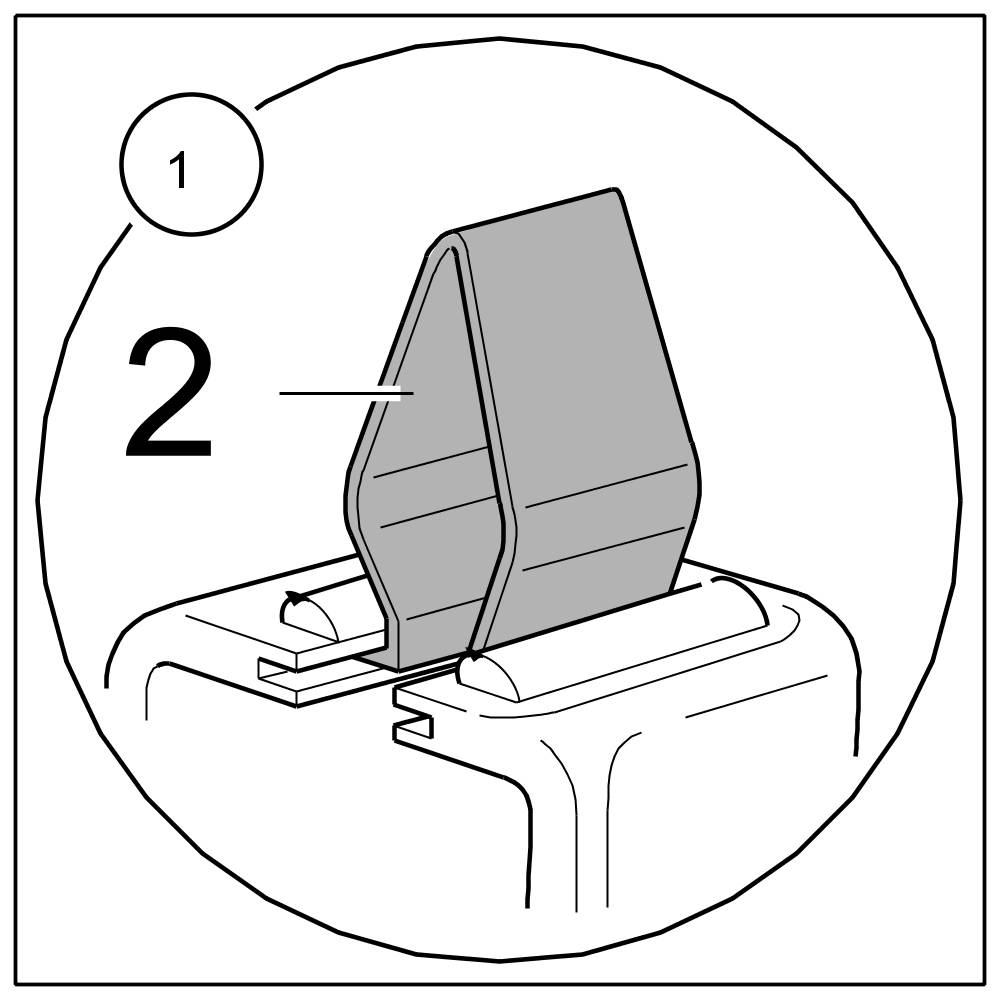

1. Check fixing clips -2- for deformation, replacing if necessary.





2. Clip headliner into the steel frame at the marked positions.

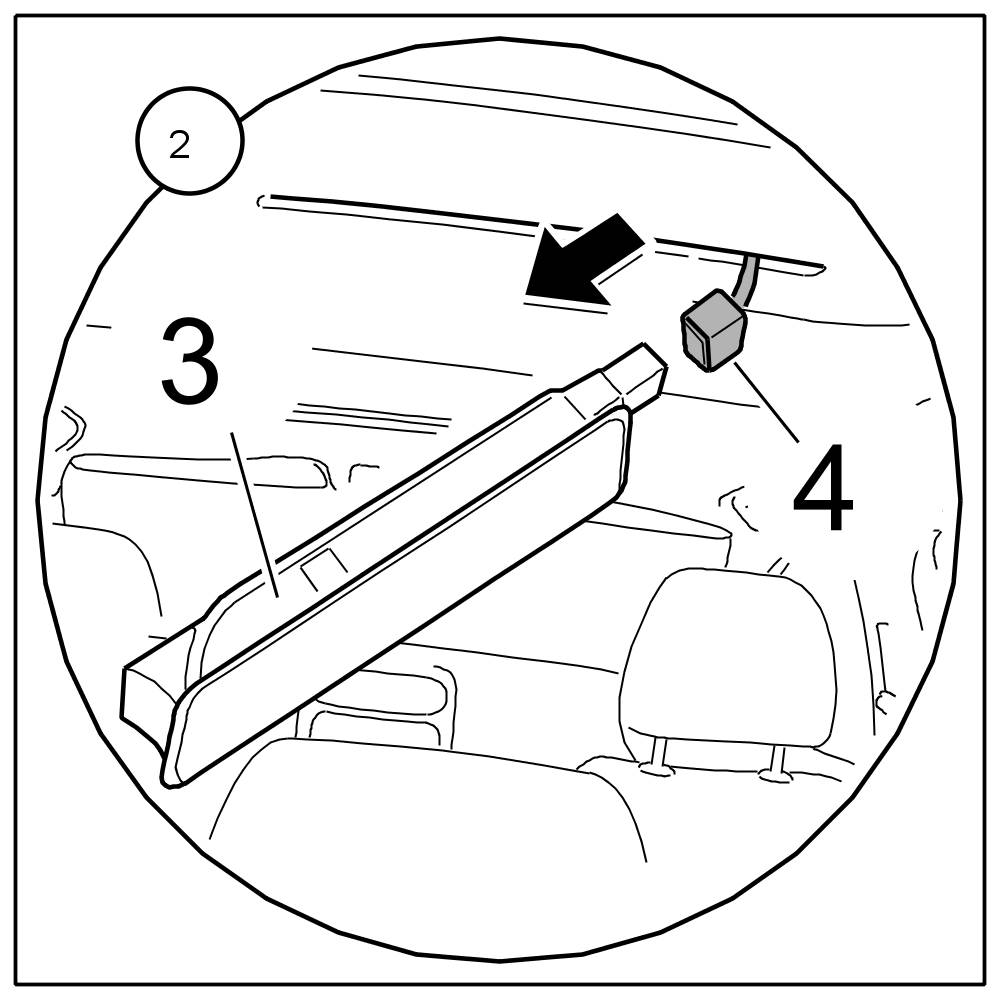

3. Connect plug -4-.





4. Connect interior light -3- at the roof connection.
