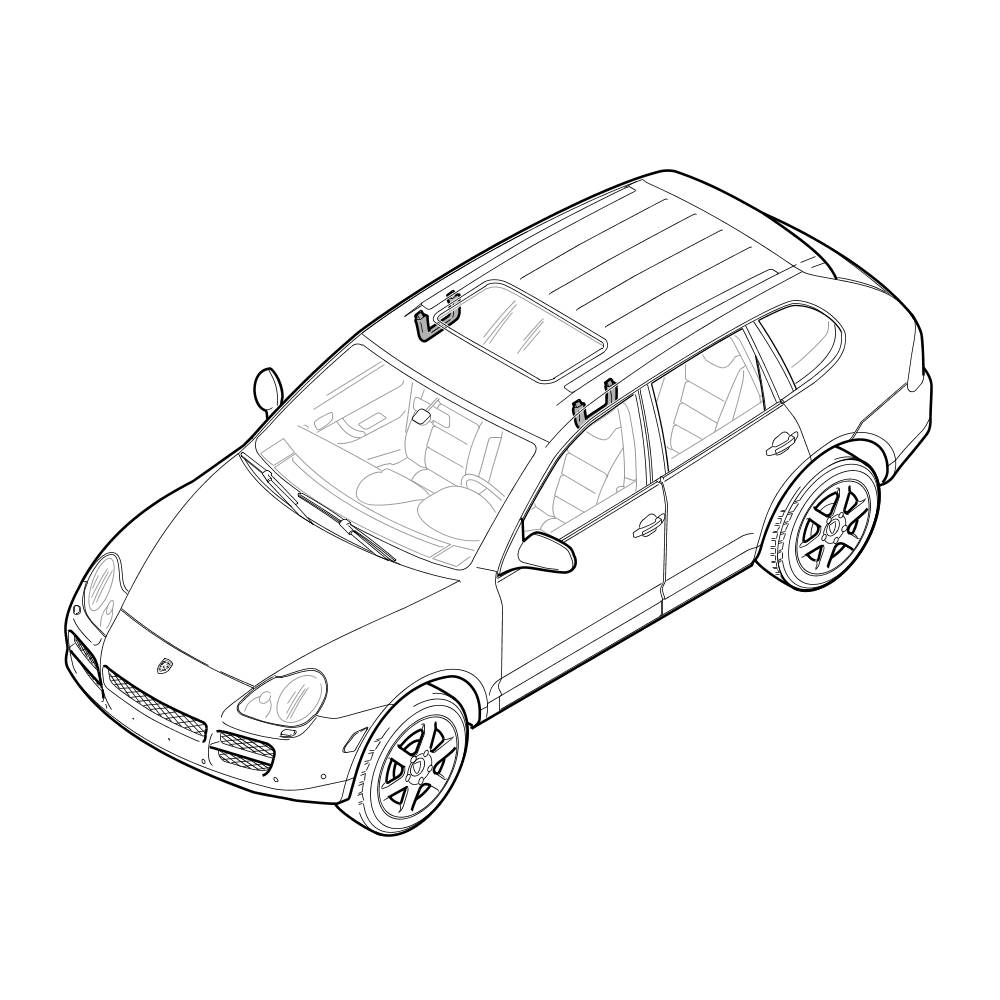

683519 Removing and Installing Front Handle

WM 683519 Removing and installing front handle

Technical values





Removing front handle

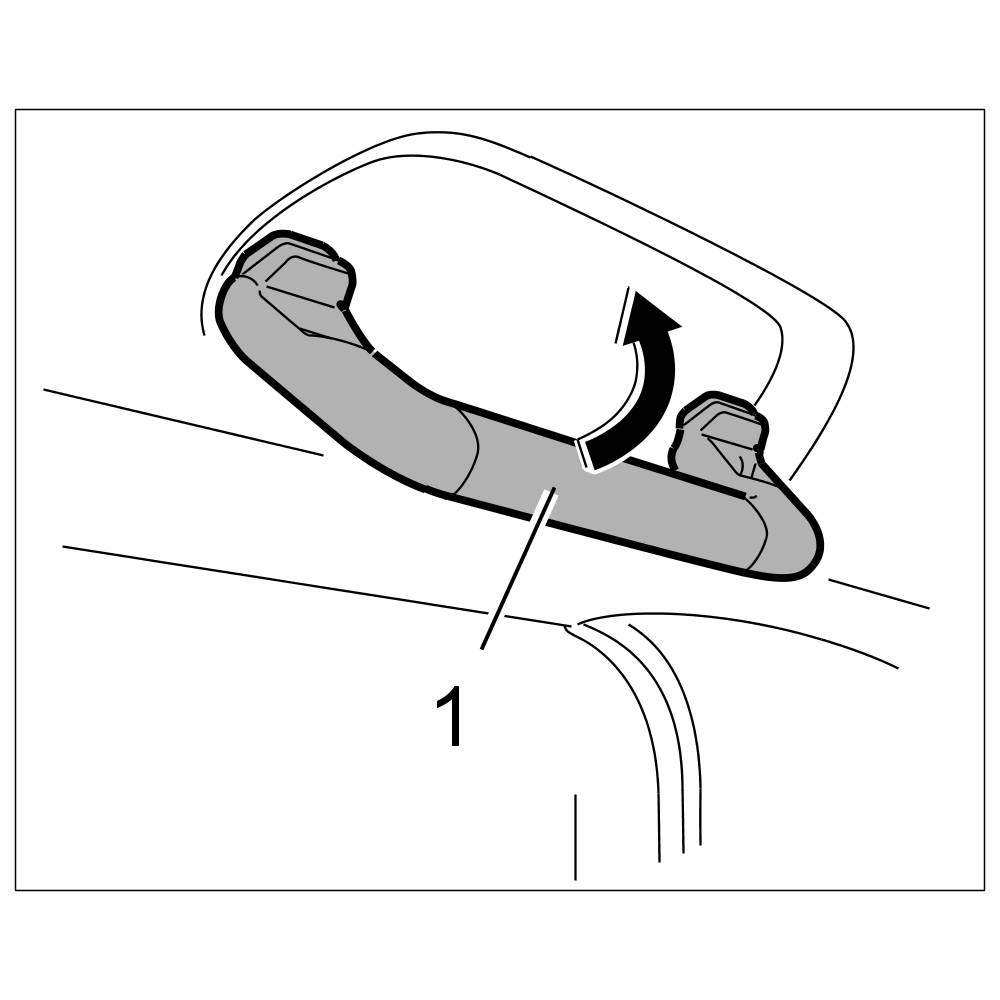

1. Unfold handle -1-.

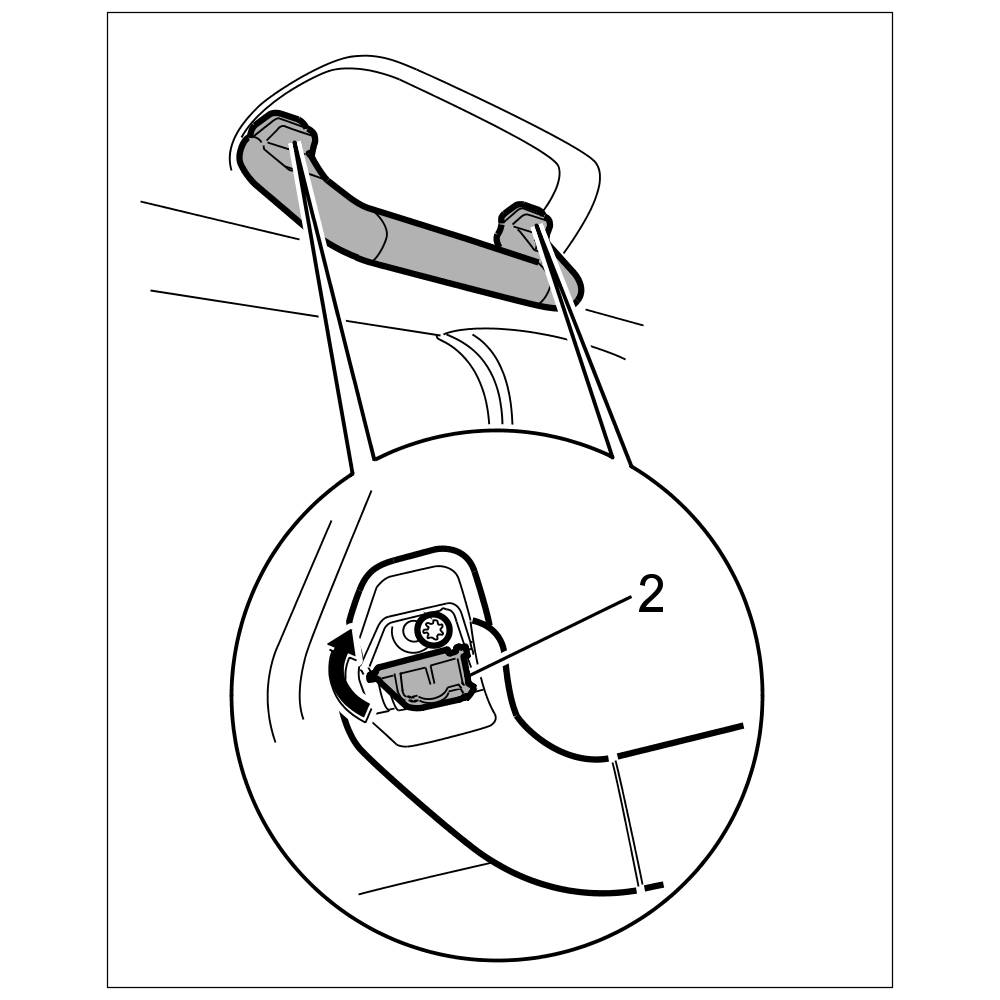

2. Unclip cover -2-.

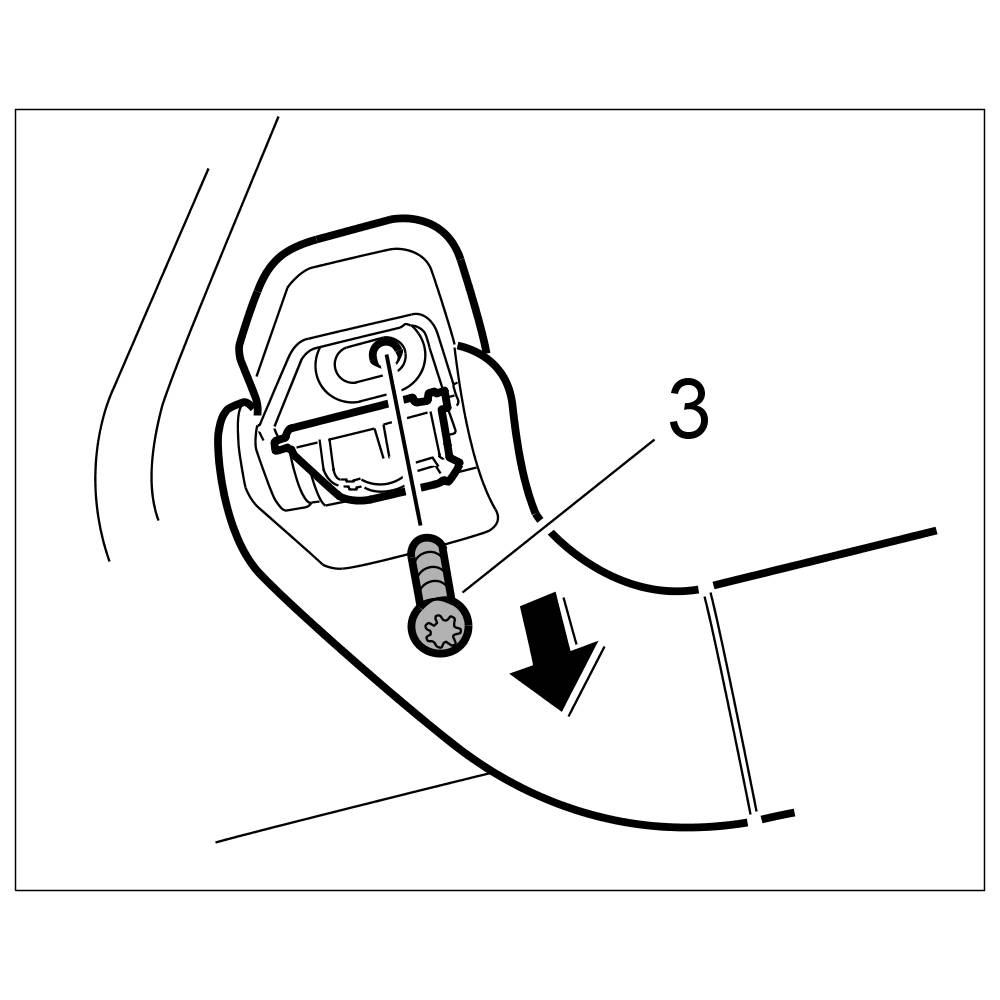

3. Undo fastening screws -3-.

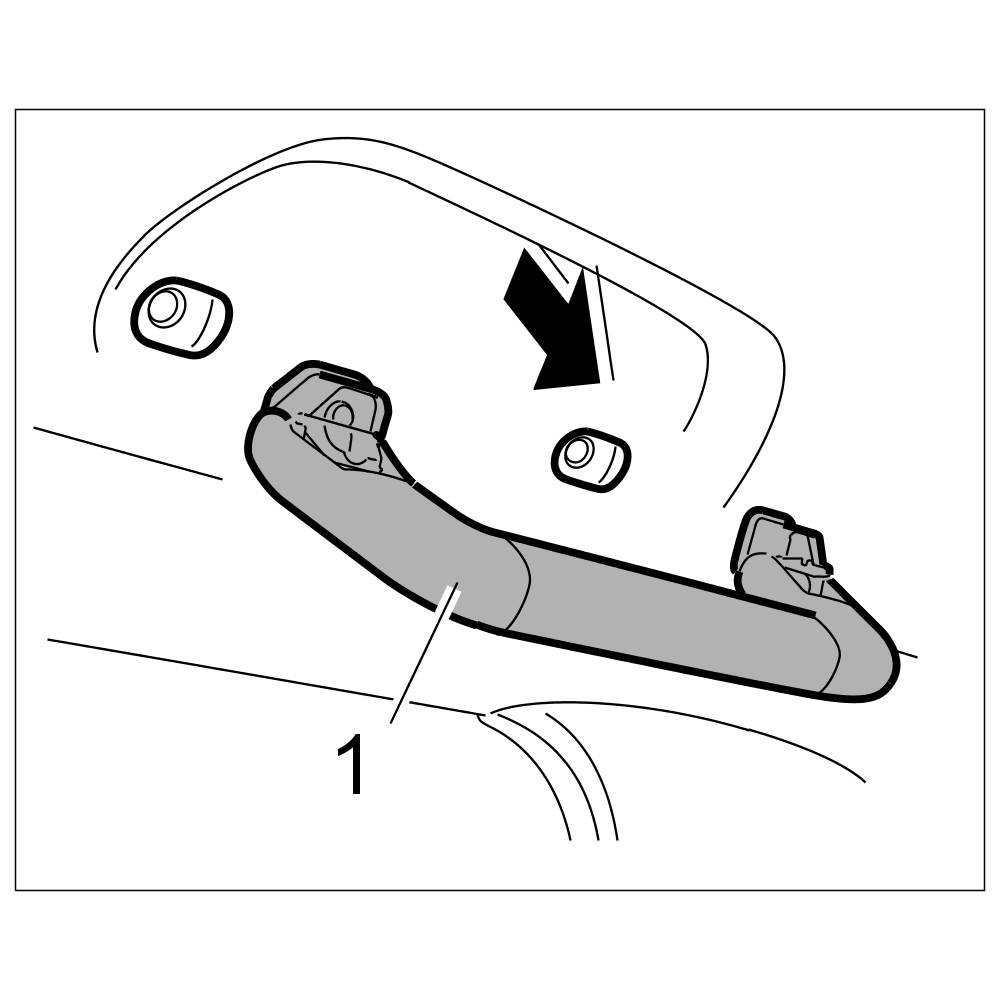

4. Remove handle -1-.





Installing front handle





1. Position handle -1-.

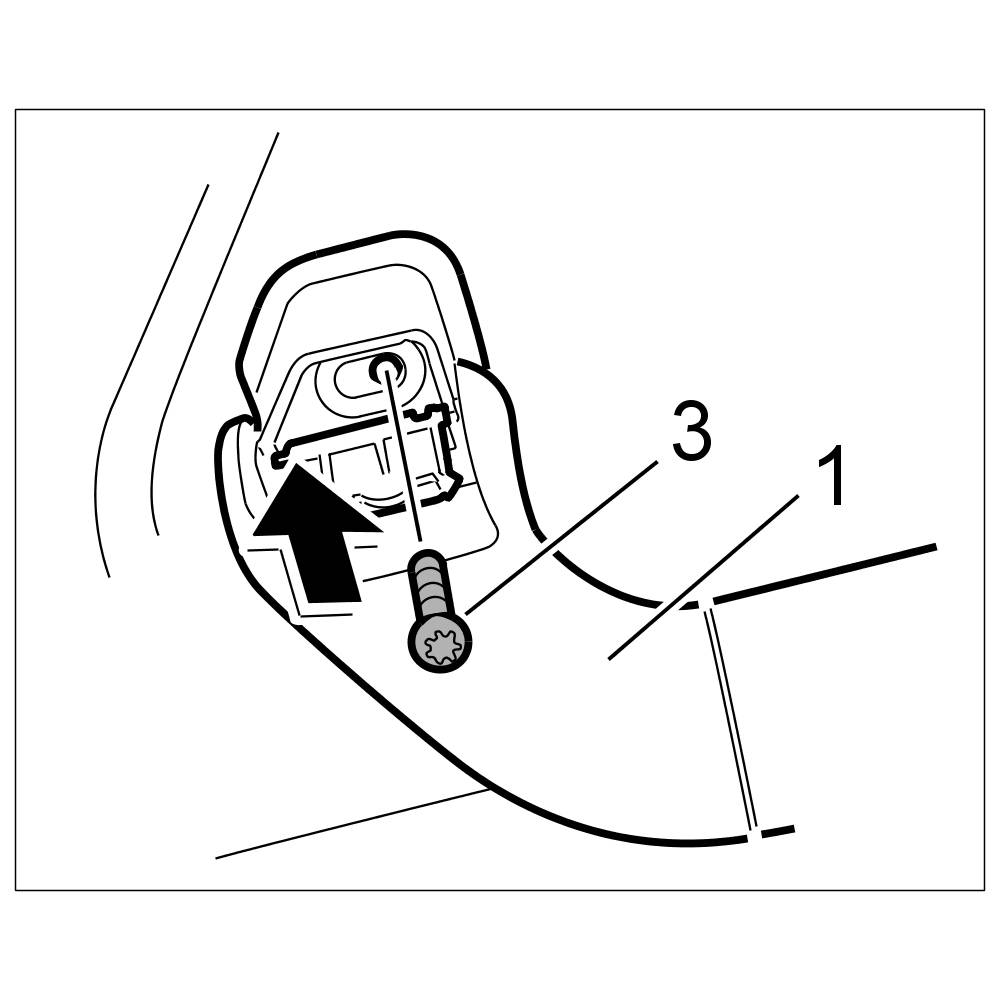

2. Screw in and tighten fastening screws -3-. => Tightening torque: 3.5 ftlb.

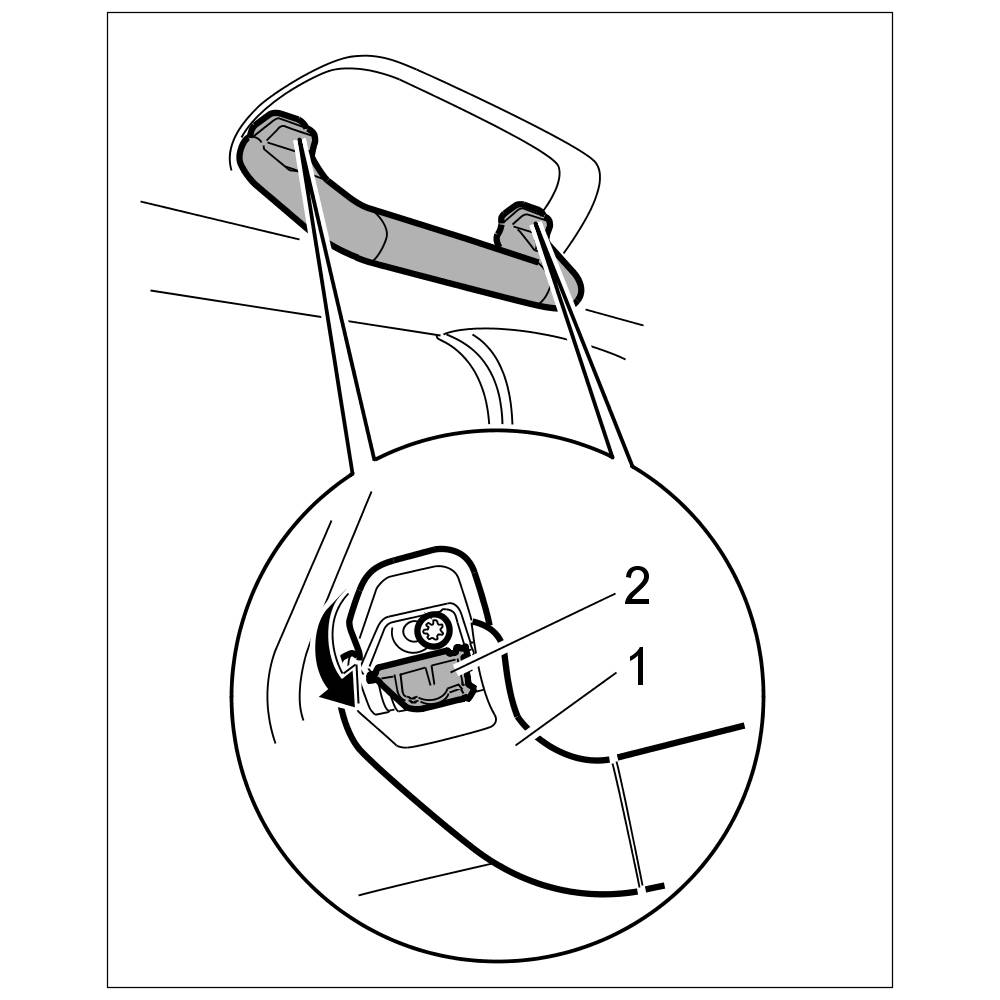

3. Clip in cover -2-.





Information

The handle must return itself to a normal position after it is released!

4. Fold in handle -1-.
