683719 Removing and Installing Rear Handle

WM 683719 Removing and installing rear handle

Technical values





Removing rear handle

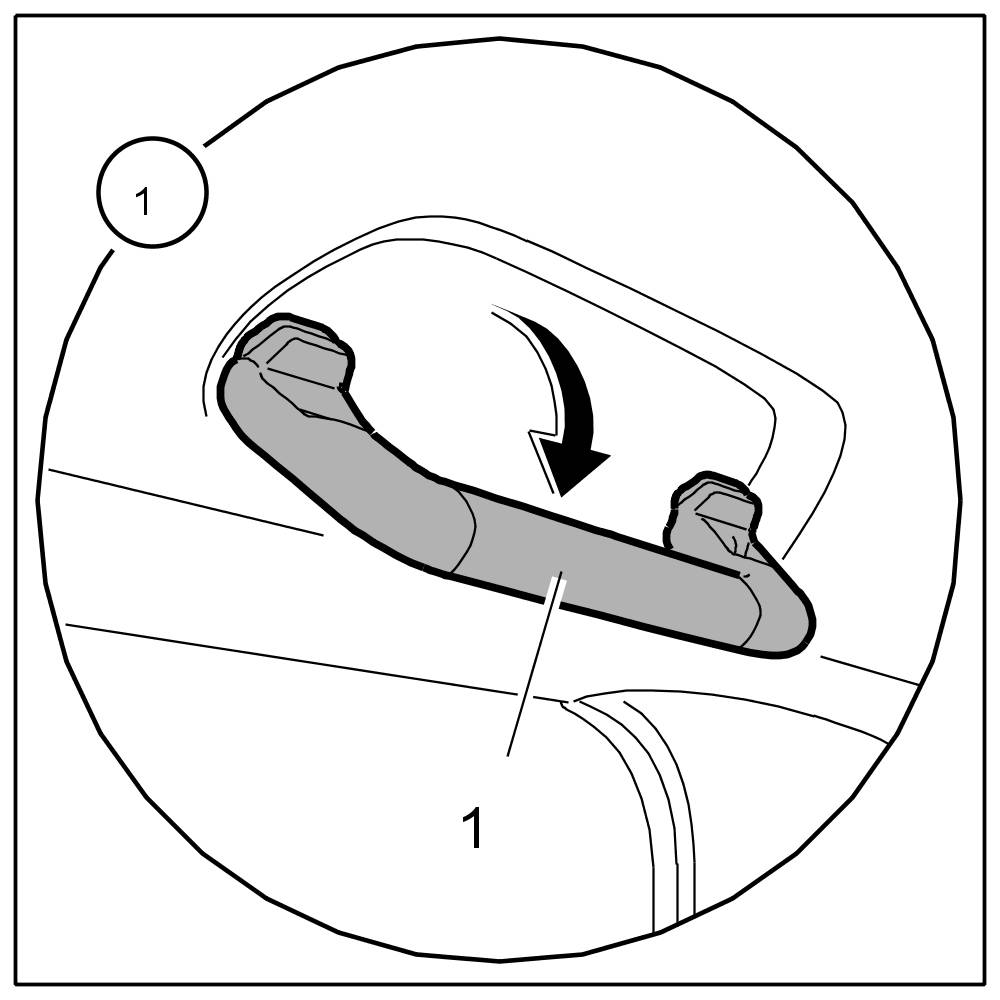

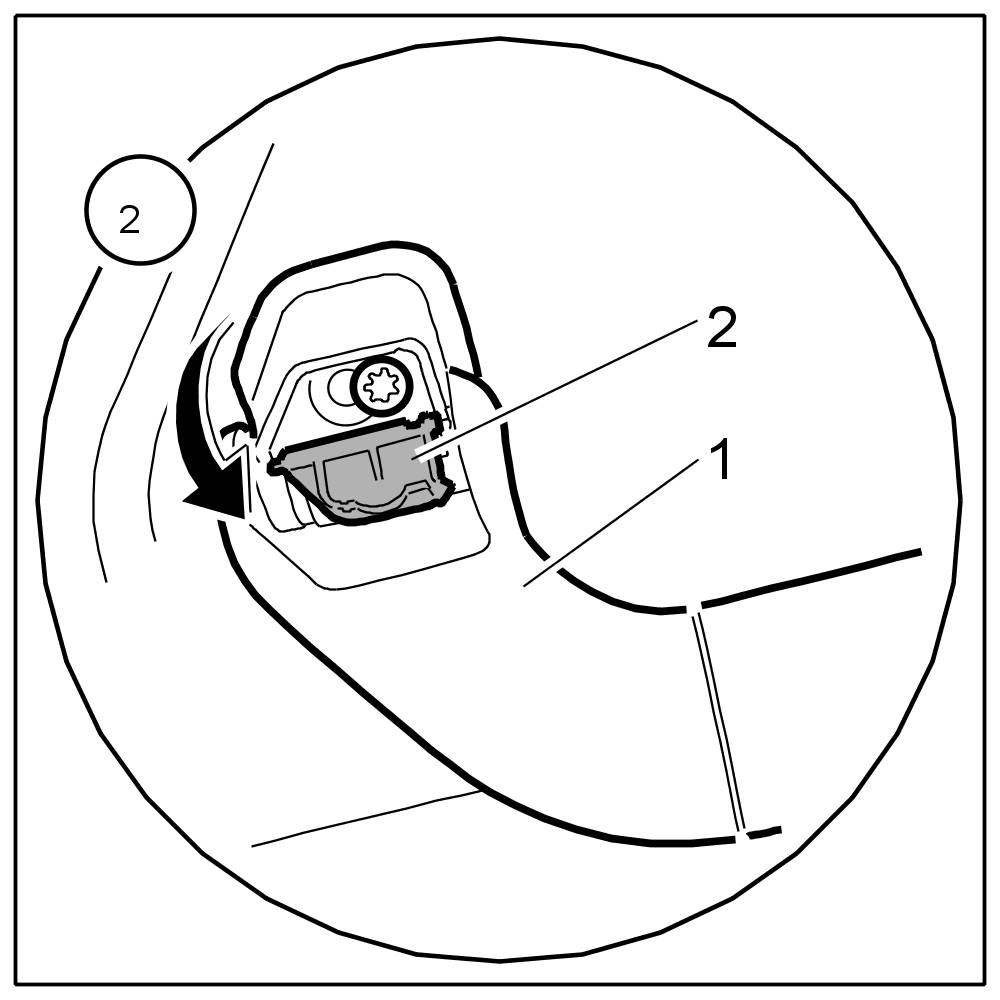

1. Unfold grab handle -1-.

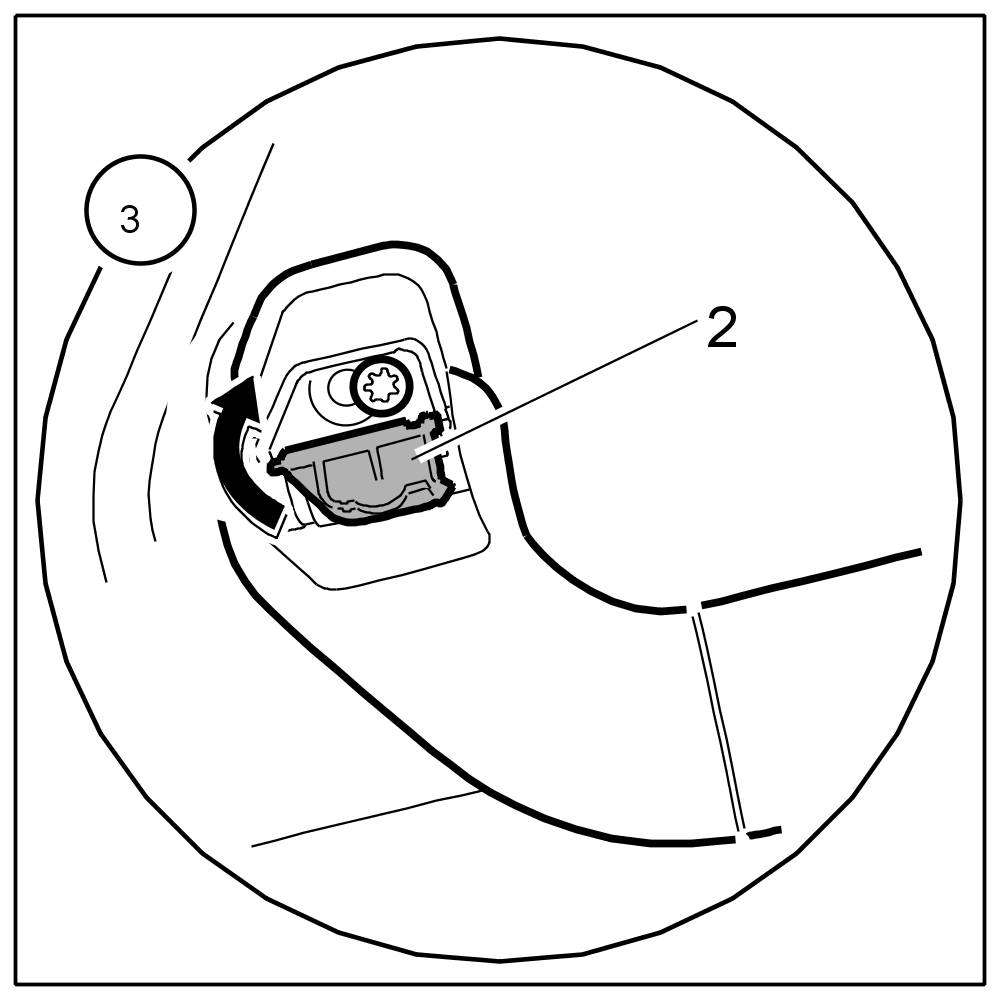

2. Unclip cover -2-.

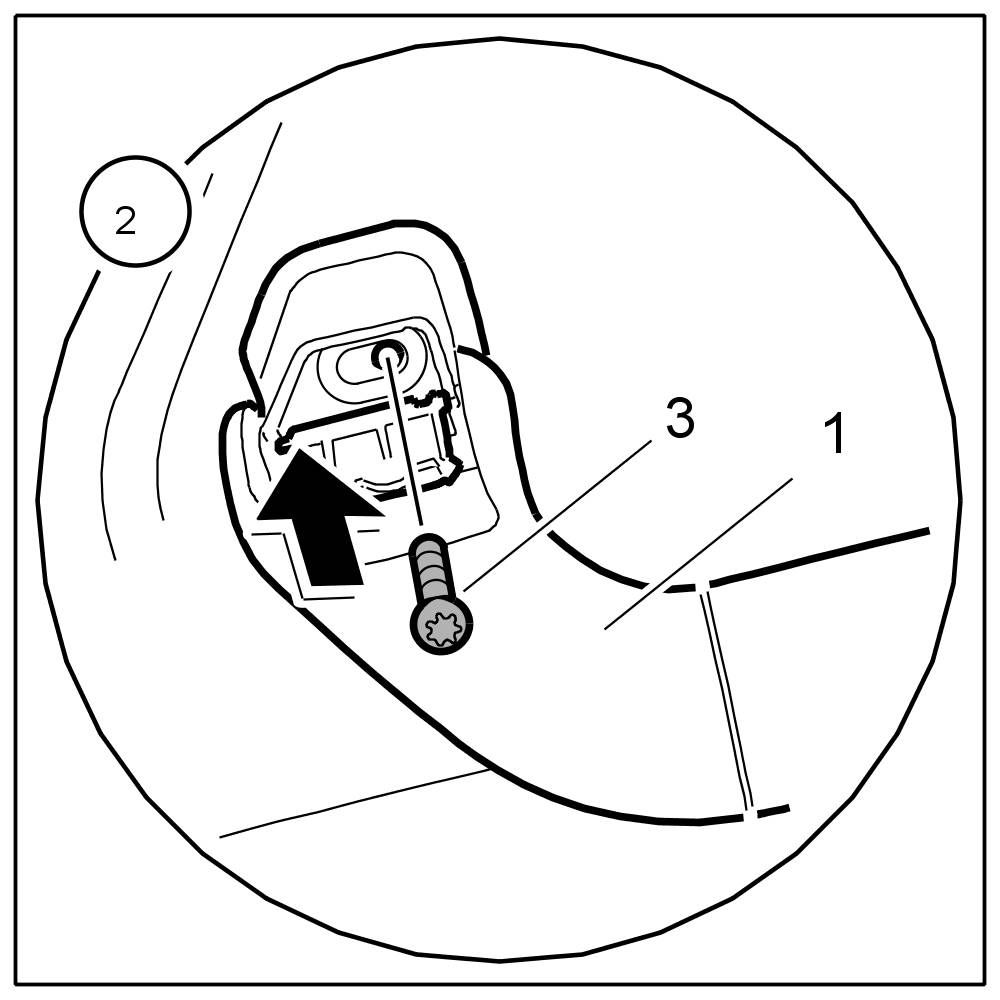

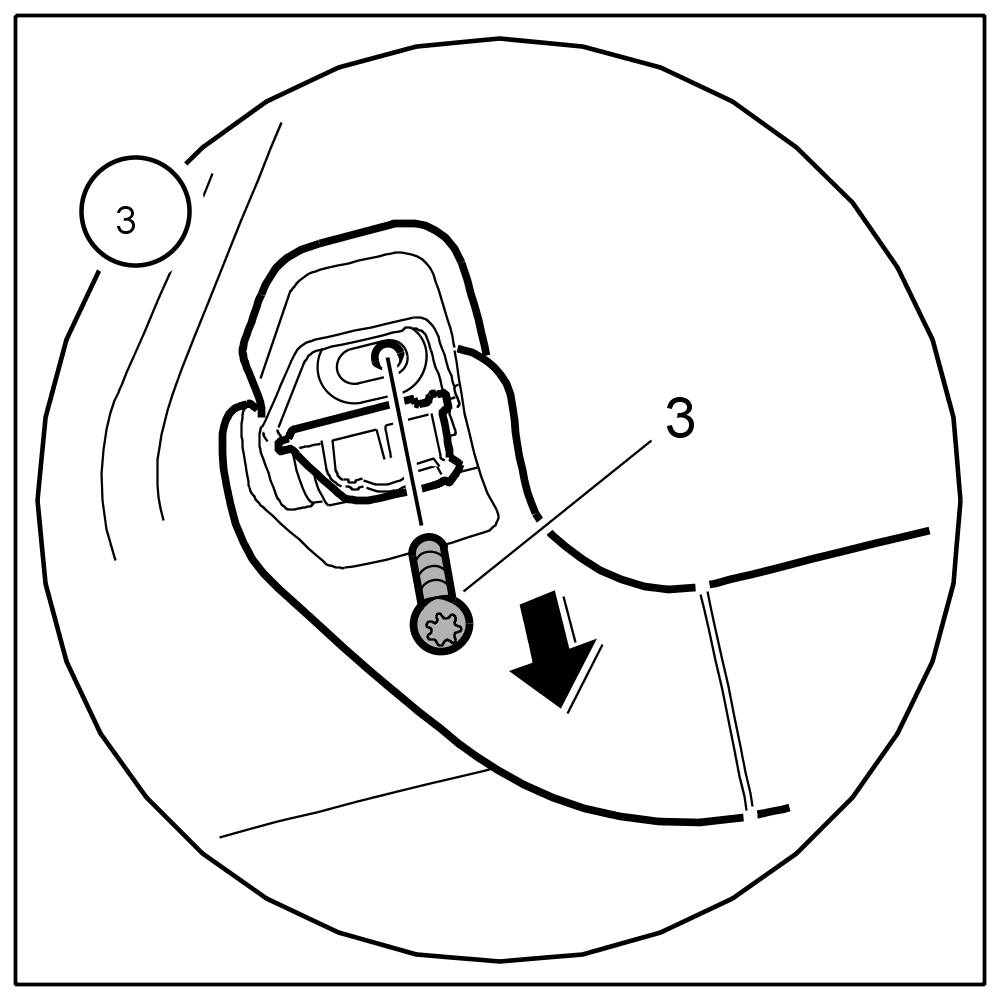

3. Undo fastening screws -3-.

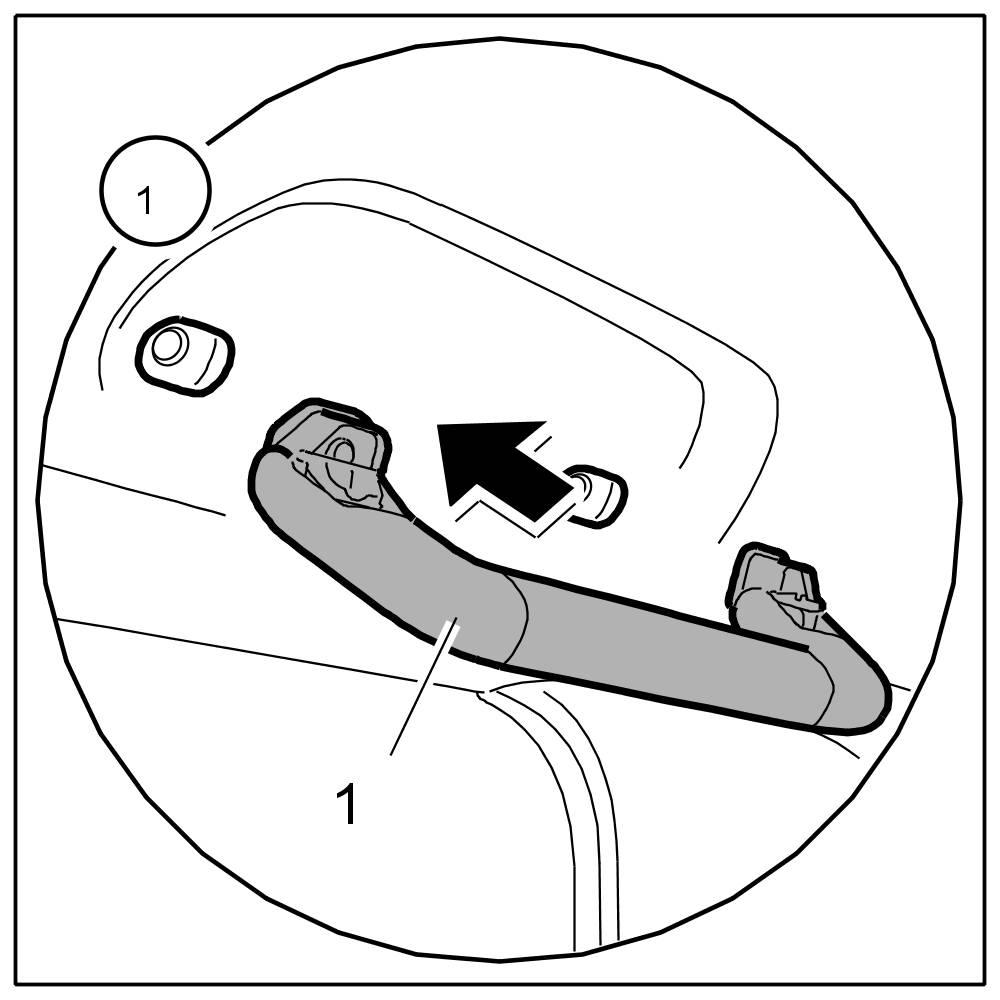

4. Remove grab handle -1-.





Installing rear handle

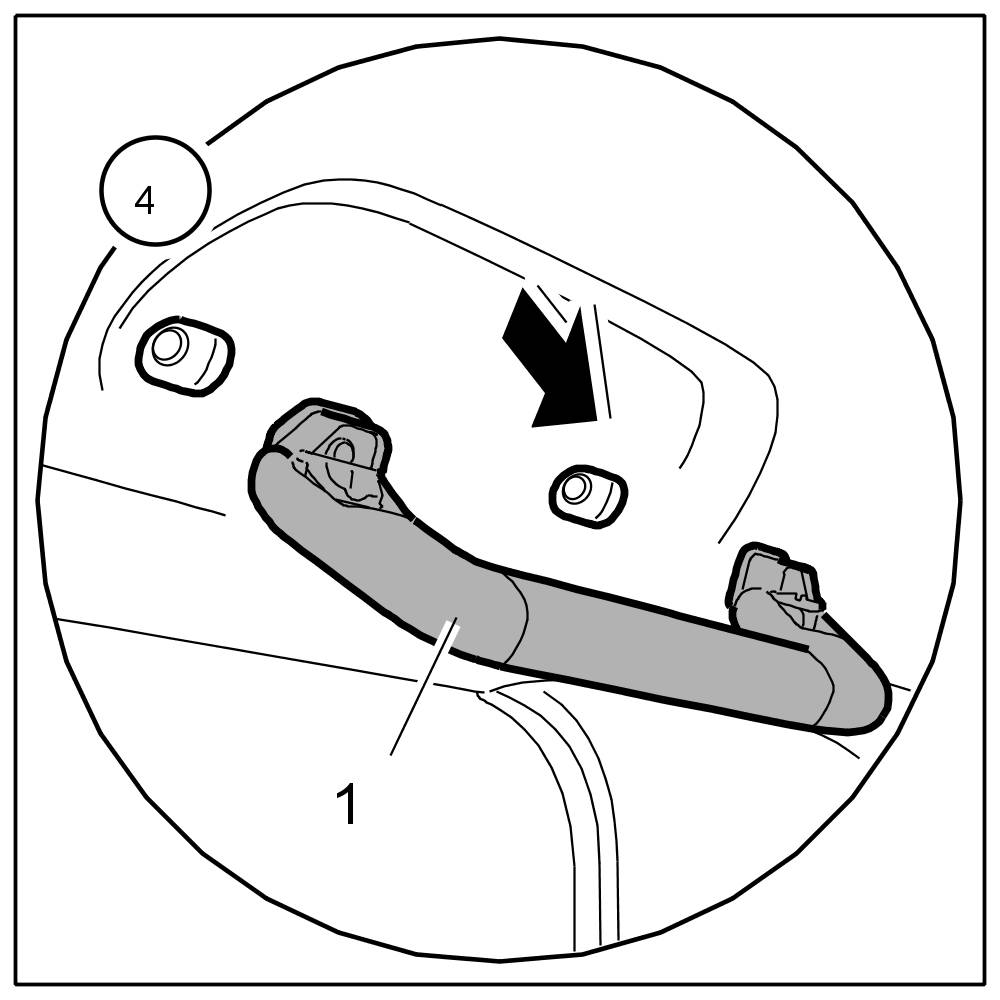

1. Position grab handle -1-.





2. Screw in fastening screws -3- and tighten to the specified torque. => Tightening torque: 3.5 ftlb.





3. Clip in cover -2-.

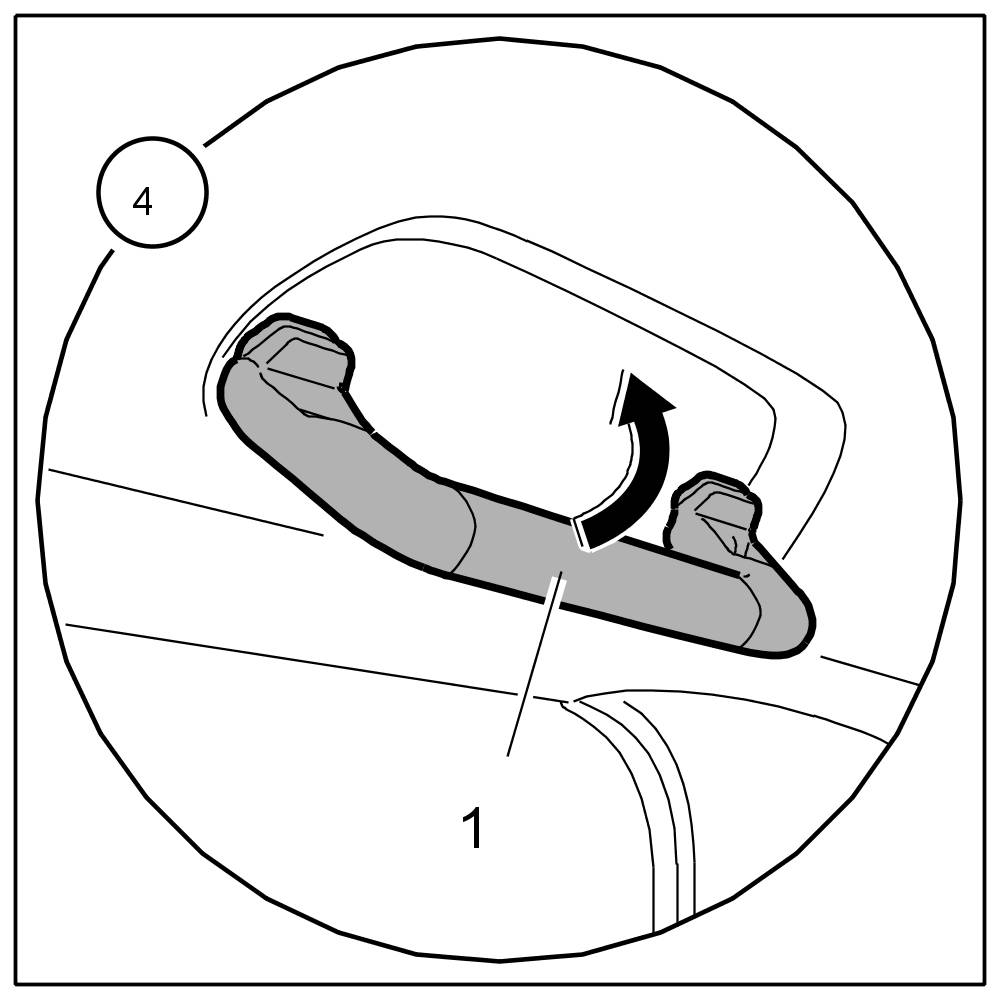

4. Fold in grab handle -1-.
4.1. Check whether the grab handle automatically folds back to the normal position after it is released.
