Luggage / Roof Rack Frame: Description and Operation

Roof Transport System (RTS)

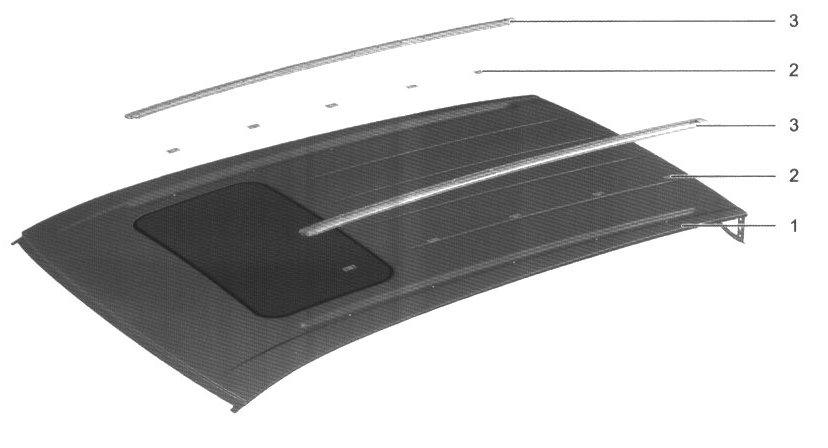

The Cayenne also offers the option of a roof transport system (RTS). The design is specially created for the profile of the Cayenne. The profile track for the various constructions is installed flat in the side roof ducts and made of aluminum.

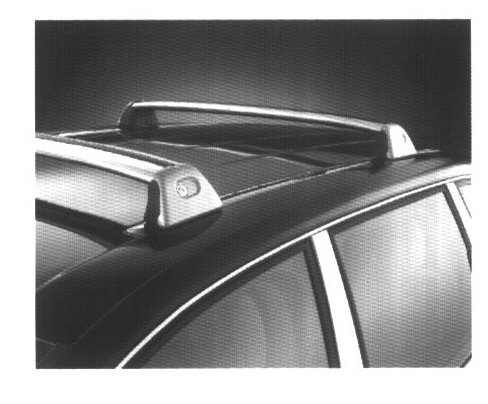

To assemble the roof transport system, the supports are set on the profile track near the B-column with the fasteners. The optimized construction means that the track and the surface will not be damaged. The supports are then moved into the desired position until the fasteners click into the holes in the track. The final fixing of the roof transport system takes place with a clamping device.

The support system can be secured with locks against theft. The stable construction of the system allows a roof load of 220 lbs.

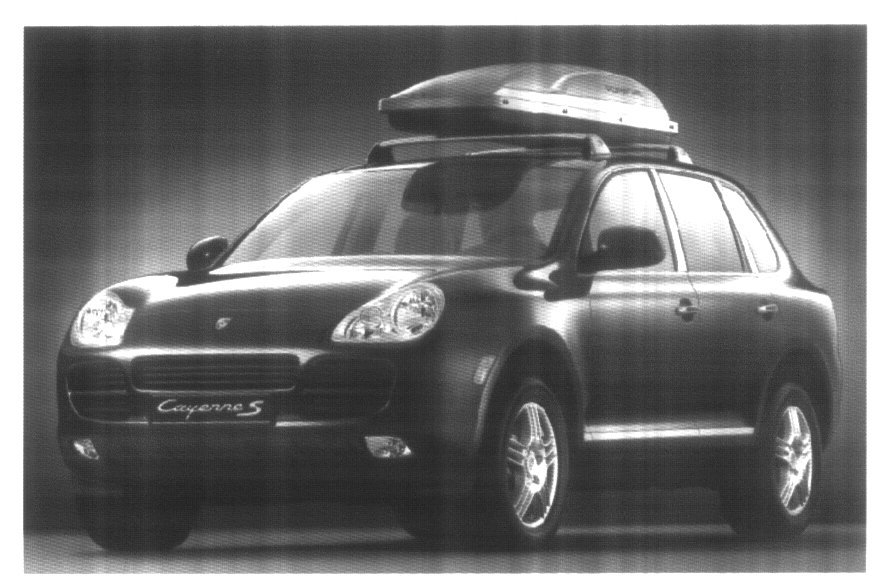

The modules currently offered for roof transport Systems by Porsche, can also be used with the Cayenne. For vehicles with a sunroof, all openings can still be used, even when the roof transport system is installed.
