Connector Pin Assignment - Telephone/Telematics
Connector pin assignment - telephone/telematics

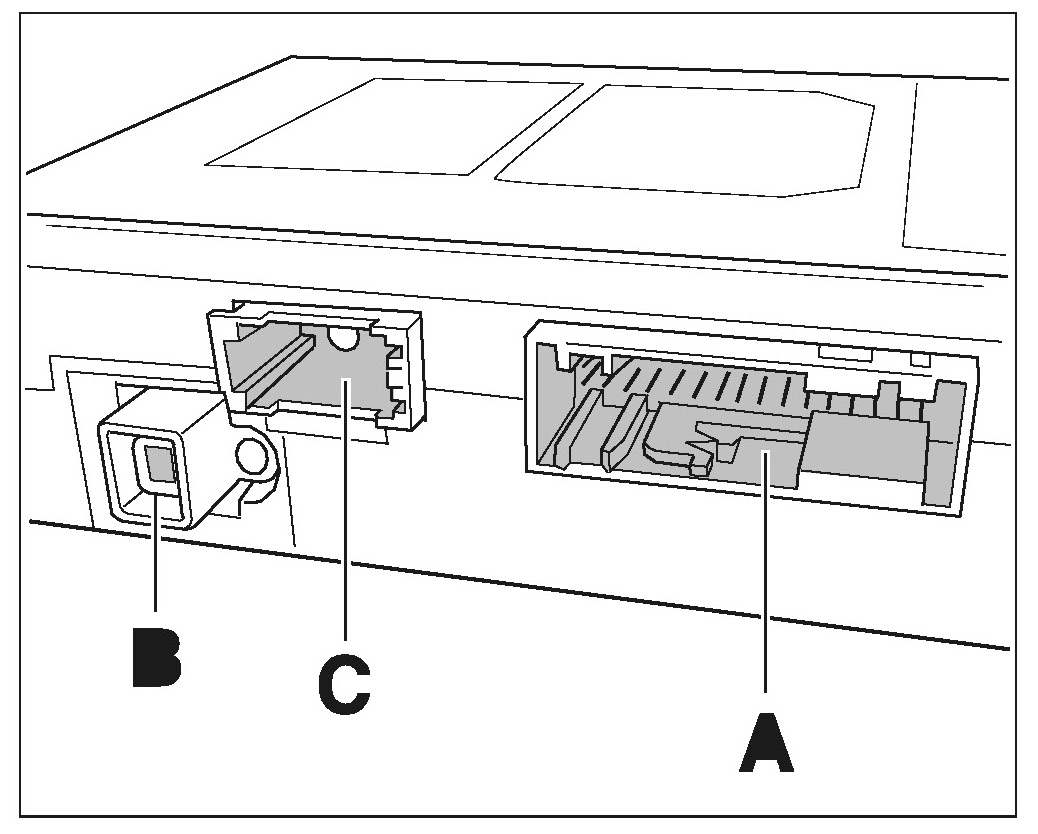

Connector pin assignment

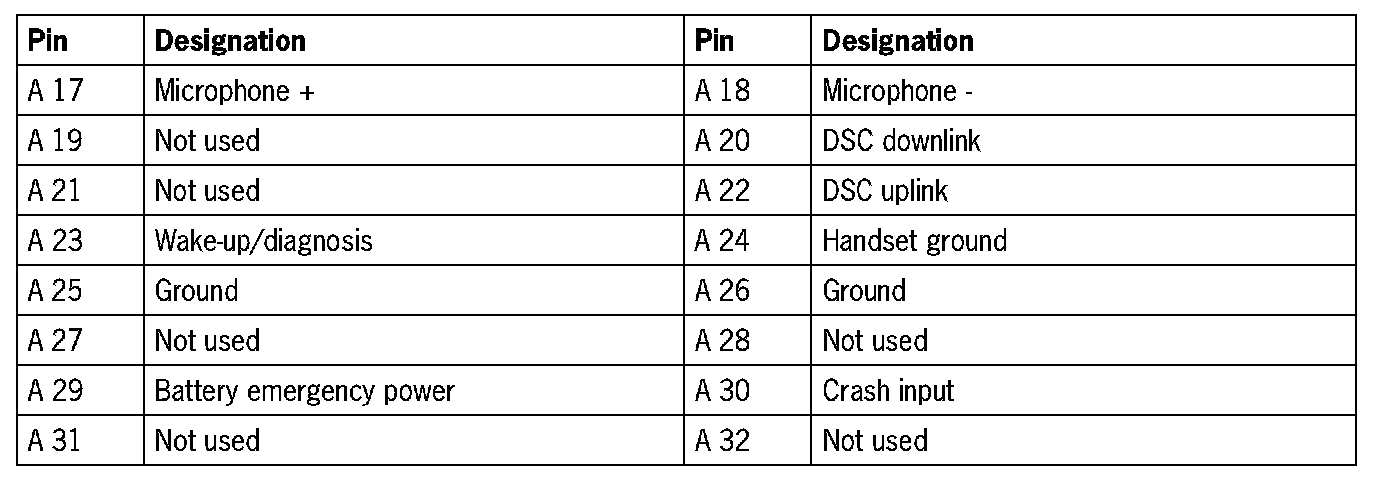

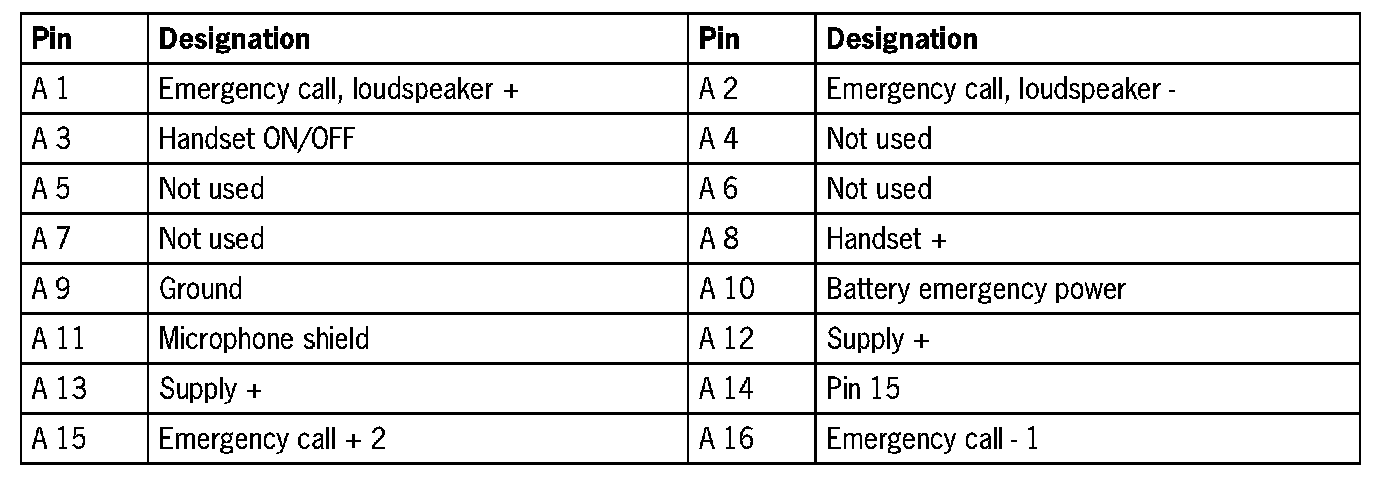

Connector A

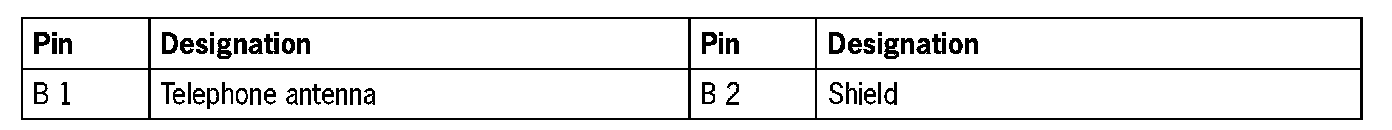

Connector B

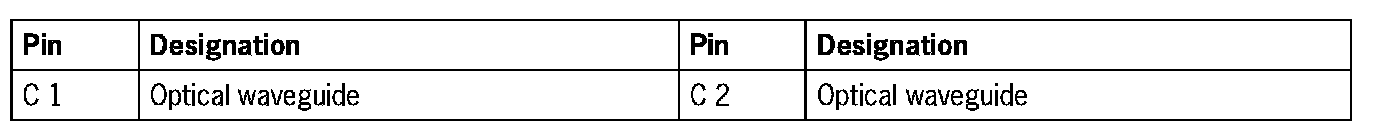

Connector C
