Removing and Installing Air Vent At Door

Removing and Installing Door Window Air Vent

Removing Door Window Air Vent

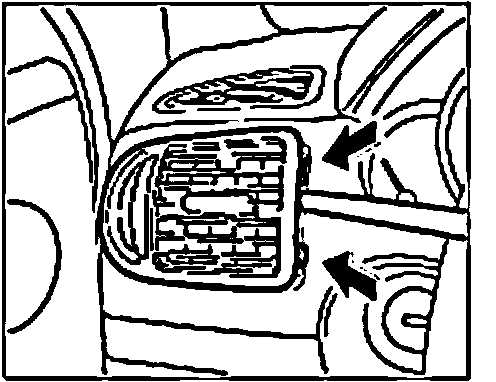

1. Carefully apply plastic spatula at the side between air vent and dashboard and prise out.
2. Press the electrical plug connection and pull off the plug.

Installing Door Window Air Vent
1. Connect electrical plug connection.
2. Insert air vent from the outer side and push into dashboard. Air vent must be felt to engage.
