Air Conditioner / Removing and Installing Blower Regulator

Removing and Installing Blower Regulator







Removing Blower Regulator

CAUTION: Danger of damage and injury.
- Remove ignition key.
- Pull off the plug contacts on the switch before removing the blower regulator.
- Remove glove compartment.

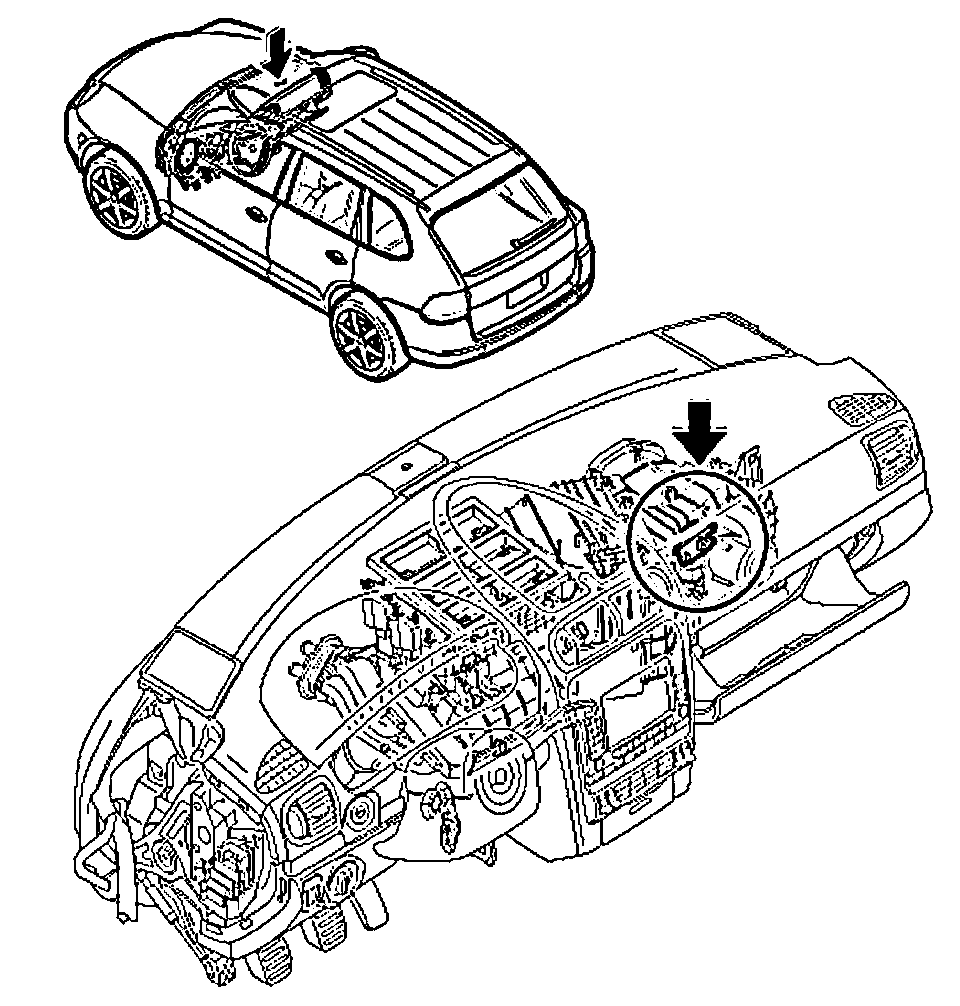

NOTE: The blower regulator is located in the air-conditioning unit beside the blower.

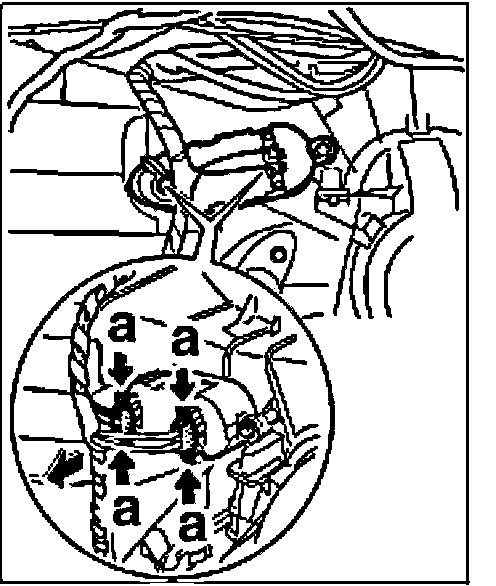

1. Press the lock of both plugs -a- and pull off the plugs from the blower regulator.

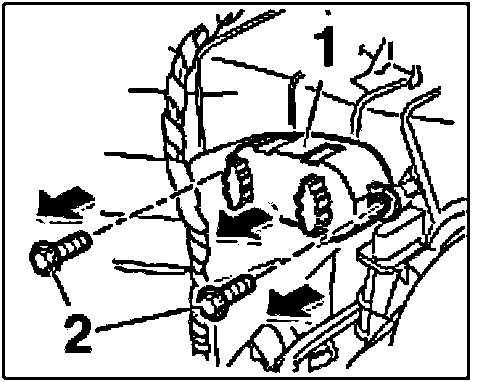

2. Unscrew both fastening screws -2- and pull out the blower regulator -1-.

Installing Blower Regulator

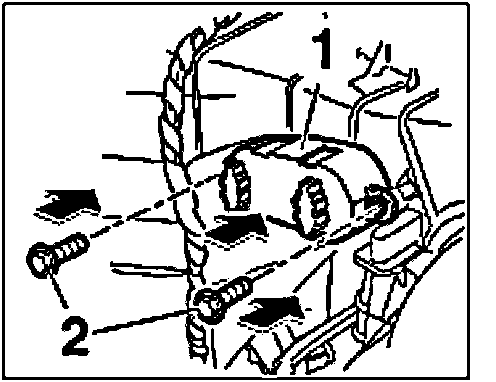

1. Push blower regulator -1- into the air-conditioning unit and fasten with both fastening screws -2-.

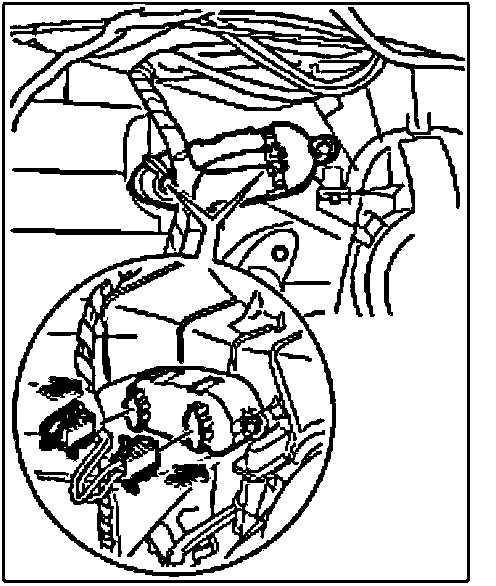

2. Insert the two electrical plugs in the blower regulator until they engage audibly.
3. Switch on the ignition and regulate the blower.

Install glove compartment.
