Auxiliary Air Conditioning System / Removing and Installing Blower Regulator

Removing and Installing Blower Regulator







Removing Blower Regulator

CAUTION: Danger of damage and injury:
- Remove ignition key.
- First pull off the plug contacts on the switch before the blower regulator is removed.

1. Remove the side lining at rear.

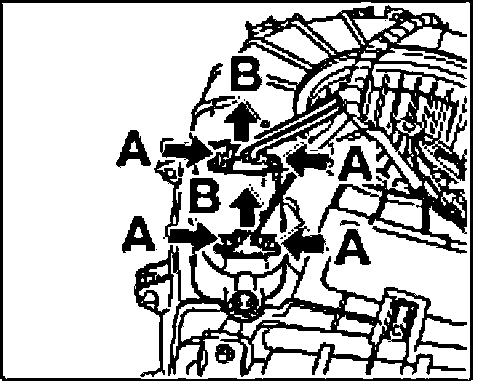

2. Release both plugs -A arrows- and pull off -arrow B-.

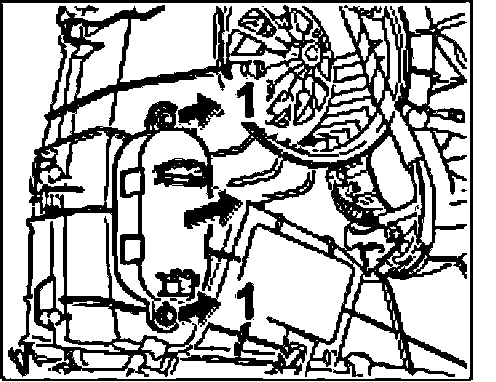

3. Unscrew both fastening screws -1- and pull out the blower regulator -arrow-.

Installing Blower Regulator

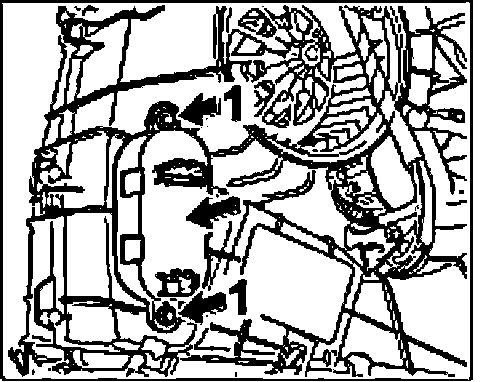

1. Insert the blower regulator -arrow- and screw down with the fastening screws -1-.

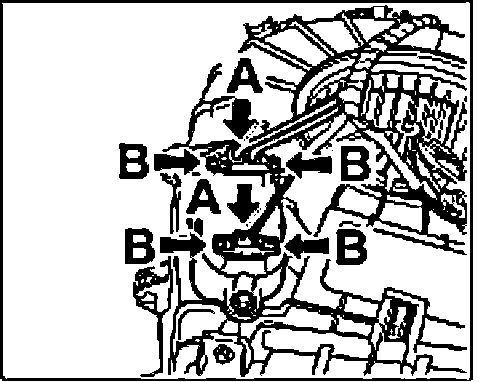

2. Insert both plugs -A arrows- until locking tabs -B- are felt to engage.
3. Mount the side-panel lining at rear.

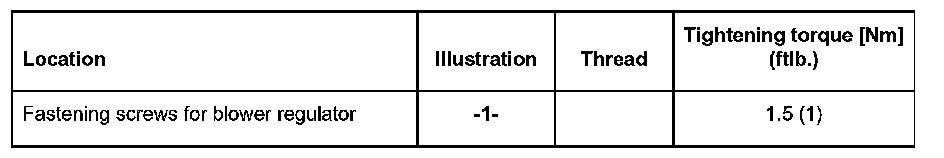

Tightening Torques
