Auxiliary Air Conditioning System

Removing and Installing Blower Motor







Removing Blower Motor
1. Remove auxiliary air-conditioning unit.

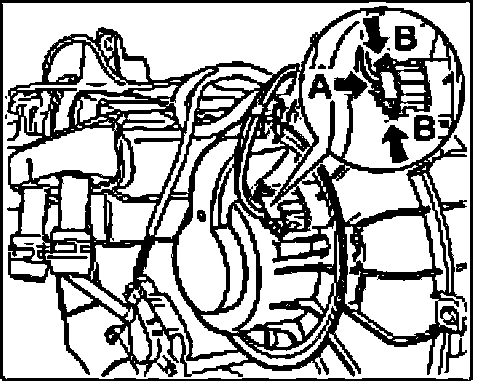

2. Unlock the plug -A arrows- and pull it out -arrow B-.

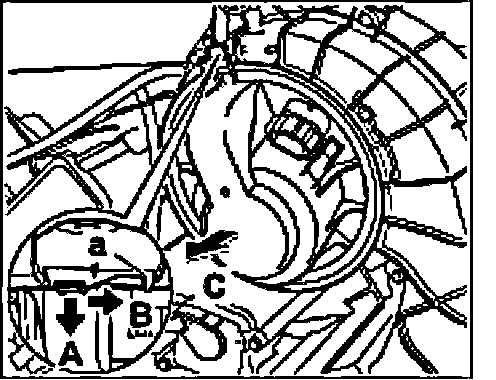

3. Release the locking tab -arrow A- and twist the blower motor up to the stop -a- -arrow B-.
4. Remove blower motor -arrow C-.

Installing Blower Motor

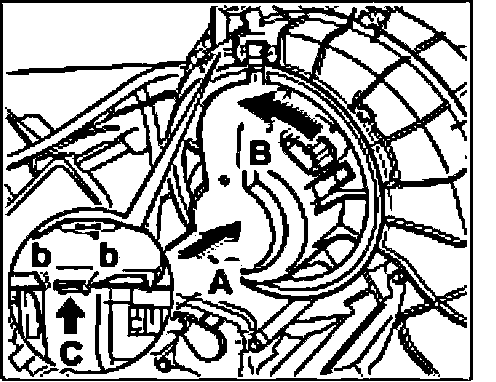

1. Insert the blower motor -arrow A- and twist to the left -arrow B-, until the locking hook can be felt to engage in the twist lock -b- -arrow C-.







2. Press in plug -arrow A- until locking tabs -B- are felt to engage.
3. Install auxiliary air-conditioning unit.
