Ventilation/Removing and Installing Heater/Fresh-Air Blower Motor

Removing and Installing Heater/Fresh-Air Blower Motor







Removing Heater/Fresh-Air Blower Motor

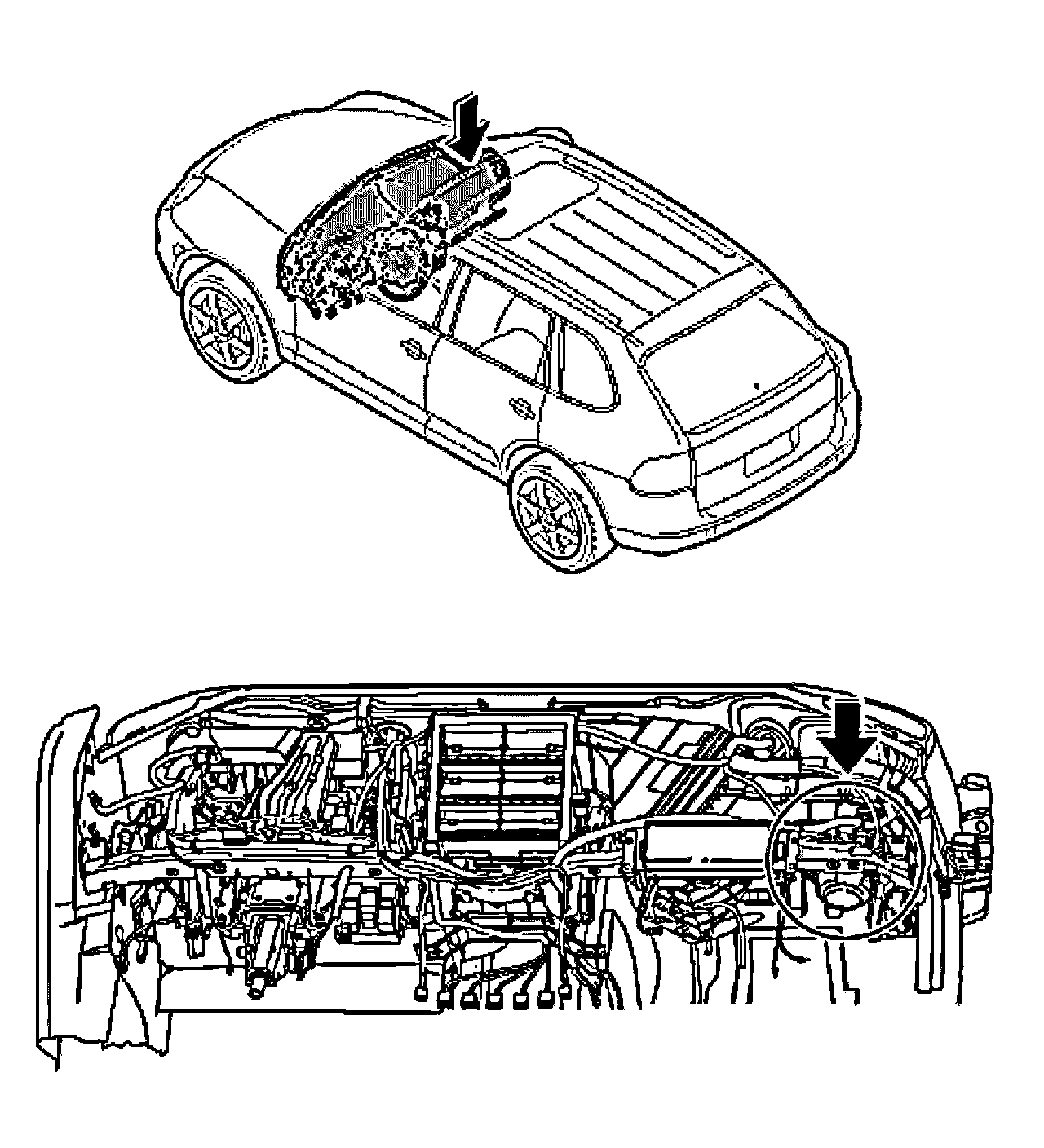

- Remove cover under right instrument panel.
- Set blower to position 0 on climate control and remove ignition key.

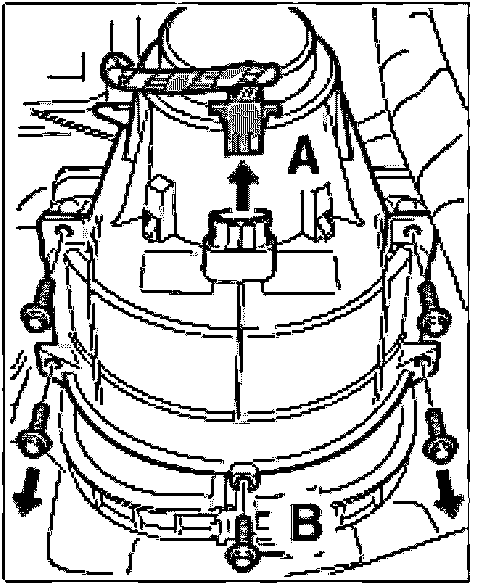

1. Press the plug -A- together and pull off.
2. Remove the five fastening screws -B-.

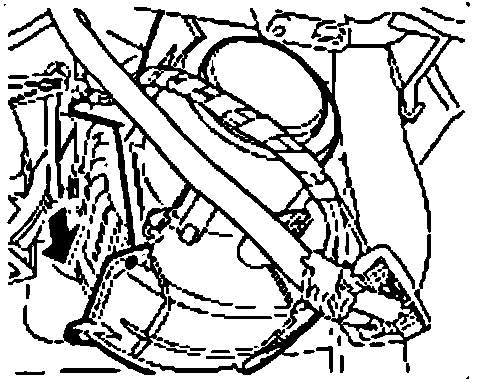

3. Lift the electrical leads to one side and remove the blower in downward direction.

Installing Heater/Fresh-Air Blower Motor

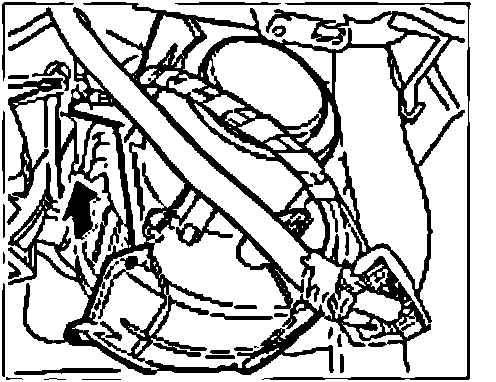

1. Lift the electrical leads to one side and push blower into housing from underneath.







2. Hold the blower, screw in the five fastening screws -B- and tighten.
3. Insert the electrical plug connection until the plug can be felt to engage.
4. Switch on ignition and the blower in stages on the heating and fresh-air control. Check the function of the blower.

- Install cover under right instrument panel.
