Cabin Air Filter / Purifier: Service and Repair

Particle Filter: Replacing the Filter Element







Removing Particle Filter

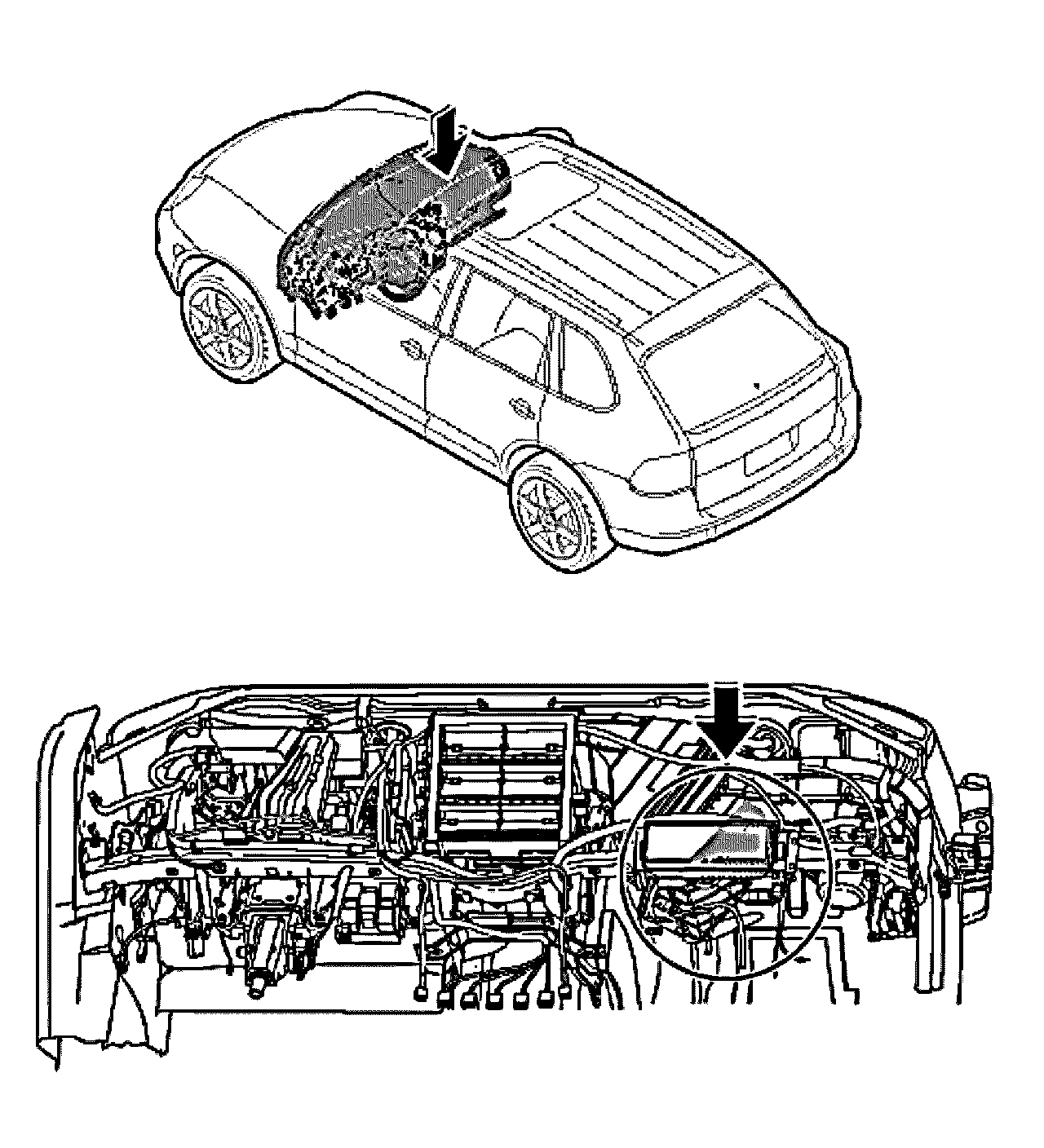

- Remove cover under right instrument panel.

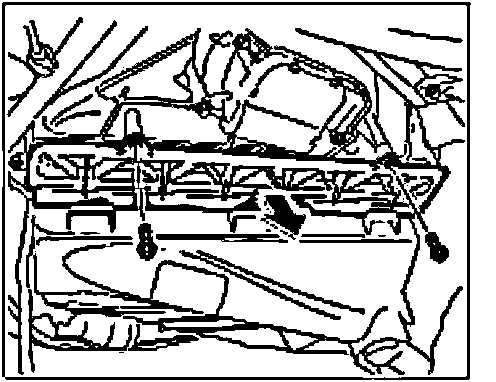

1. Unscrew the two fastening screws and remove cover.

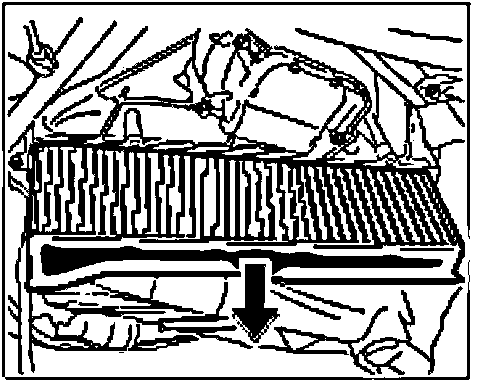

2. Pull out filter downwards.

Installing Particle Filter







1. Position filter from underneath and carefully push it into the air-conditioning unit housing.

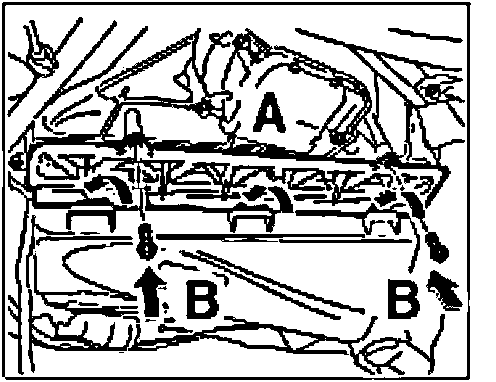

2. Engage cover -A- and screw in the fastening screws -B-.

- Install cover under right instrument panel.
