Removing and Installing Control Unit For Auxiliary Air Conditioning System

Removing and Installing Control Unit For Auxiliary Air Conditioning System

NOTE: The control unit for the auxiliary air conditioning system is located in the center console, back seat area.

Removing Control Unit For Auxiliary Air Conditioning System

NOTE: The ignition must be switched off and the ignition key removed before the control unit for the auxiliary air conditioning system can be removed.

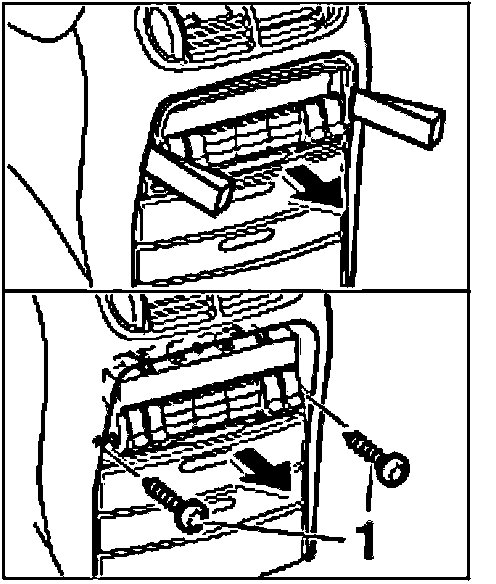

1. Use a plastic spatula to carefully unclip the covering frame, left and right.

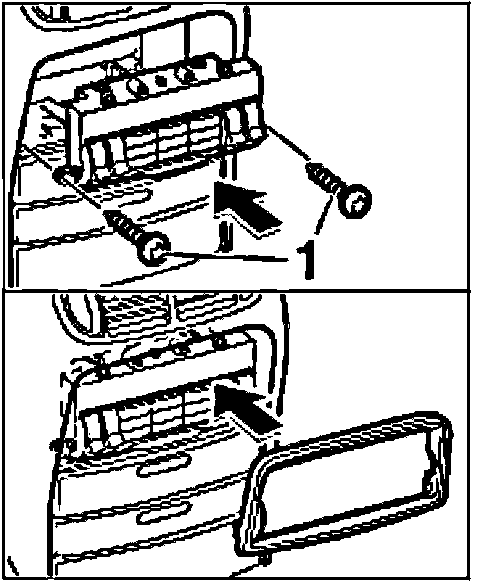

2. Unscrew both fastening screws -1-.

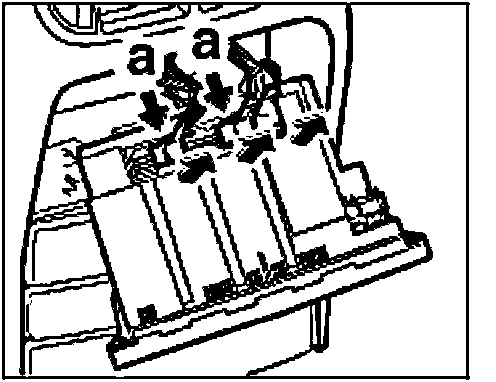

3. Press in latch of electrical plugs -a- and pull the plugs up and off.

Installing the Control Unit For the Auxiliary Air Conditioning System







1. Press electrical plugs into control unit until they are felt to engage.

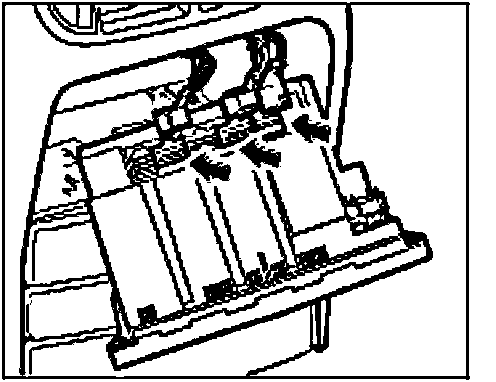

2. Carefully slide the control unit into the installation slot, paying attention to the electrical leads.
3. Screw in both fastening screws -1-.
4. Fit the covering frame and press into place until it is felt to engage.
