Air Conditioner

Evaporator Temperature Sensor







NOTE: Before removing the temperature sensors/interior temperature sensors, switch off the ignition and remove the ignition key.

- Remove glove compartment.

1. Removing the evaporator temperature sensor

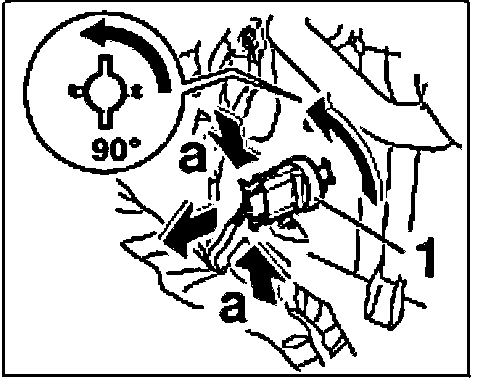

a. Turn temperature sensor -1- 90° and remove from the heating/air-conditioning unit.
b. Press latch on the electrical connector for the sensor -1- -a- and pull off the connector.







2. Installing the evaporator temperature sensor.
a. Insert the electric plug into the sensor -1- until it clicks into place.

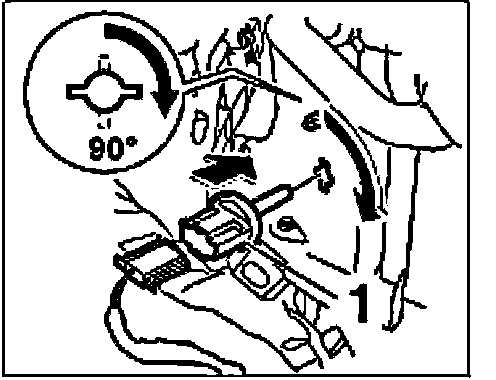

b. Slide in the temperature sensor -1- into the heating/air-conditioning unit and turn 90°.

- Install glove compartment.
