Air Conditioner / Center Temperature Sensor / Side Vents Left Side

Centre Temperature Sensor/Side Vents Left Side







NOTE: Before removing the temperature sensors/interior temperature sensors, switch off the ignition and remove the ignition key.


- Removing servomotor for air conditioning.

1. Removing centre temperature sensor/side vents left side.

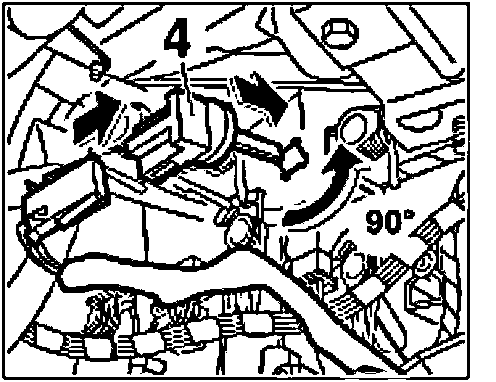

a. Turn temperature sensor -4- 90° and remove from the heating/air-conditioning unit.

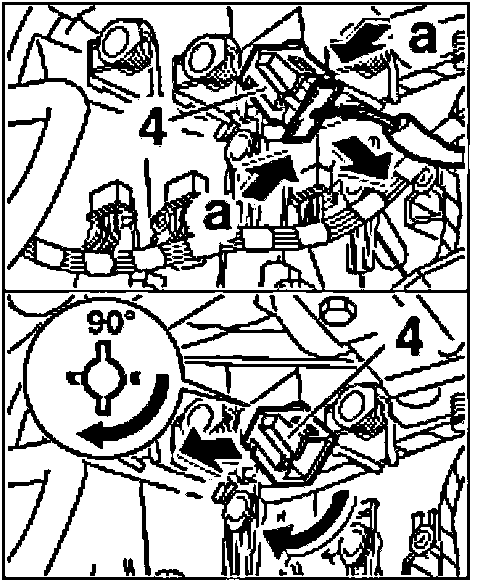

b. Press latch on the electrical connector for the sensor -4- -a- and pull off the connector.

2. Installing the centre temperature sensor/side vents left side.







a. Insert the electric plug into the sensor -4- until it clicks into place.
b. Slide in the temperature sensor -4- into the heating/air-conditioning unit and turn 90°.

- Installing the servomotor for air conditioning.
